Clamp End Butterfly Valve (BFVTC)

  • Material: 316L forged stainless steel body and disc
  • 100% hydraulic tested / 100% inspected
  • Field serviceable (no special tools required)
  • Vacuum rating: 0.4 inches Hg at 68°F
  • Operating temperature range: 15° to 200° F
  • Seat options: silicone, EPDM, FKM
  • Low resistance to flow
  • Bi-directional flow
  • Polyacetal bushings for the valve disc for reduced friction and increased life cycle
  • All wetted surfaces are sanitary finished to ≤ 32Ra
  • Repair Kits Available
  • Lockout / Tagout handle
Clear
SKU: BFVTC Categories: ,

Clamp End Butterfly Valve (BFVTC)

Product Data Table

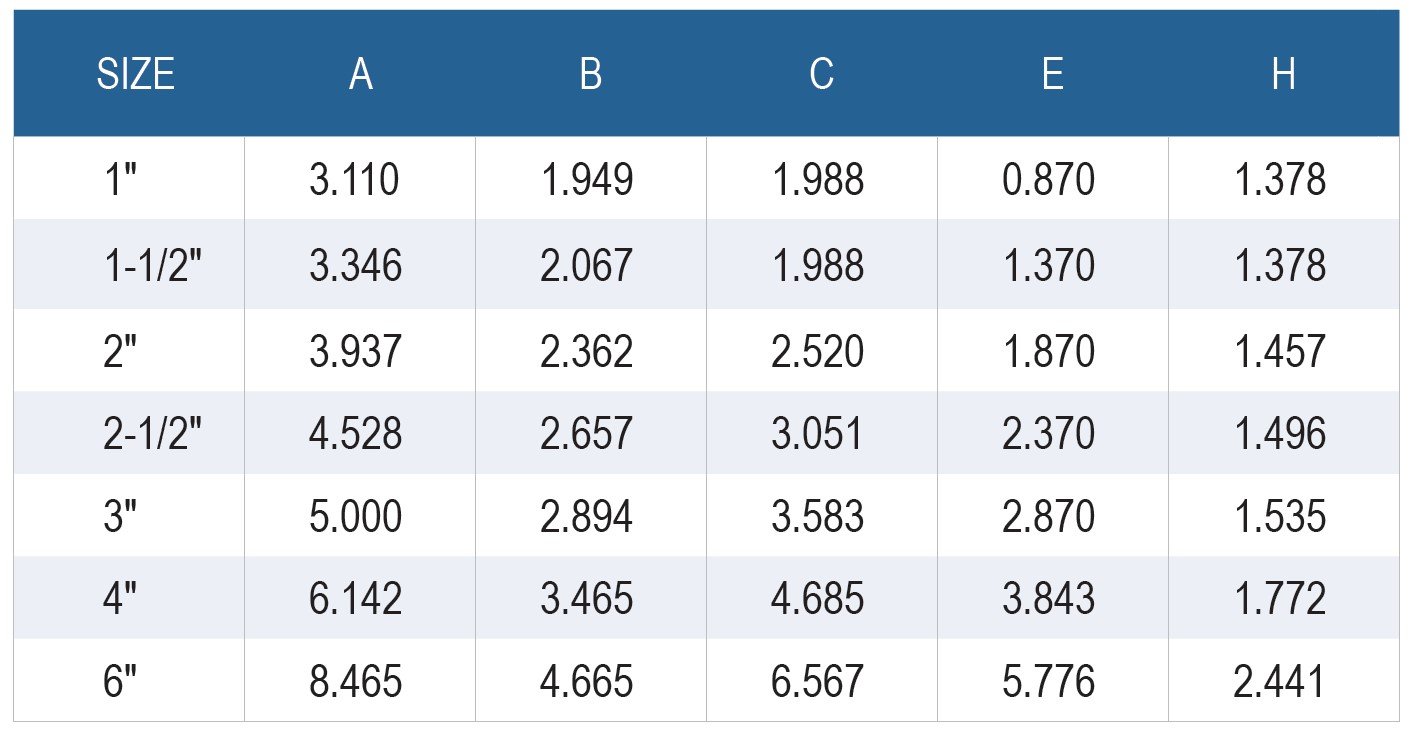

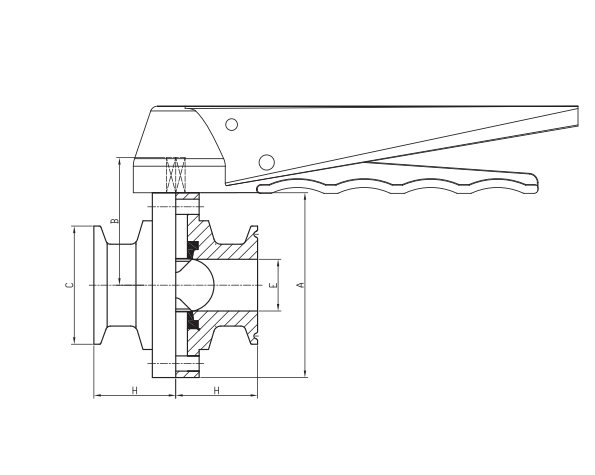

Dimensional Data

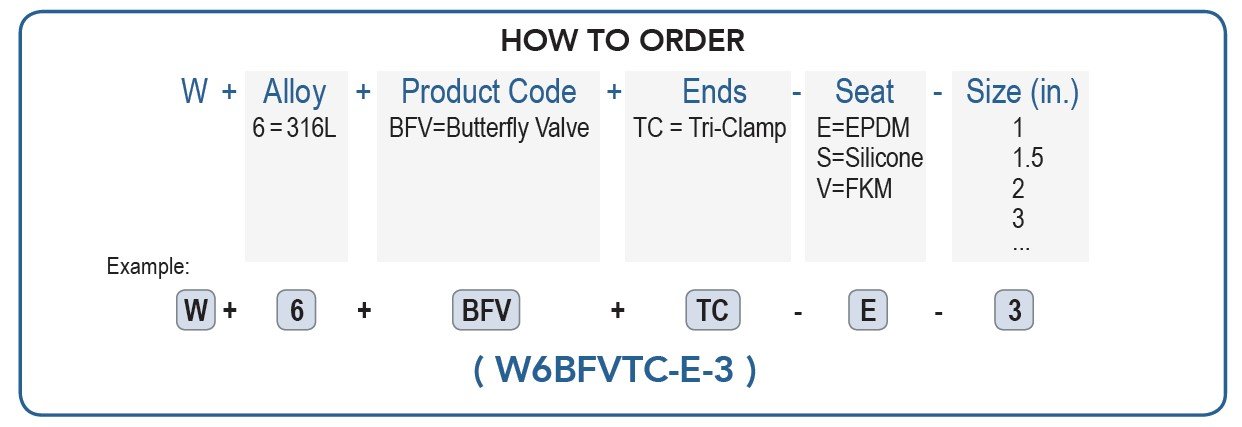

Butterfly Valve Part Numbers

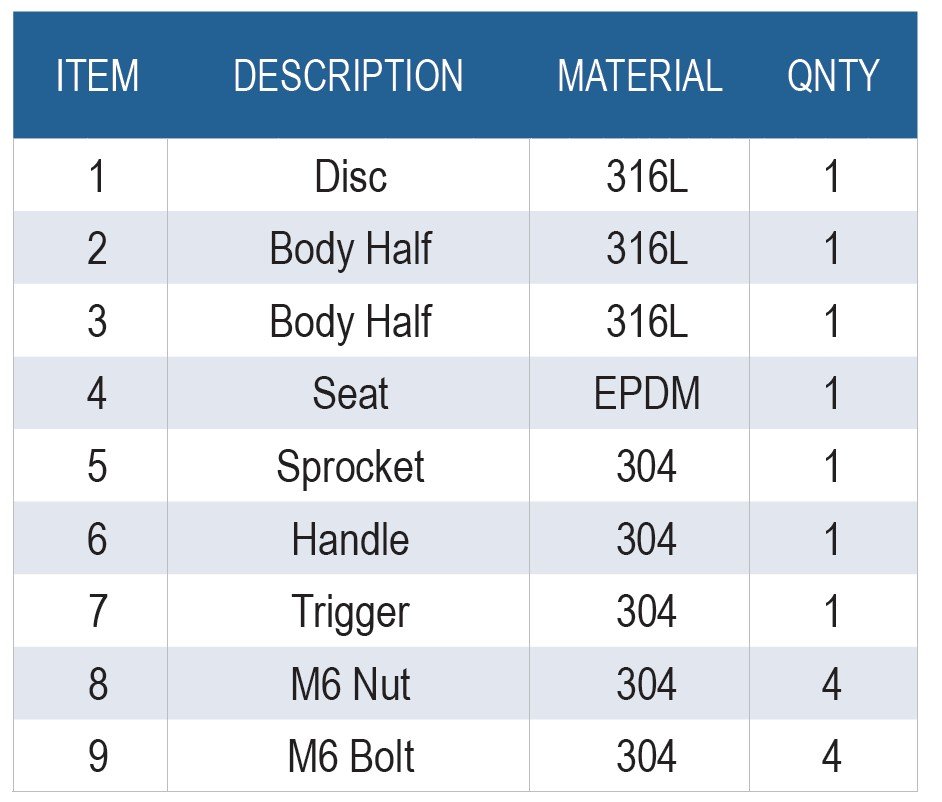

Exploded Drawing Legend

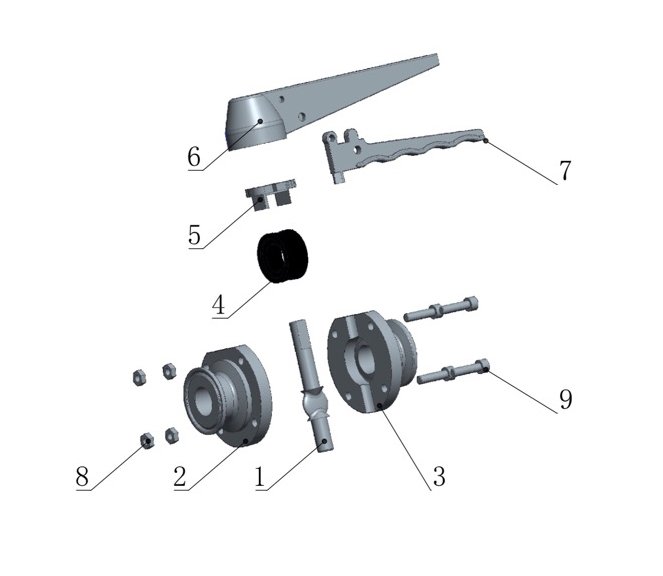

Exploded Drawing
