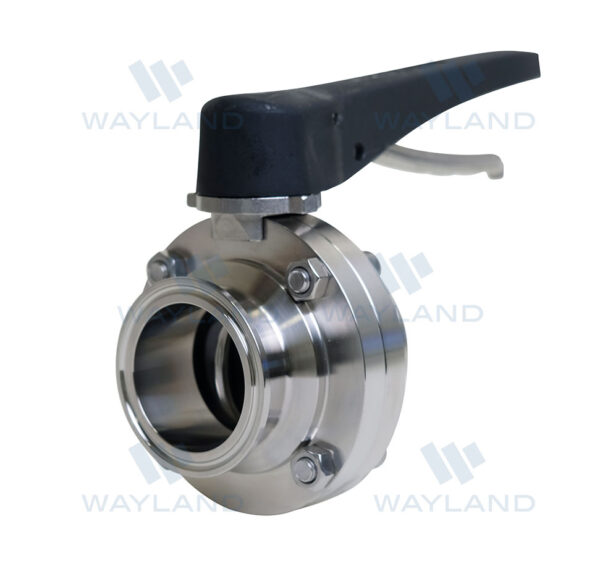

Clamp End Butterfly Valve Plastic Trigger Handle (BFVTC-TP)
- Material: 304 forged stainless steel body and disc
- 100% hydraulic tested / 100% inspected
- Field serviceable (no special tools required)
- Vacuum rating: 0.4 inches Hg at 68°F
- Seat options: EPDM (standard), Silicone, FKM
- 12 position Trigger handle
- Low resistance to flow
- Bi-directional flow
- Polyacetal bushings for the valve disc for reduced friction and increased life cycle
- All wetted surfaces are sanitary finished to 32Ra minimum
- Lockout / Tagout handle
- Repair Kits Available
- Butterfly Valve Specifications Sheet (PDF Download)
Clamp End Butterfly Valve Plastic Trigger Handle (BFVTC-TP)

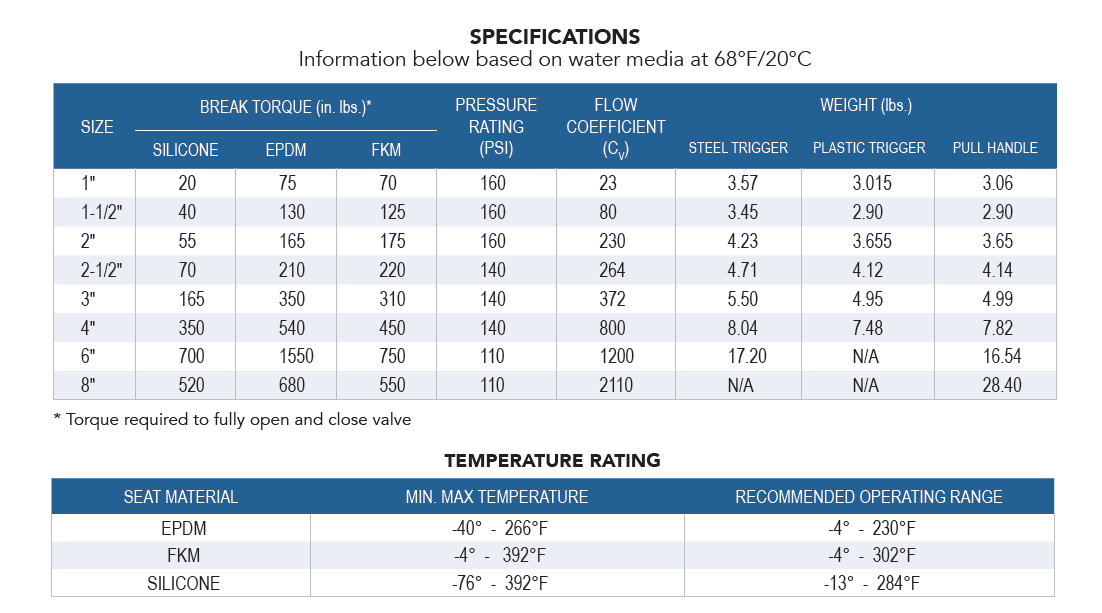

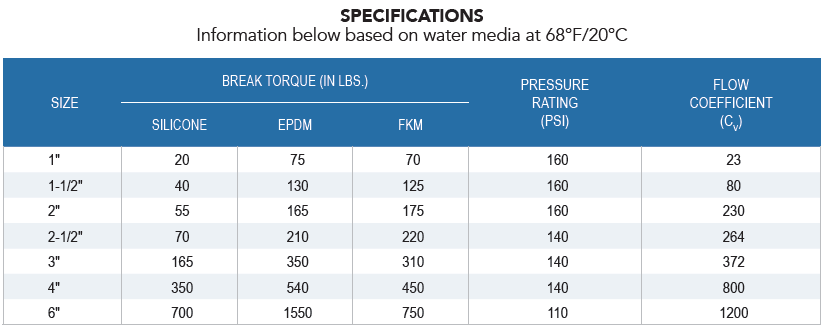

Product Data Table

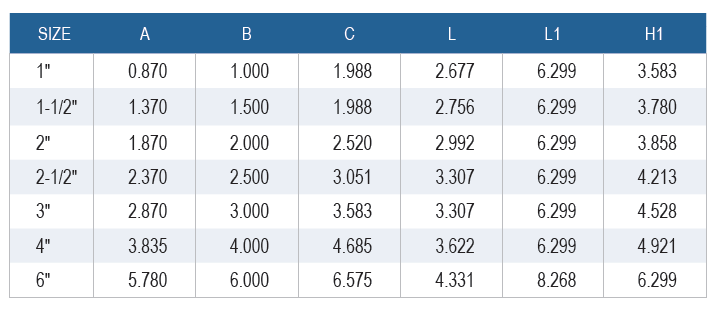

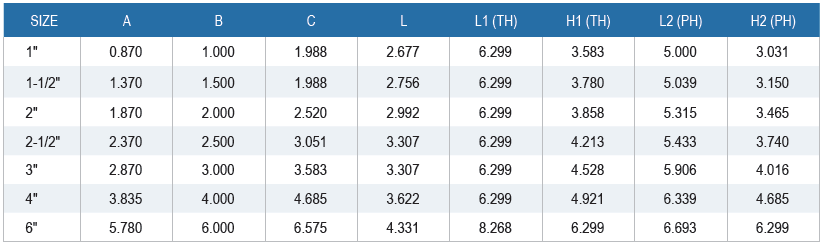

Dimensional Data

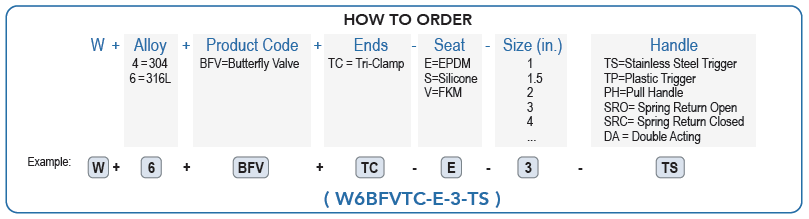

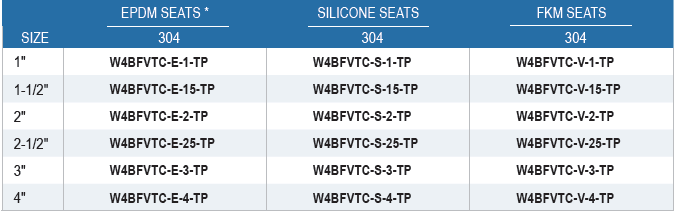

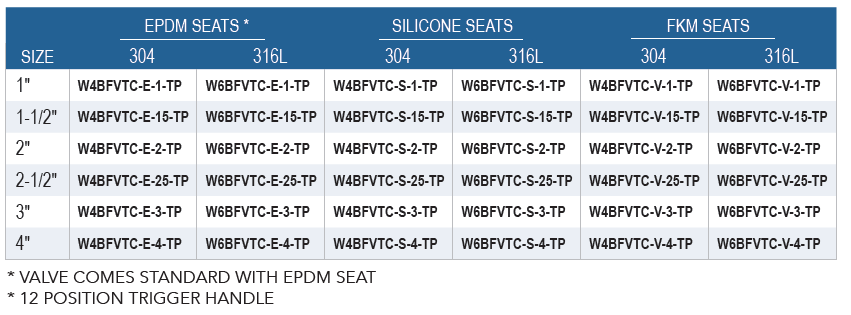

Butterfly Valve Part Numbers

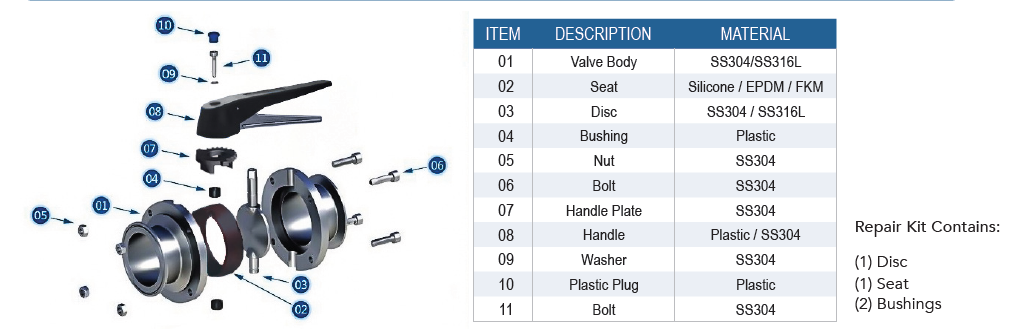

Butterfly Valve Exploded Drawing & Legend
