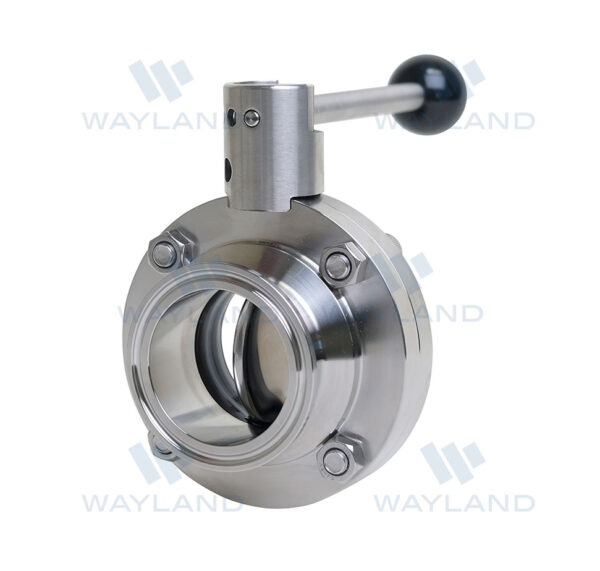

Clamp End Butterfly Valve Pull Handle (BFVTC-PH)

  • Material: 304 or 316L forged stainless steel body and disc
  • 100% hydraulic tested / 100% inspected
  • Field serviceable (no special tools required)
  • Vacuum rating: 0.4 inches Hg at 68°F
  • Seat options: EPDM (standard), Silicone, FKM
  • 4 position pull handle
  • Low resistance to flow
  • Bi-directional flow
  • Polyacetal bushings for the valve disc for reduced friction and increased life cycle
  • All wetted surfaces are sanitary finished to 32Ra minimum
  • Lockout / Tagout handle
  • Repair Kits Available
  • Butterfly Valve Specifications Sheet  (PDF Download)
Clear
SKU: BFVTC-PH Categories: ,

Clamp End Butterfly Valve Pull Handle (BFVTC-PH)

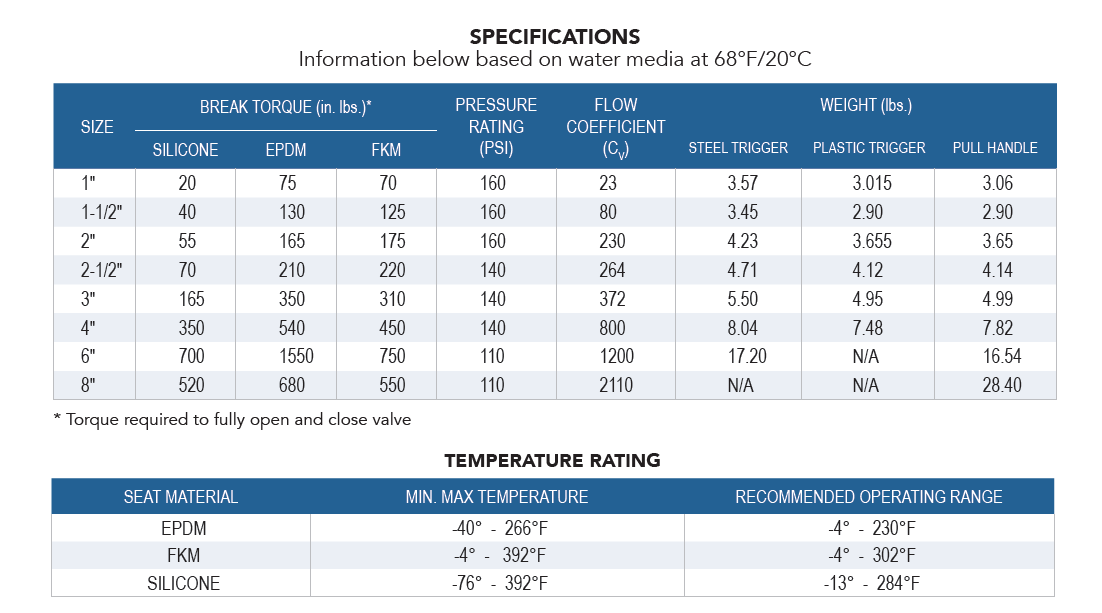

Product Data Table

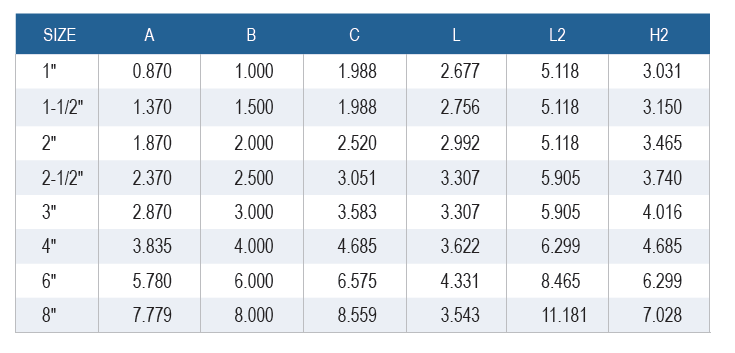

Dimensional Data

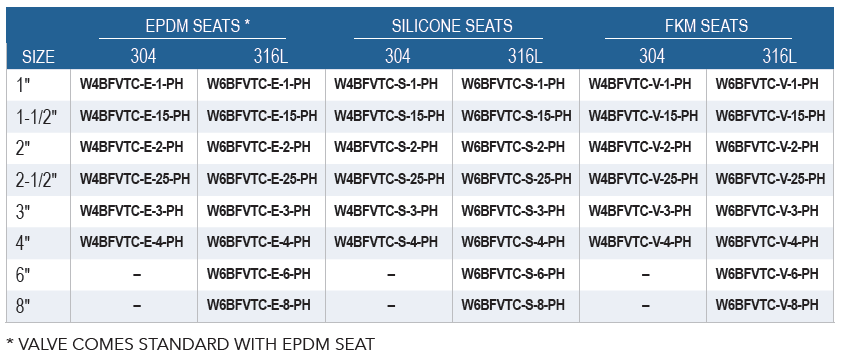

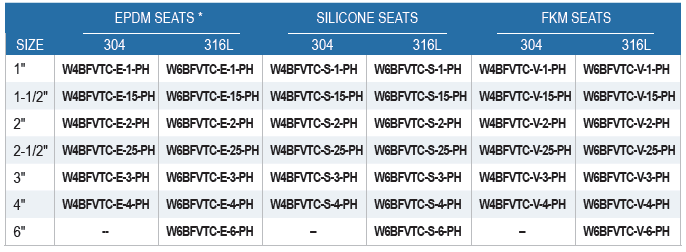

Butterfly Valve Part Numbers

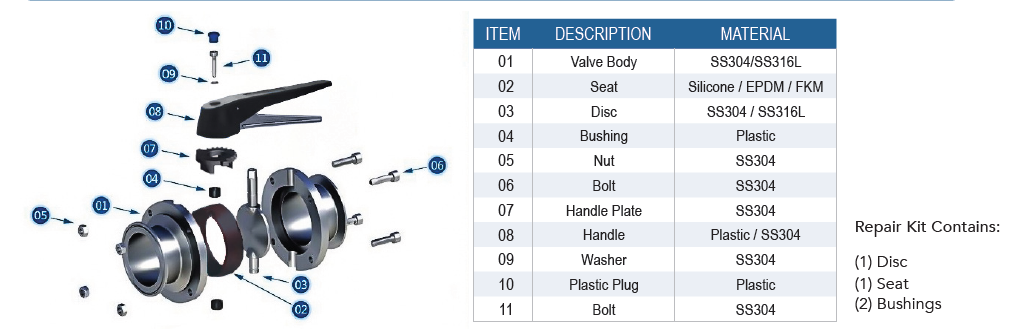

Butterfly Valve Exploded Drawing & Legend
