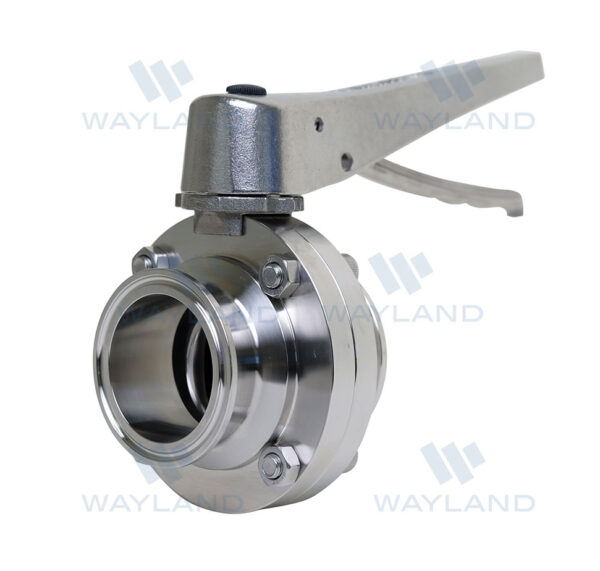

Clamp End Butterfly Valve SS Trigger Handle (BFVTC-TS)

  • Material: 316L forged stainless steel body and disc
  • 100% hydraulic tested / 100% inspected
  • Field serviceable (no special tools required)
  • Vacuum rating: 0.4 inches Hg at 68°F
  • Seat options: EPDM (standard), Silicone, FKM
  • Low resistance to flow
  • Bi-directional flow
  • Polyacetal bushings for the valve disc for reduced friction and increased life cycle
  • All wetted surfaces are sanitary finished to 32Ra minimum
  • Lockout / Tagout handle
  • Repair Kits Available
  • Butterfly Valve Specifications Sheet  (PDF Download)
SKU: BFVTC-TS Categories: ,

Clamp End Butterfly Valve SS Trigger Handle (BFVTC-TS)

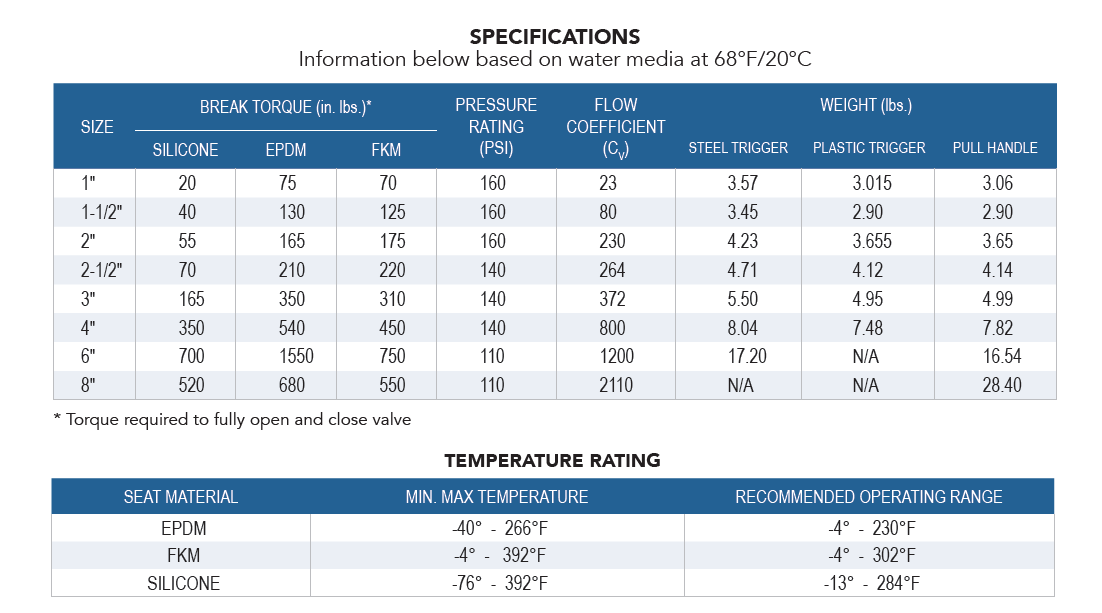

Product Data Table

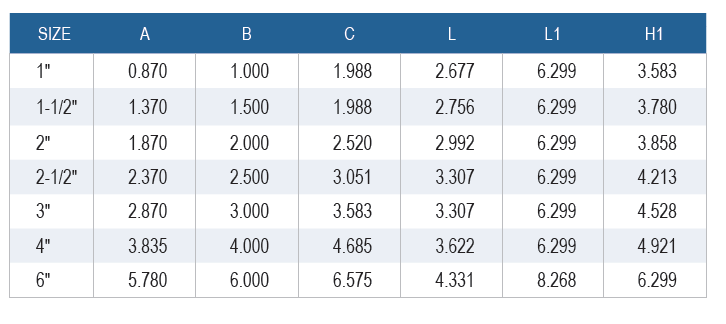

Dimensional Data

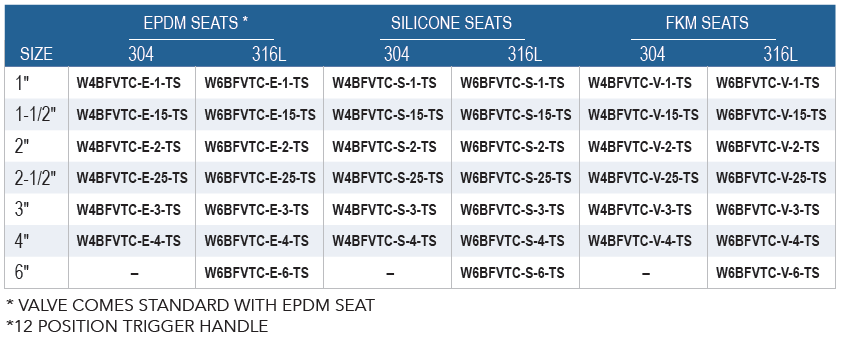

Butterfly Valve Part Numbers

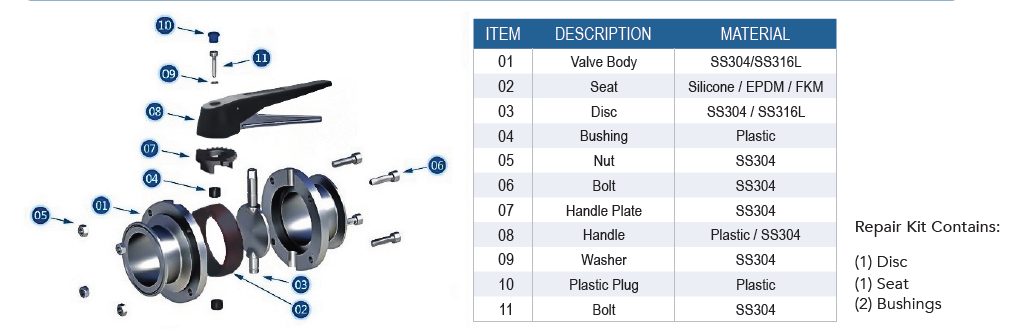

Butterfly Valve Exploded Drawing & Legend
