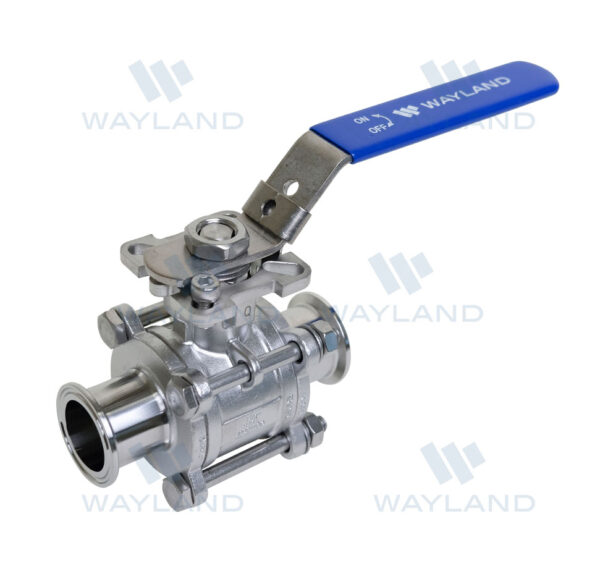

Encapsulated 2-Way Ball Valve (BVETC)

  • Material: CF8M (316L) stainless steel
  • ID polish is Ra 32 minimum
  • Blow-out proof stem
  • Full port design offers lower pressure drop and less turbulent flow
  • Precision stainless steel balls reduce torque and friction losses while extending seat life
  • ISO 5211 high mounting pad for direct mount automation
  • Maximum temperature: 356°F
  • Pressure Rating (Body):
    • 1/2″~ 2″ 1000PSI WOG
    • 2-1/2″~ 4″ 800PSI WOG
    • 6″ 700PSI WOG
  • Pressure Rating (Clamp End): 200PSI WOG
  • Live-loaded stem packing
  • Lockable handle can prevent accidental opening and closing
  • Fully encapsulated construction
  • 100% Tested
  • Repair Kits Available
Clear
SKU: BVETC Categories: ,

Encapsulated 2-Way Ball Valve (BVETC)

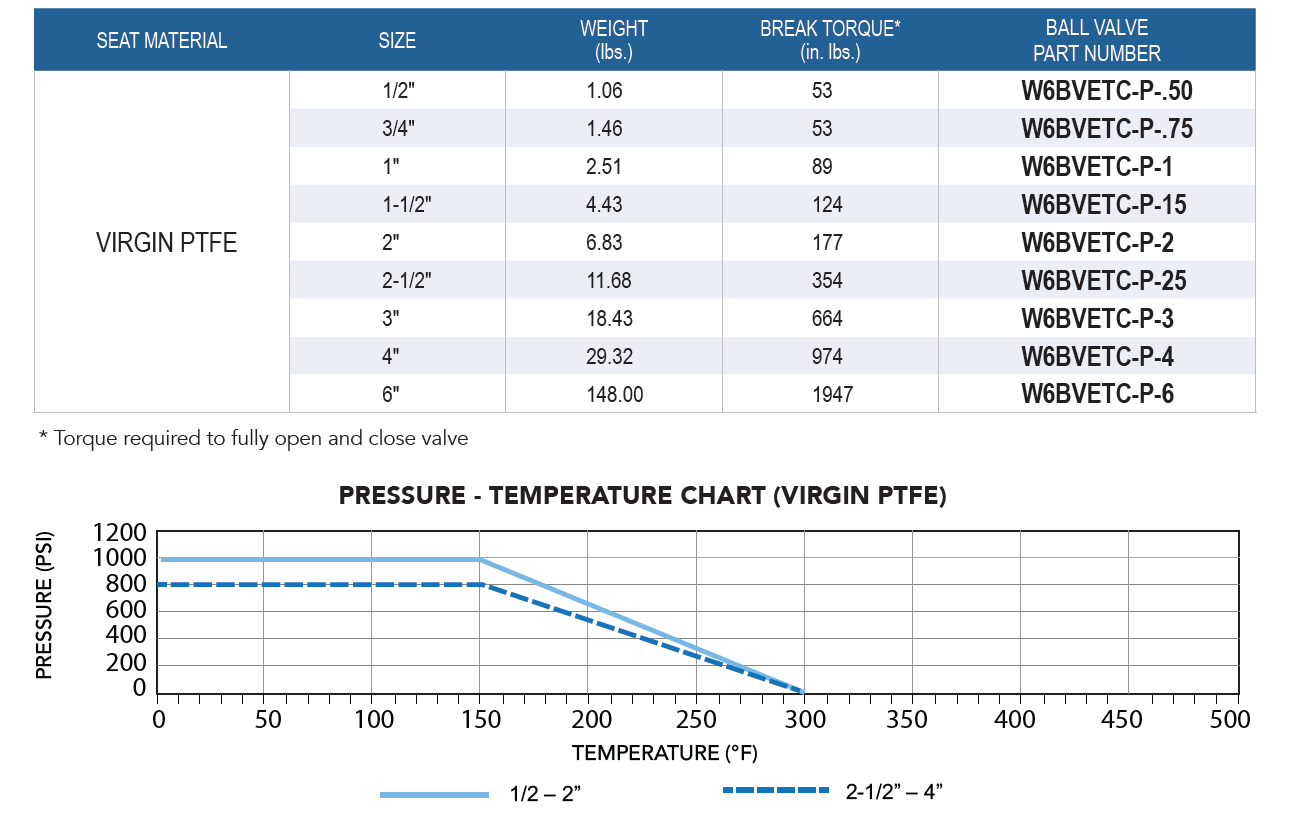

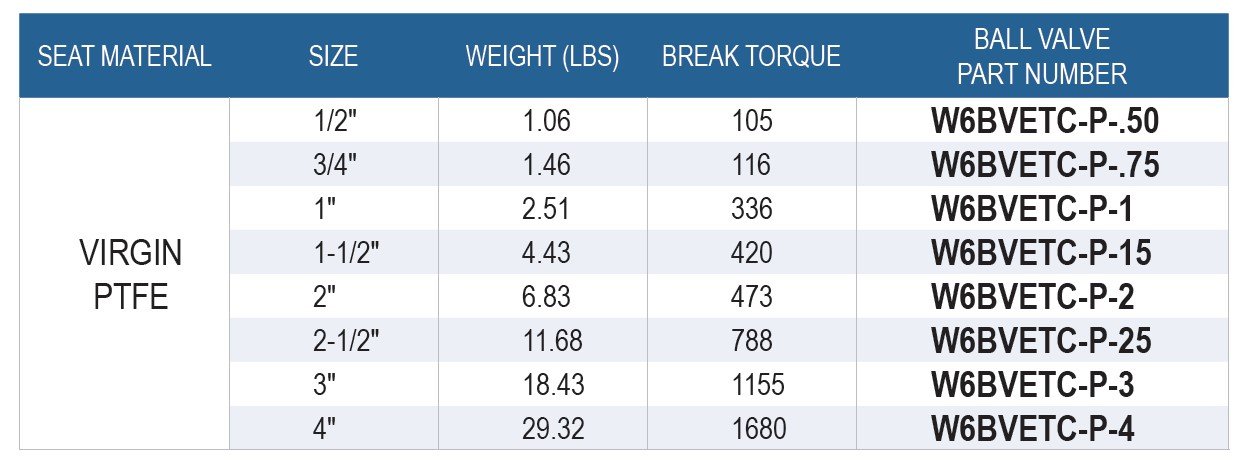

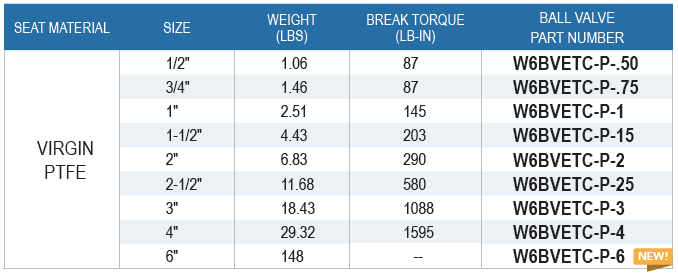

Product Data Table

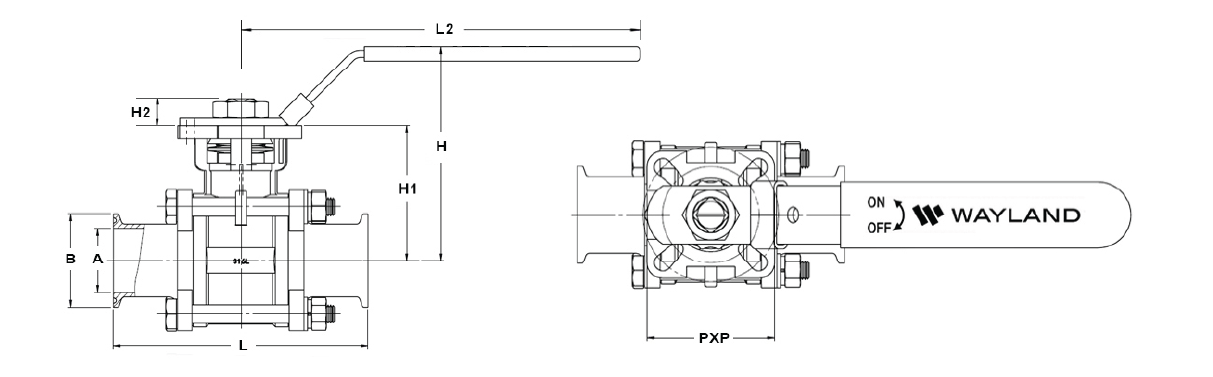

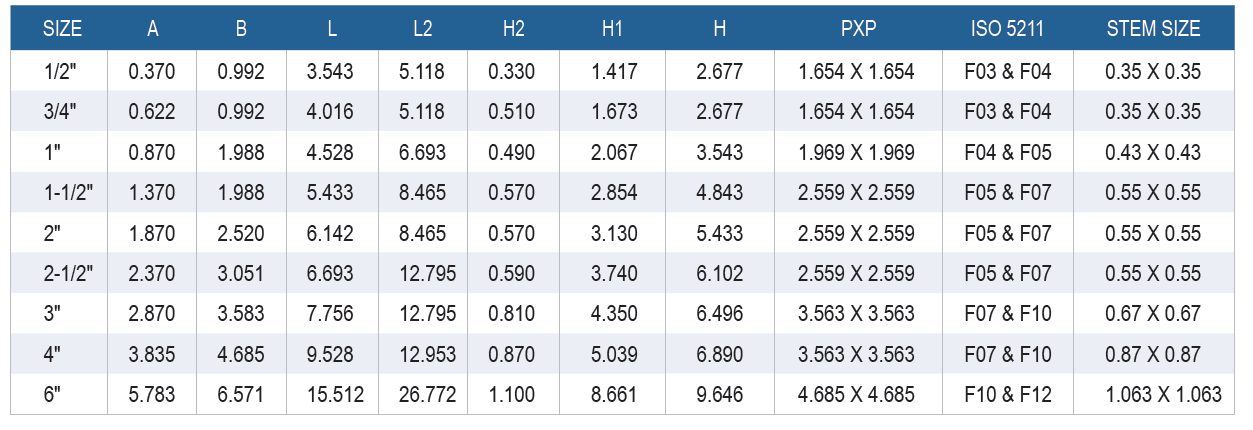

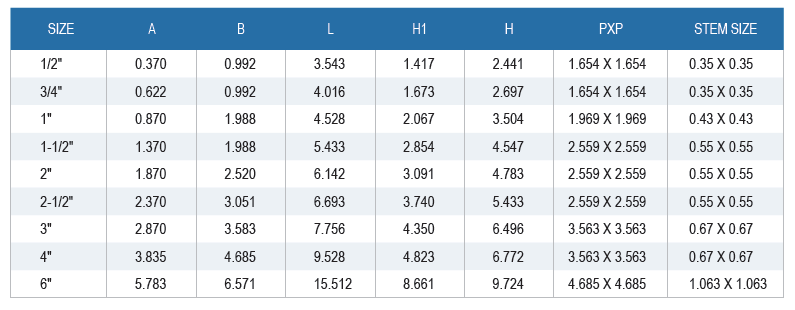

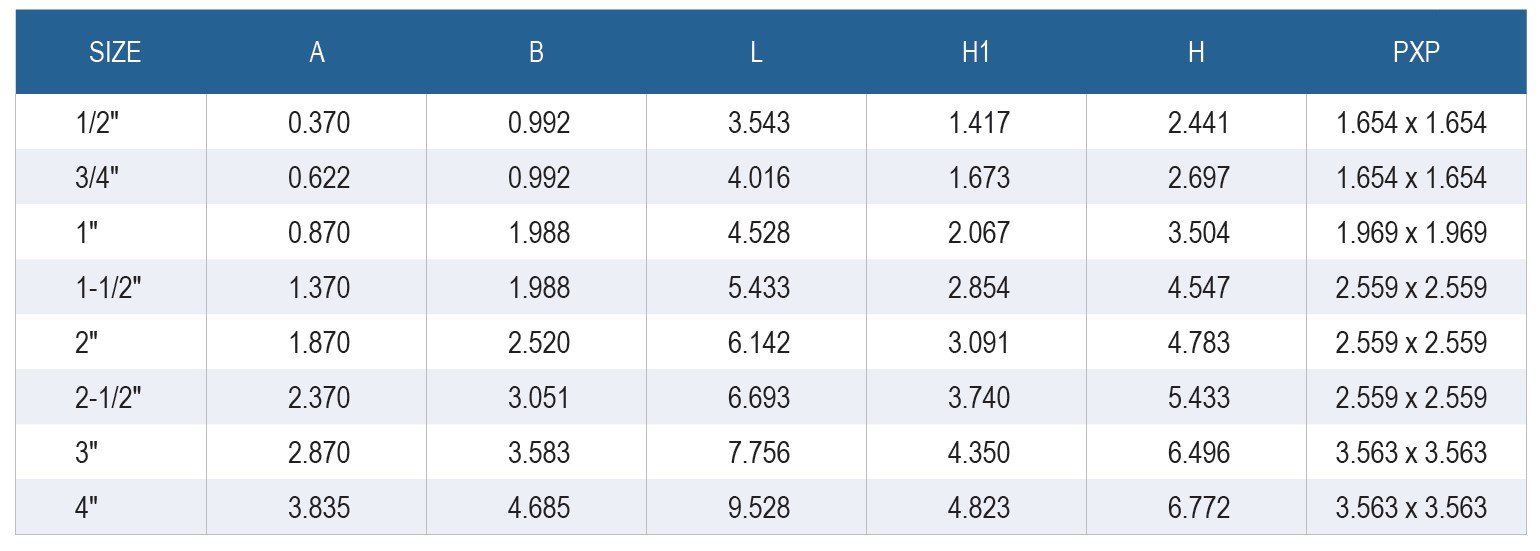

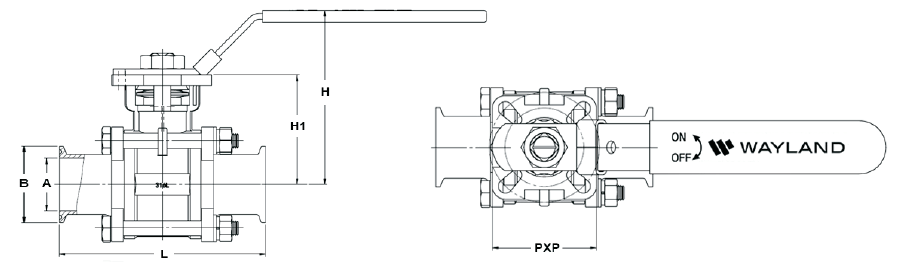

Dimensional Data

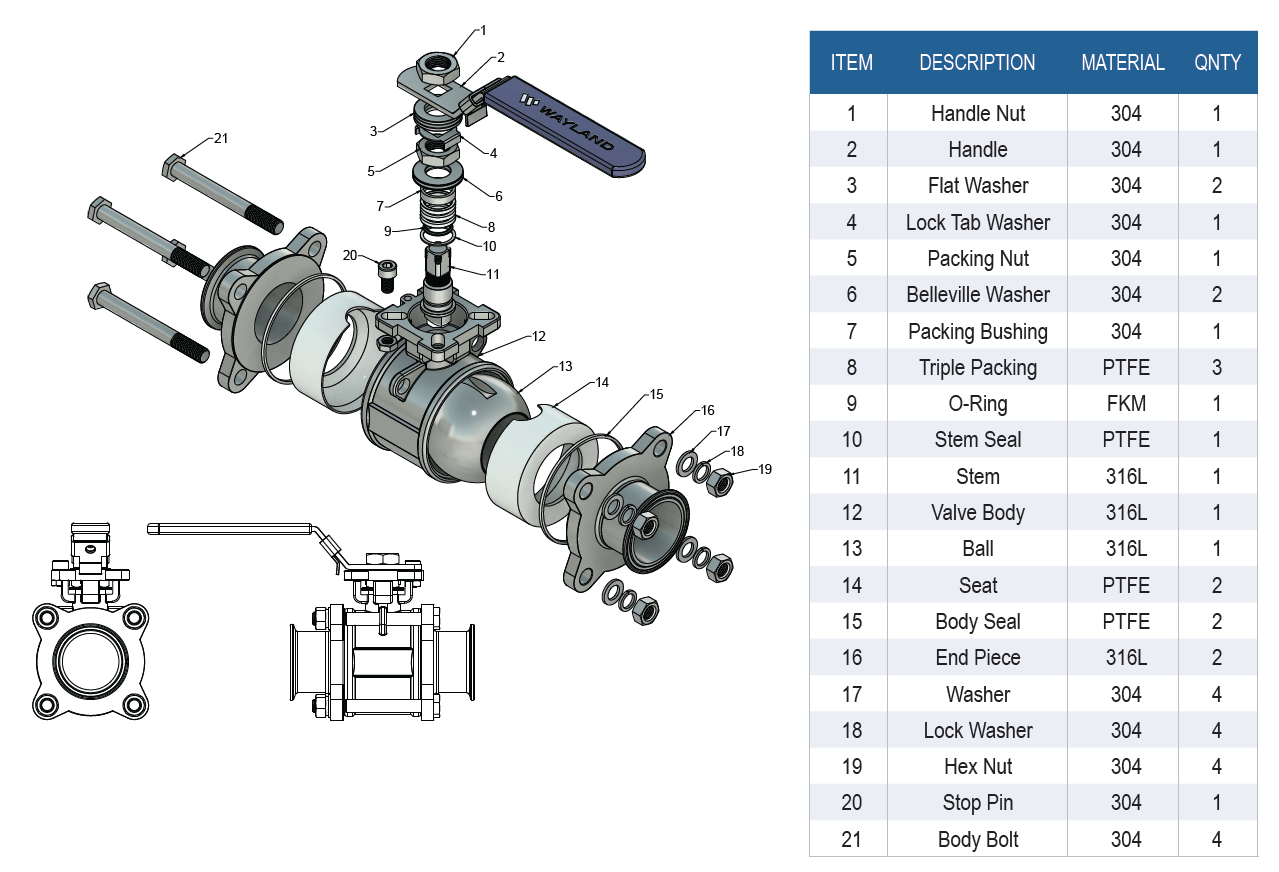

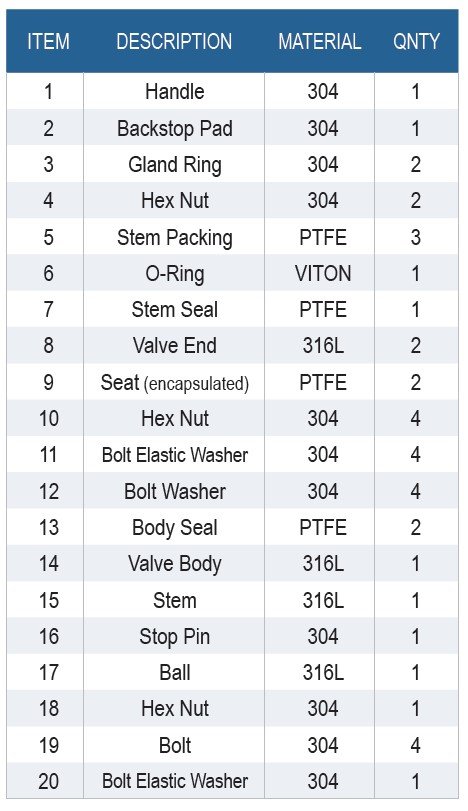

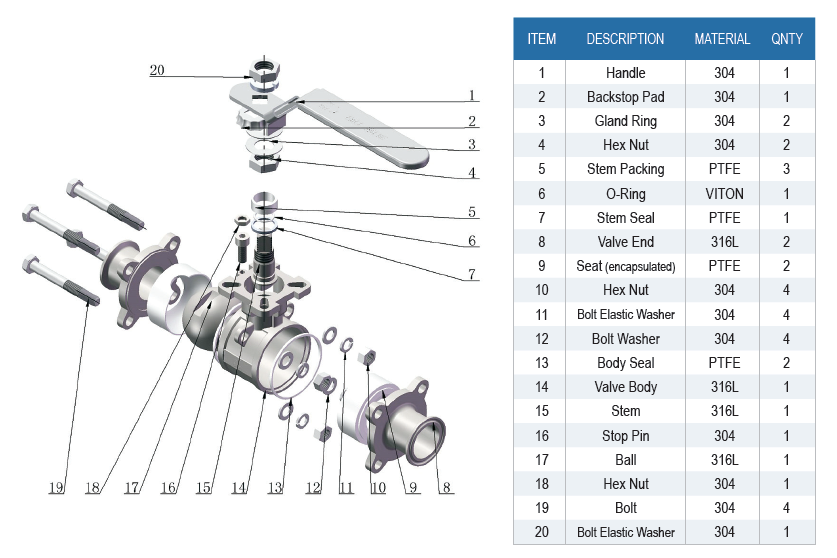

Exploded Drawing & Legend
