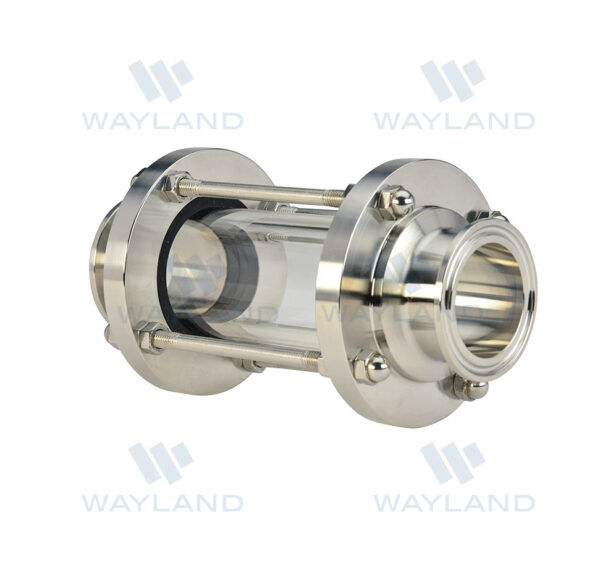

Sight Glass Tri-Clamp Ends Pyrex (54BMP)

  • Available in 316L only
  • Surface Finish: 32Ra
  • Maximum operating temperature is 200°F
  • Pressure Rating is 145 PSI
  • Glass Thickness: 1″- 3″ is 5mm, 4″- 6″ is 10mm
  • Gaskets are EPDM
  • Borosilicate (Pyrex) Glass
  • Working PSI/Temp. assumes absence of thermal shock
Clear
SKU: 54BMP Categories: ,

Sight Glass Tri-Clamp Ends Pyrex (54BMP)

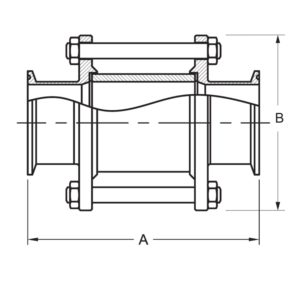

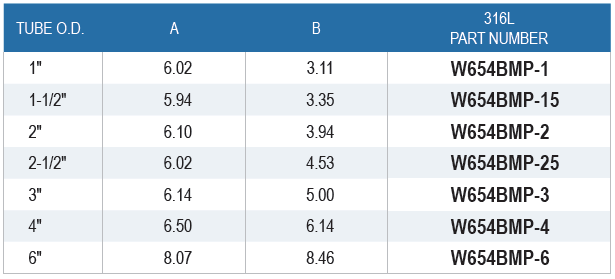

Product Data Table
