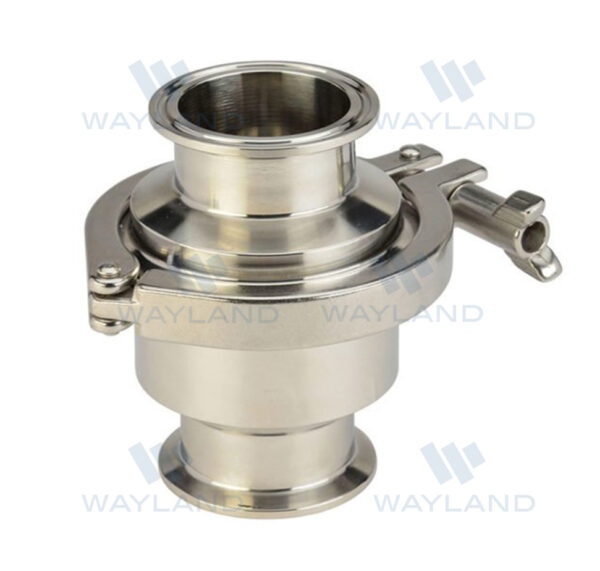

Spring Check Valve (45MP)

  • 3-A Sanitary Certified
  • Material: Forged 316L stainless steel
  • Lower resistance to flow
  • Suitable for low and medium viscosity fluids
  • Full size flow plate
  • Long stem bushing for better life cycle
  • All wetted surfaces are sanitary finished to ≤32Ra
  • Operating temperature range:
    • Silicone: -58°F to 428°F
    • FKM: 0°F to 392°F
    • EPDM: -40°F to 302°F
  • Maximum operating pressure: 145 PSI
  • Seat and O-ring: Silicone (standard), FKM, or EPDM
  • 3A Certificate  (PDF Download)
Clear
SKU: 45MP Categories: ,

Spring Check Valve (45MP)

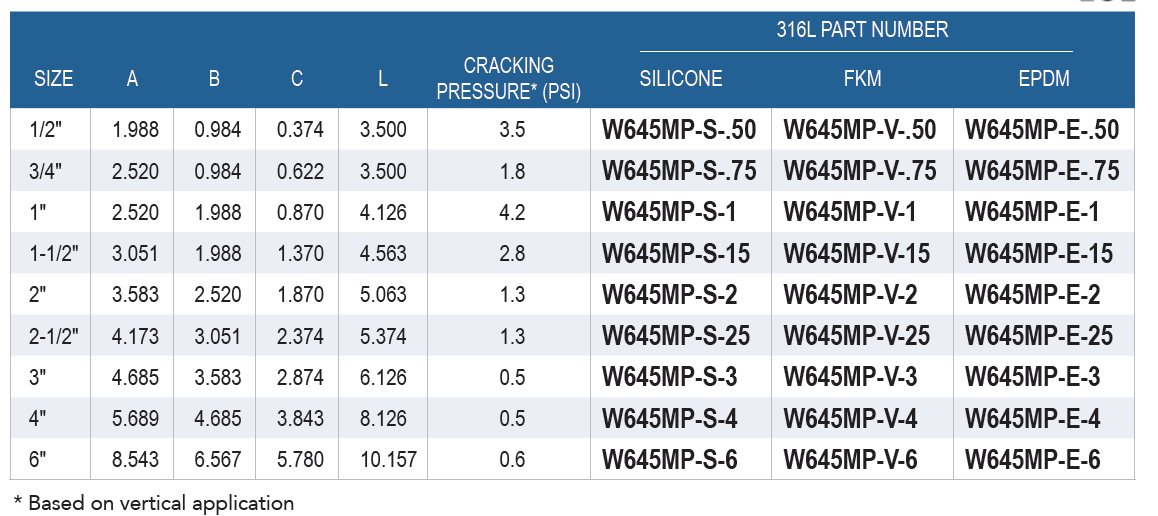

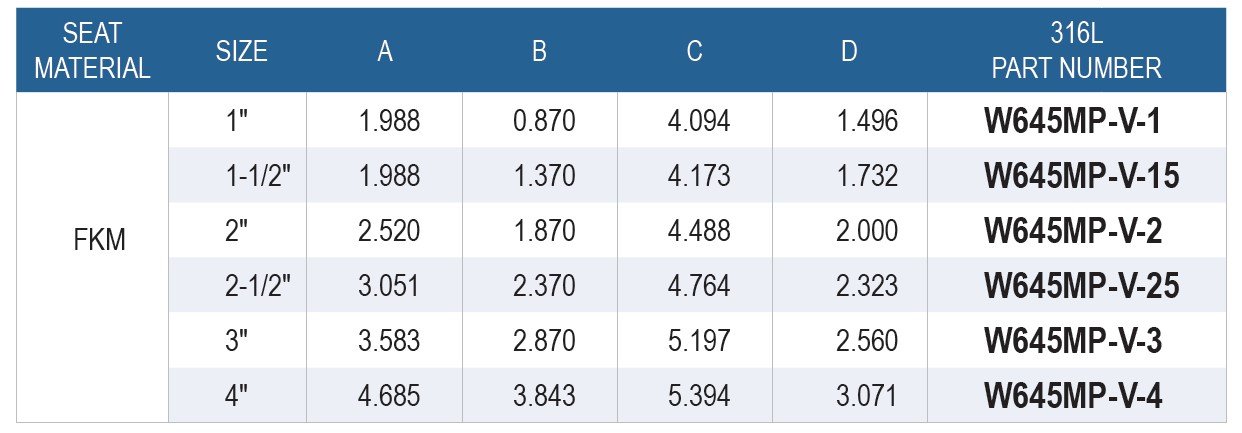

Product Data Table

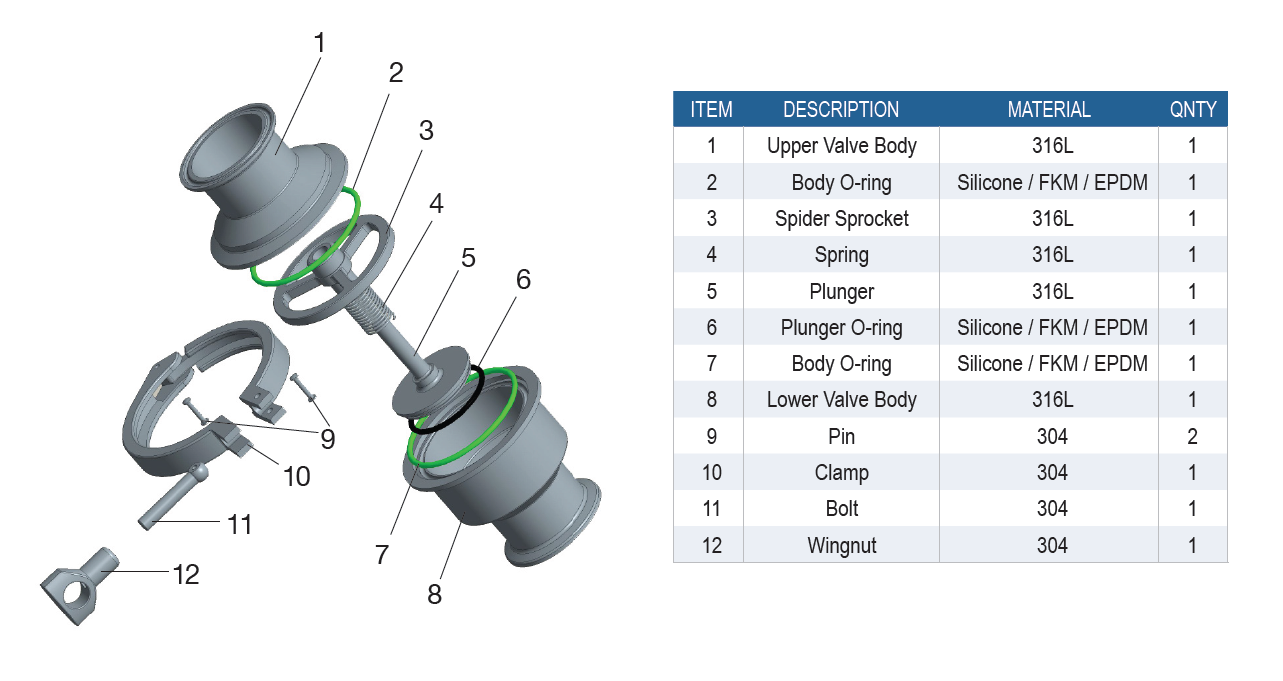

Exploded Drawing & Legend
