Actuated Butterfly Valve

  • Actuator Material: 304 Stainless Steel
  • Valve Body Material: Available in 304 or 316L Stainless Steel
  • Field Serviceable
  • All wetted surfaces are RA 32 minimum
  • Air Supply Pressure: 80 – 100 PSI
  • Weight: 5.95 lbs
  • Temperature Range: 15° to 200°F.
  • Air Fitting Ports: 1/8” FNPT tap
  • Air Hose Size: 1/4″
  • Can be mounted on all butterfly valves up to 4”
  • Available in “Normally Open” , “Normally Closed” & “Dual Acting” actuation
  • Butterfly Valve Specifications Sheet  (PDF Download)
Clear
SKU: BFVTC-E Categories: ,

Actuated Butterfly Valve

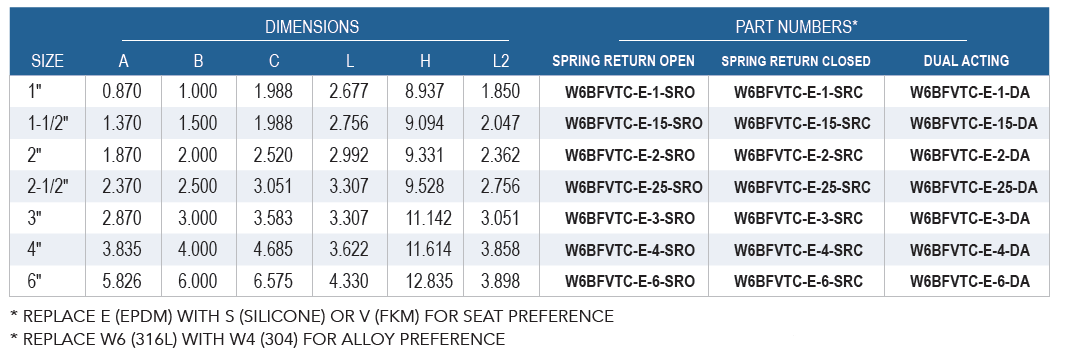

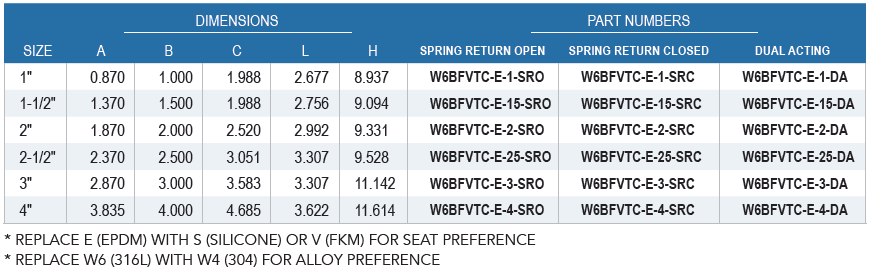

Product Data Table

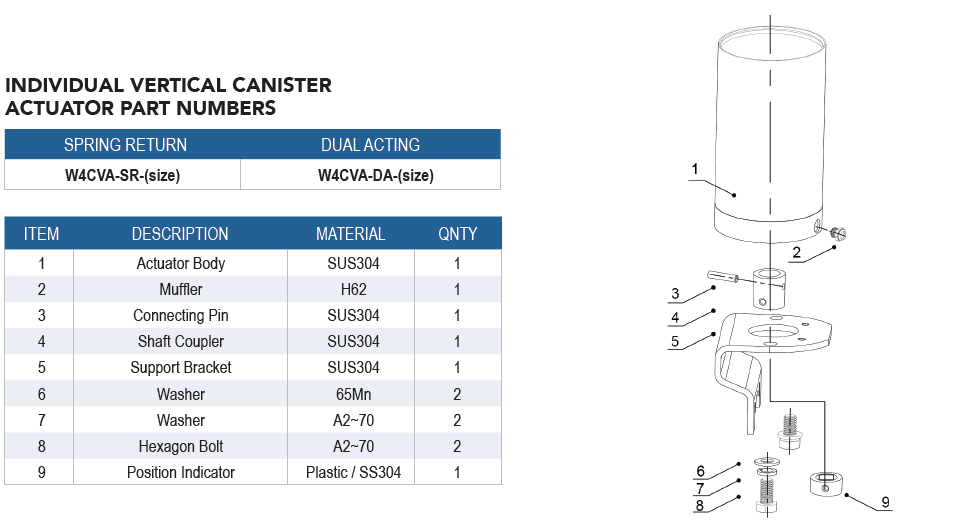

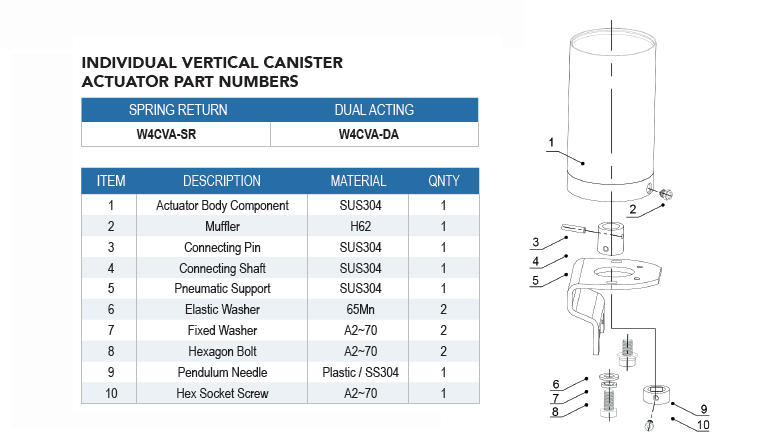

Actuated Butterfly Valve Exploded Drawing & Legend
