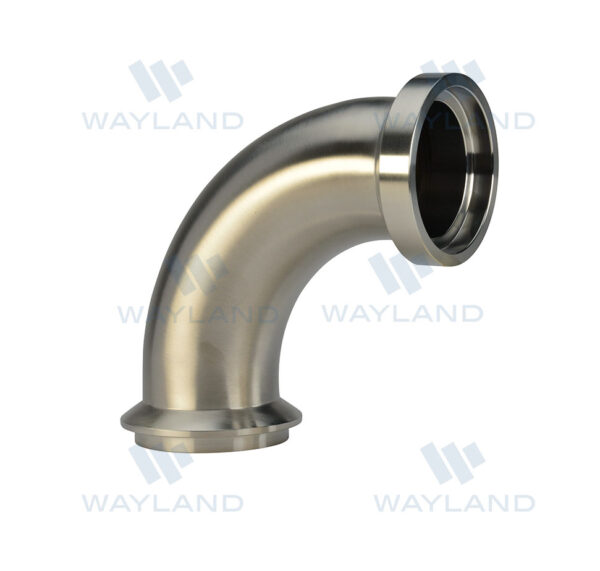

Female I-Line x Male I-Line 90° Elbow (2FI)


  • Female I-Line x Male I-Line 90° Elbow for sanitary process connections
  • Stainless steel options: 304 and 316L
  • Available sizes: 8 listed size options
  • Selection reference: existing product graphic and linked size and part-number table below






Wayland offers the 2FI 90° female-to-male I-Line elbow in 304 or 316L stainless steel. Use the existing product graphic and linked part-number table to identify the required configuration.

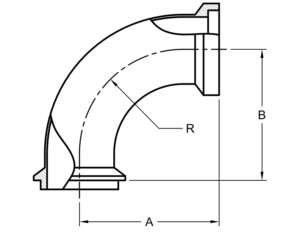

90° I-Line Elbow Reference

Existing product drawing or sizing graphic. Click to view it at full size.

2FI existing product drawing or sizing reference

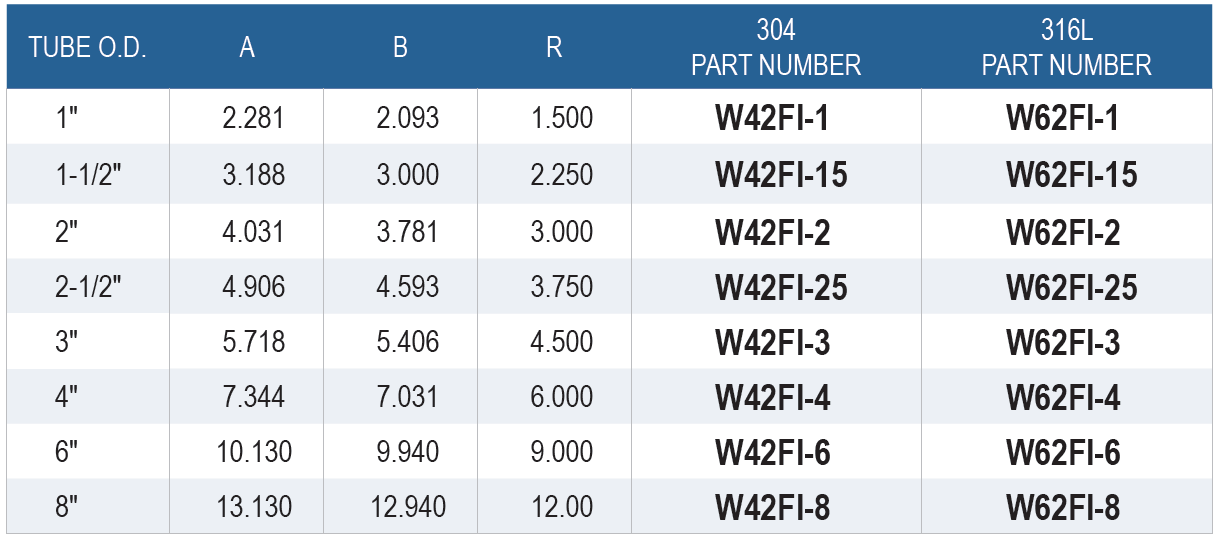

Size and Part Number Reference

Choose a size and alloy. Each part number opens the matching product variation.

Size Part Number
1″ 304: W42FI-1
316L: W62FI-1
1-1/2″ 304: W42FI-15
316L: W62FI-15
2″ 304: W42FI-2
316L: W62FI-2
2-1/2″ 304: W42FI-25
316L: W62FI-25
3″ 304: W42FI-3
316L: W62FI-3
4″ 304: W42FI-4
316L: W62FI-4
6″ 304: W42FI-6
316L: W62FI-6
8″ 304: W42FI-8
316L: W62FI-8

Product Support & Distributor Inquiries

Confirm the connection style, size and alloy when planning your assembly. Explore I-Line fittings and the sanitary fittings range, or contact Wayland for help identifying product documentation.
