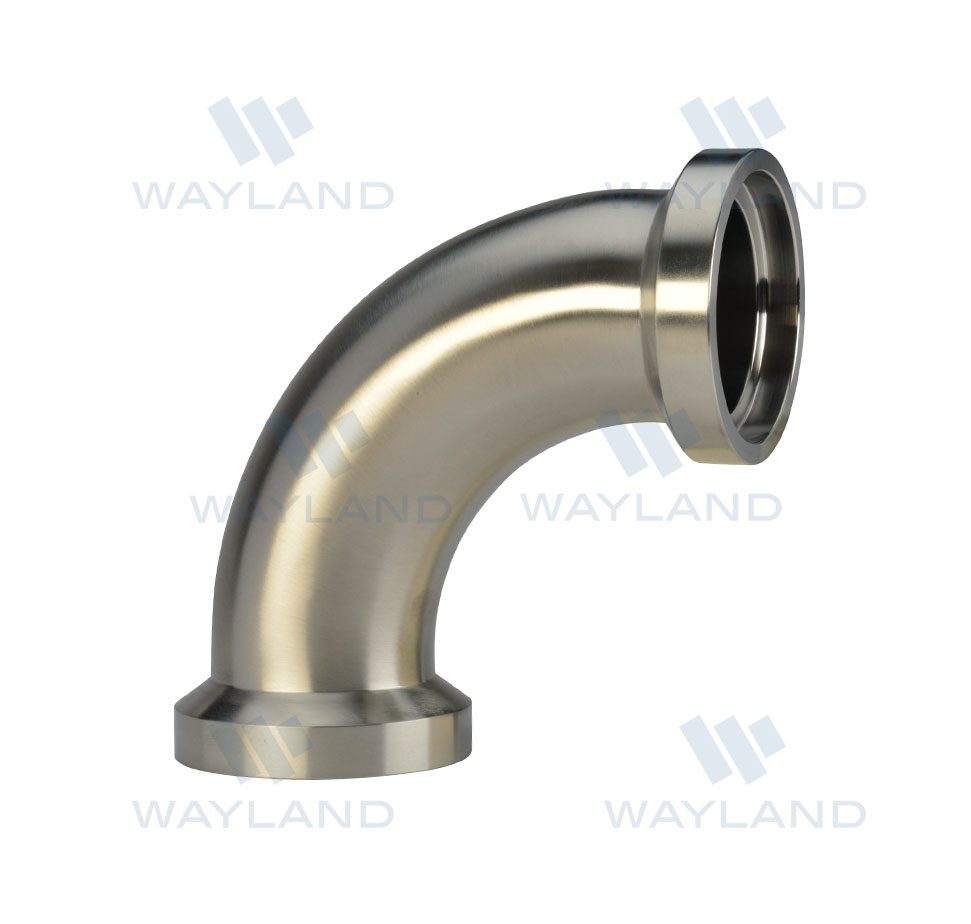

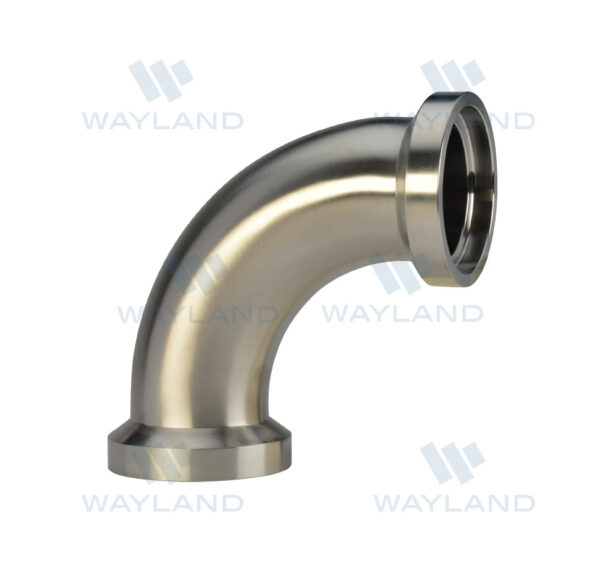

90° Female I-Line Elbow (2CI)
- 90° Female I-Line Elbow for sanitary process connections
- Stainless steel options: 304 and 316L
- Available sizes: 8 listed size options
- Selection reference: existing product graphic and linked size and part-number table below
The 2CI 90° female i-line elbow is available in the alloy and size options shown above. Use the existing product graphic and linked part-number table to identify the required configuration.
2CI Product Reference

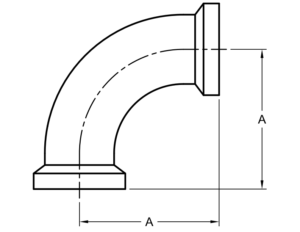

Existing product drawing or sizing graphic. Click to view it at full size.

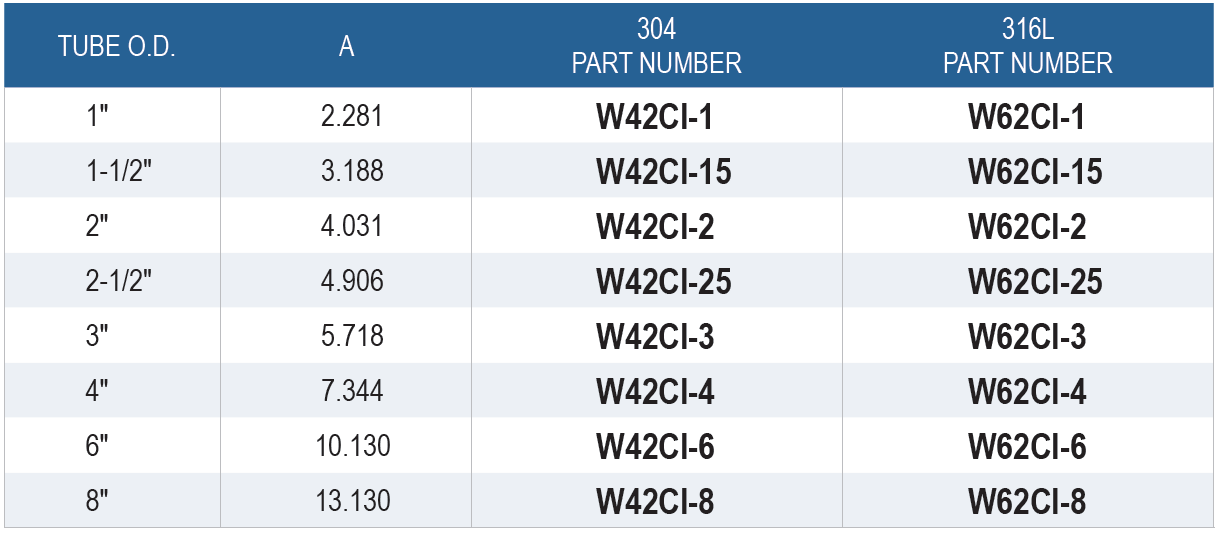

Size and Part Number Reference
Choose a size and alloy. Each part number opens the matching product variation.
| Size | Part Number |
|---|---|
| 1″ | 304: W42CI-1 316L: W62CI-1 |
| 1-1/2″ | 304: W42CI-15 316L: W62CI-15 |
| 2″ | 304: W42CI-2 316L: W62CI-2 |
| 2-1/2″ | 304: W42CI-25 316L: W62CI-25 |
| 3″ | 304: W42CI-3 316L: W62CI-3 |
| 4″ | 304: W42CI-4 316L: W62CI-4 |
| 6″ | 304: W42CI-6 316L: W62CI-6 |
| 8″ | 304: W42CI-8 316L: W62CI-8 |
Product Support & Distributor Inquiries
Confirm the connection style, size and alloy when planning your assembly. Explore I-Line fittings and the sanitary fittings range, or contact Wayland for help identifying product documentation.
