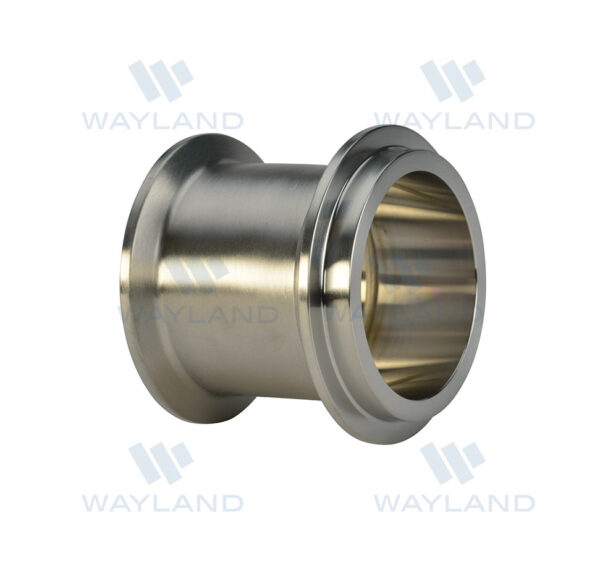

Male I-Line x Clamp Adapters (17-14I-14MP)
- Male I-Line x Clamp Adapters for sanitary process connections
- Stainless steel options: 304 and 316L
- Available sizes: Six sizes from 1" to 4"
- Selection reference: Cross-section drawing and linked size and part-number table below
The 17-14I-14MP male I-Line clamp adapter is available in 304 and 316L stainless steel, with six sizes from 1 to 4 inches. Use the drawing and linked part-number table below to identify the required size and alloy.

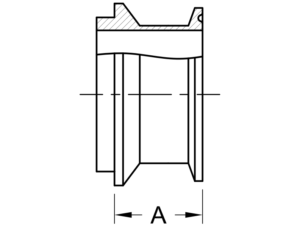

17-14I-14MP Adapter Drawing
Cross-section drawing with the A dimension reference. Click to view it at full size.

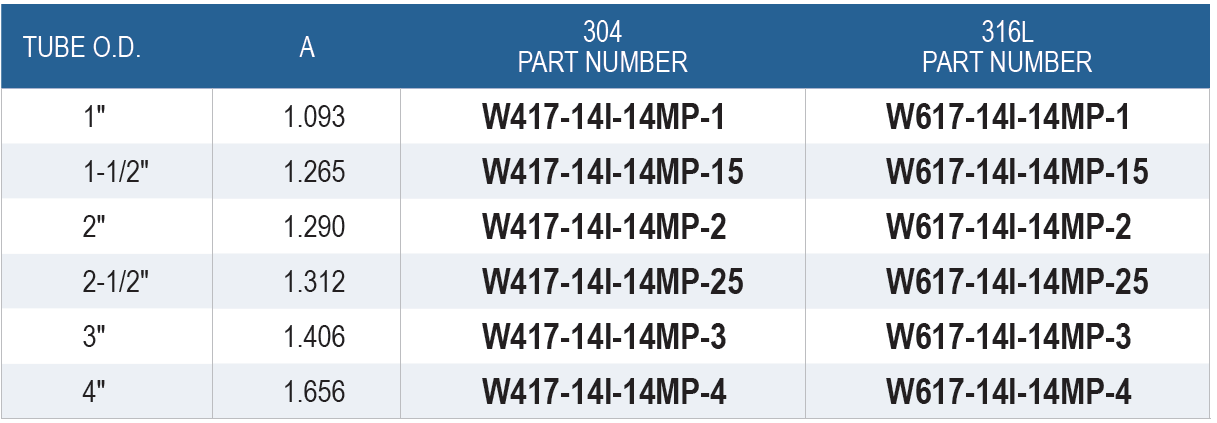

I-Line Clamp Adapter Sizes and Part Numbers
Choose a size and alloy. Each part number opens the matching product variation.
| Size | Part Number |
|---|---|
| 1" | 304: W417-14I-14MP-1 316L: W617-14I-14MP-1 |
| 1-1/2" | 304: W417-14I-14MP-15 316L: W617-14I-14MP-15 |
| 2" | 304: W417-14I-14MP-2 316L: W617-14I-14MP-2 |
| 2-1/2" | 304: W417-14I-14MP-25 316L: W617-14I-14MP-25 |
| 3" | 304: W417-14I-14MP-3 316L: W617-14I-14MP-3 |
| 4" | 304: W417-14I-14MP-4 316L: W617-14I-14MP-4 |
Product Support & Distributor Inquiries
Planning a sanitary fitting connection? Explore related I-Line fittings and clamp fittings, or contact Wayland for help identifying the right product documentation.
