Female I-Line x Clamp Adapters (17-15I-14MP)
- Female I-Line x Clamp Adapters for sanitary process connections
- Stainless steel options: 304 and 316L
- Available sizes: 6 listed size options
- Selection reference: existing product graphic and linked size and part-number table below

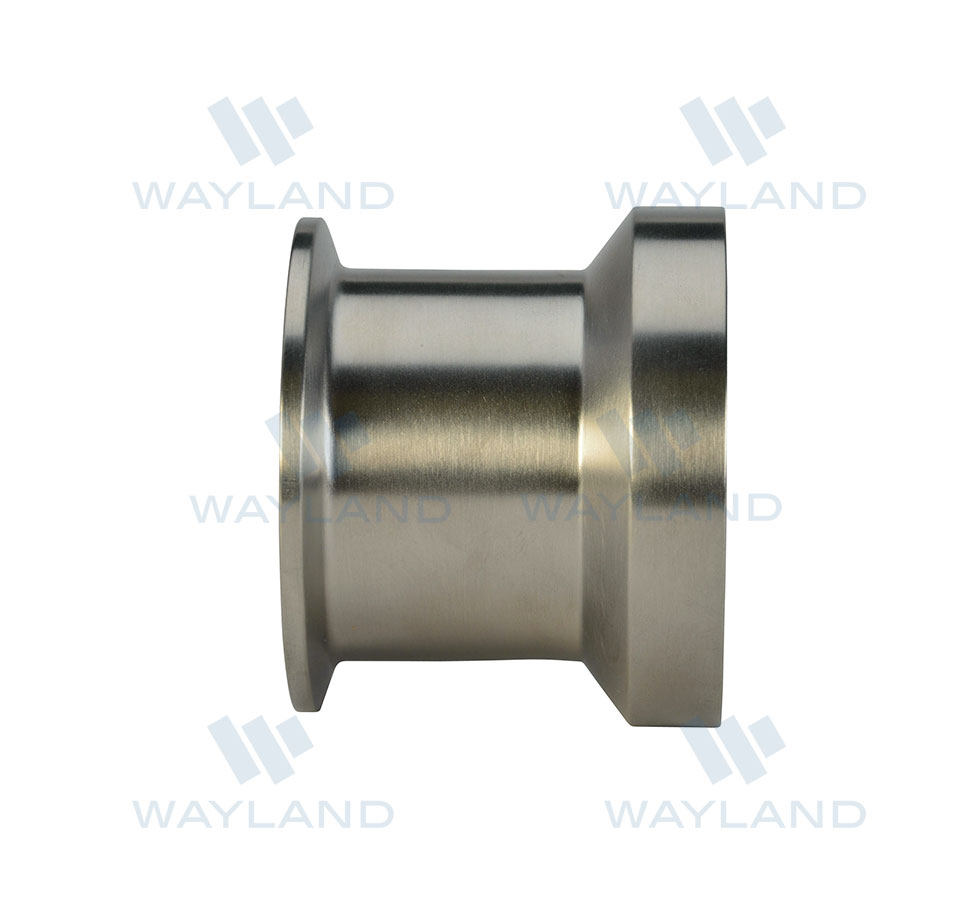

The Wayland 17-15I-14MP female I-Line clamp adapter is available in 304 or 316L stainless steel. Use the existing product graphic and linked part-number table to identify the required configuration.

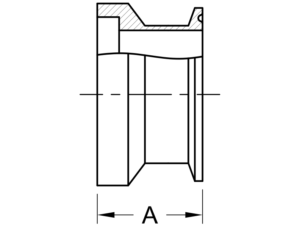

Female I-Line Clamp Adapter Reference
Existing product drawing or sizing graphic. Click to view it at full size.

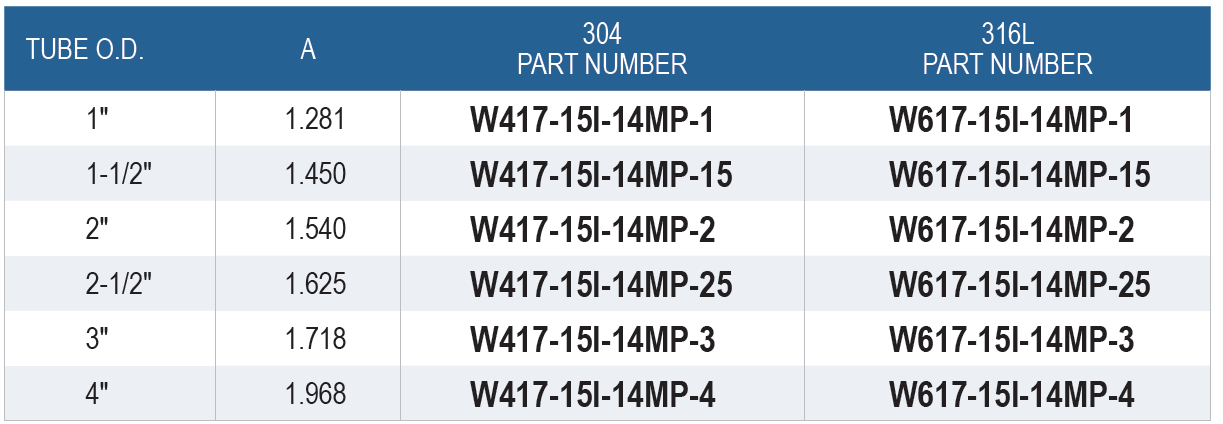

Size and Part Number Reference
Choose a size and alloy. Each part number opens the matching product variation.
| Size | Part Number |
|---|---|
| 1″ | 304: W417-15I-14MP-1 316L: W617-15I-14MP-1 |
| 1-1/2″ | 304: W417-15I-14MP-15 316L: W617-15I-14MP-15 |
| 2″ | 304: W417-15I-14MP-2 316L: W617-15I-14MP-2 |
| 2-1/2″ | 304: W417-15I-14MP-25 316L: W617-15I-14MP-25 |
| 3″ | 304: W417-15I-14MP-3 316L: W617-15I-14MP-3 |
| 4″ | 304: W417-15I-14MP-4 316L: W617-15I-14MP-4 |
Product Support & Distributor Inquiries
Confirm the connection style, size and alloy when planning your assembly. Explore I-Line fittings and the sanitary fittings range, or contact Wayland for help identifying product documentation.
