Custom Capabilities
Specialized stainless steel components and assemblies built around process, connection and documentation requirements.
A Single Source for Custom Fabricated Parts
Start with the capability that best fits your project, then send Wayland the available drawing, dimensions and technical requirements.

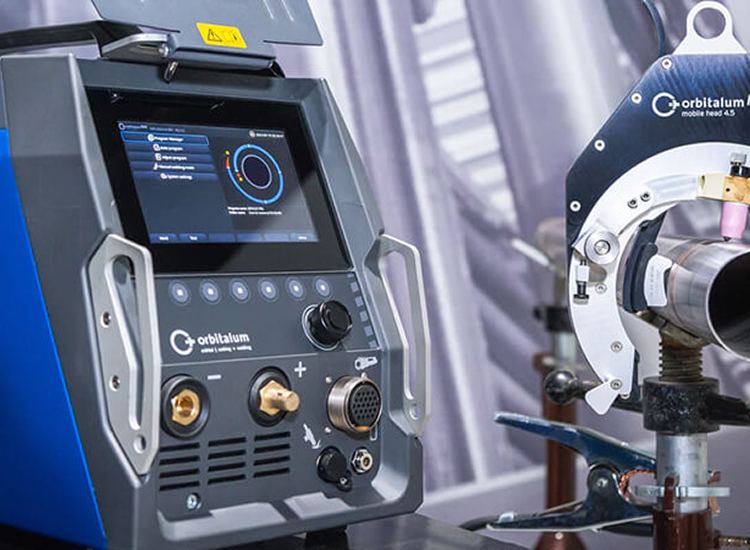

Manual & Orbital Welding
Welding capabilities for custom stainless steel process components and assemblies.

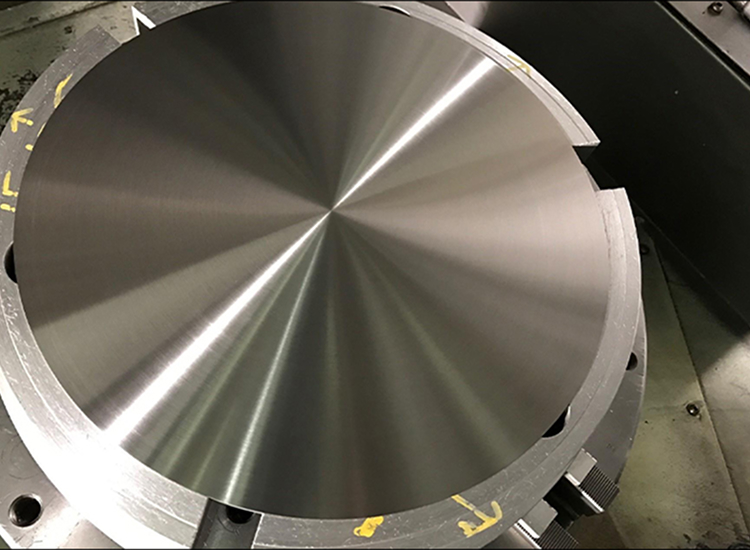

Mechanical Polishing
Controlled surface finishing for custom stainless steel parts and sanitary components.

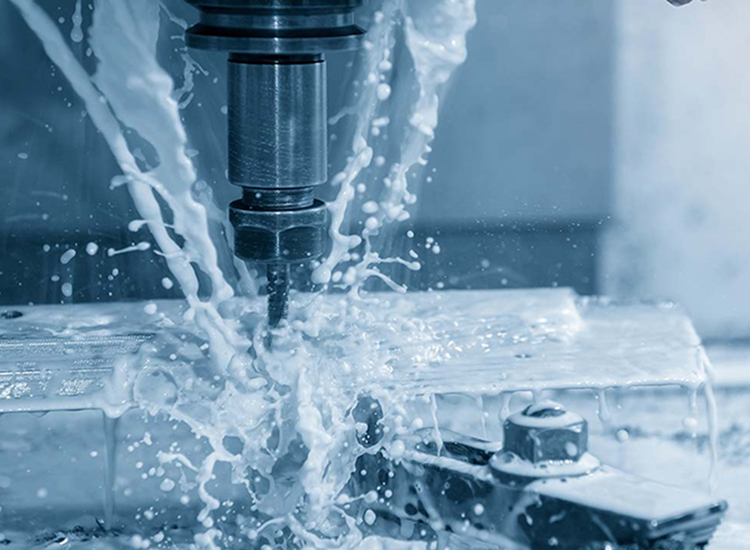

CNC Machining
Custom machined stainless steel parts for specialized process requirements.

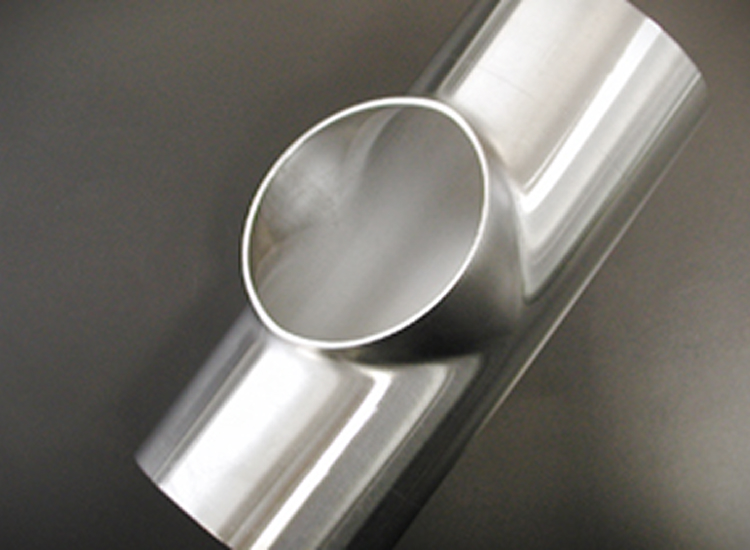

Tee Pulling
Tee pulling for custom process assemblies and specialized sanitary configurations.
Built Around Your Process Requirements
Wayland supports custom stainless steel requirements beyond standard catalog configurations.

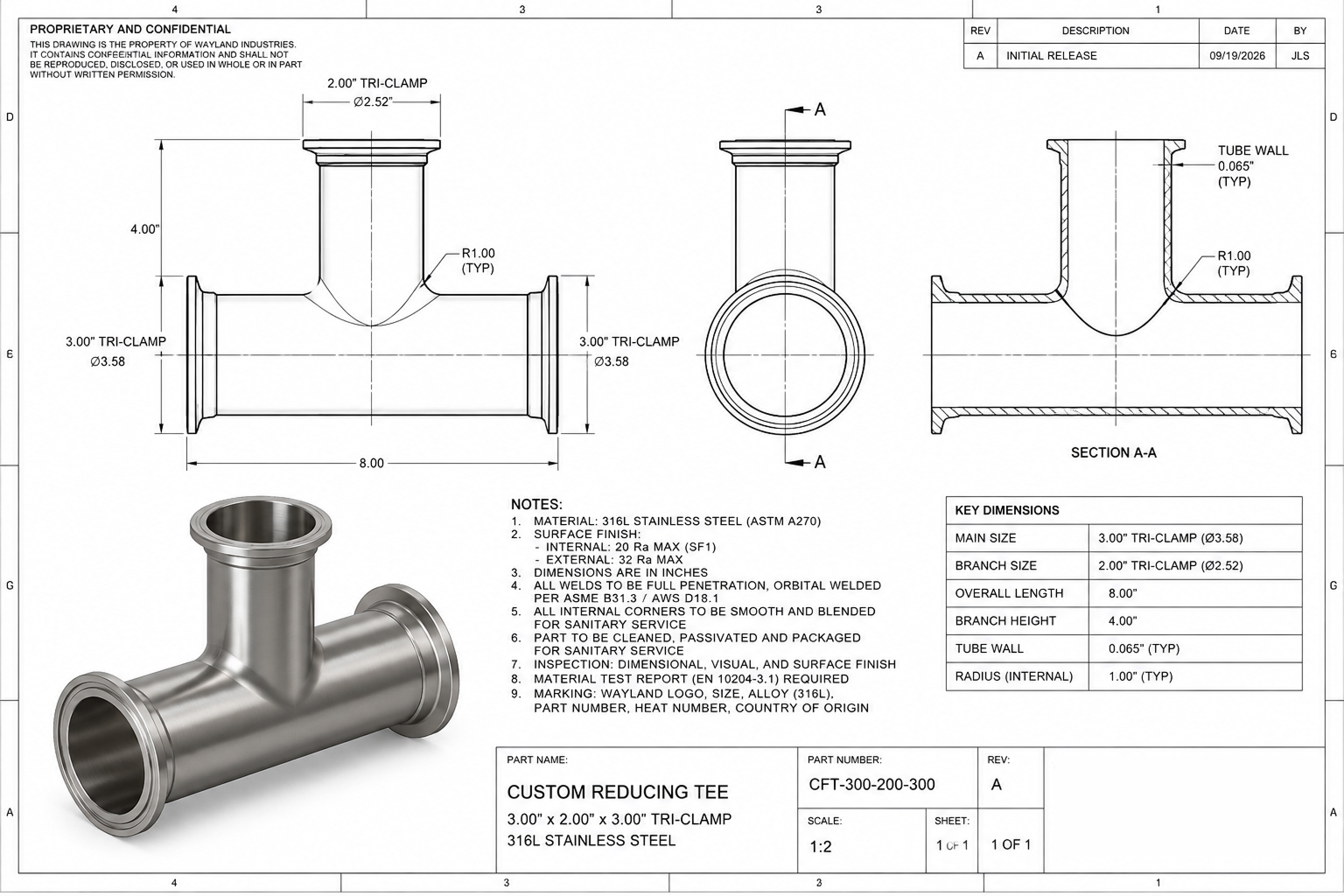

- Custom fittingsSpecialized configurations for process-specific requirements.
- Made-to-length spoolsFabricated spool assemblies built to project dimensions.
- ManifoldsCustom manifold configurations for sanitary process systems.
- Special configurationsMachined parts, jacketed fittings, sweep elbows and other nonstandard assemblies.
Engineering & Fabrication Requirements
Share the information currently available. A formal drawing is helpful, but review can begin with dimensions, connection requirements and an application description.
| Engineering Detail | Information to Provide |
|---|---|
| Component or assembly | Custom fitting, spool, manifold, machined component, jacketed fitting, sweep elbow or other assembly. |
| Drawing and geometry | Drawing, sketch, CAD reference, overall dimensions, centerlines and orientation. |
| Size and connections | Tube or pipe size, clamp ends, weld ends, flanges, threads or other interfaces. |
| Material | Required stainless steel alloy, including 304, 304L or 316L where applicable. |
| Wall thickness | Tube gauge, wall thickness or pipe schedule where applicable. |
| Surface finish | Required ID/OD finish, polishing requirements or other specified condition. |
| Welding requirements | Manual or orbital welding requirements and applicable project specifications. |
| Operating conditions | Process media, temperature, pressure and cleaning requirements. |
| Inspection | Dimensional inspection, PMI, finish verification, testing or project-specific requirements. |
| Documentation | Traceability, certificates, drawings, inspection records or other required documentation. |
| Quantity | Prototype, one-off fabrication, short run or production quantity. |
Traceability, Inspection & Documentation
Wayland’s quality program supports applicable stainless steel products from material verification through final inspection and documentation.
Traceability & Documentation
Applicable products can include heat-number traceability, material documentation, certifications, drawings and inspection records based on project requirements.
Quality Control Throughout Manufacturing
Available controls include material verification, PMI, dimensional and surface-finish inspection, and project-specific testing when required.
Build Out the Complete Process System
Pair custom fabrication with Wayland standard product families and technical resources.

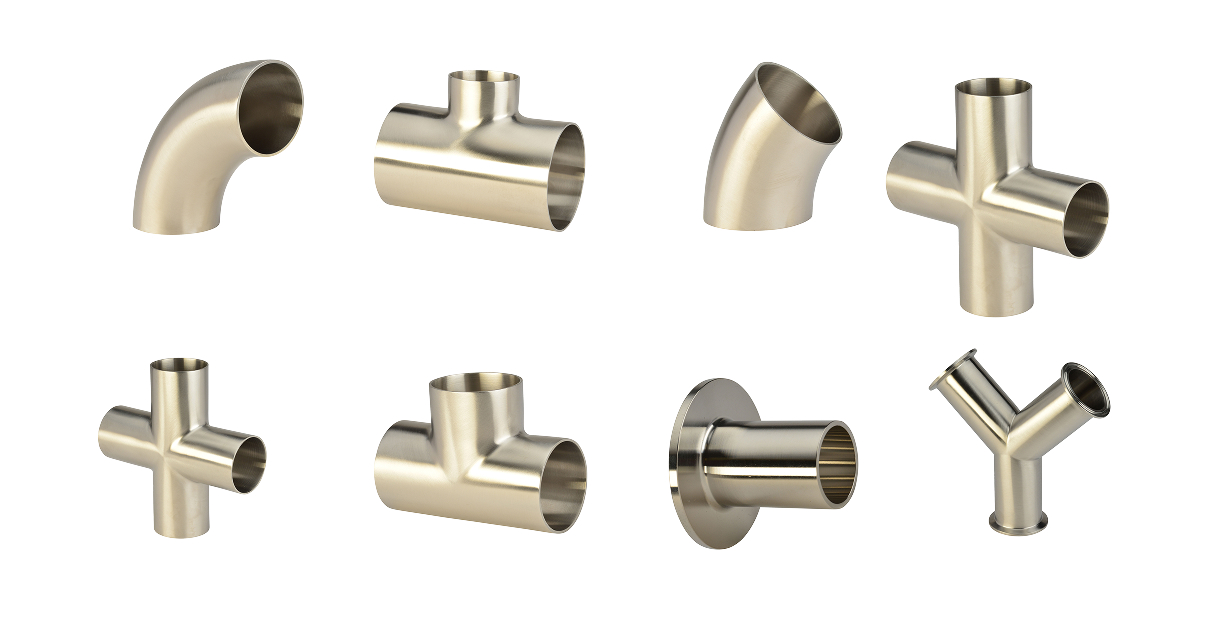

Sanitary Fittings
Clamp, weld, pipe-size and specialty fitting systems.

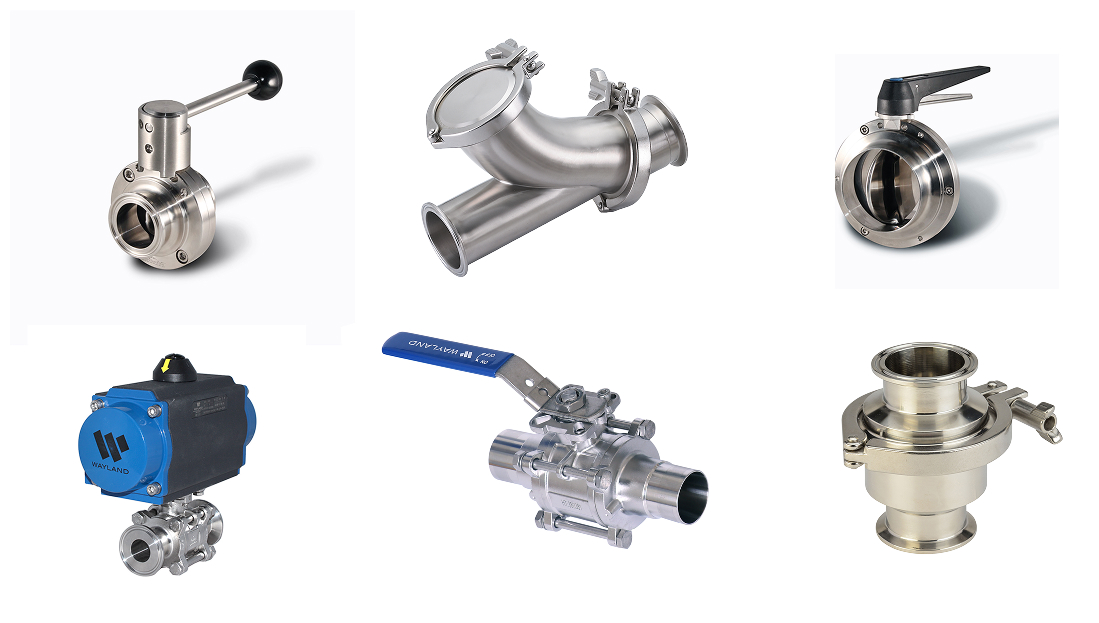

Sanitary Valves
Butterfly, ball, check and specialty valve families.

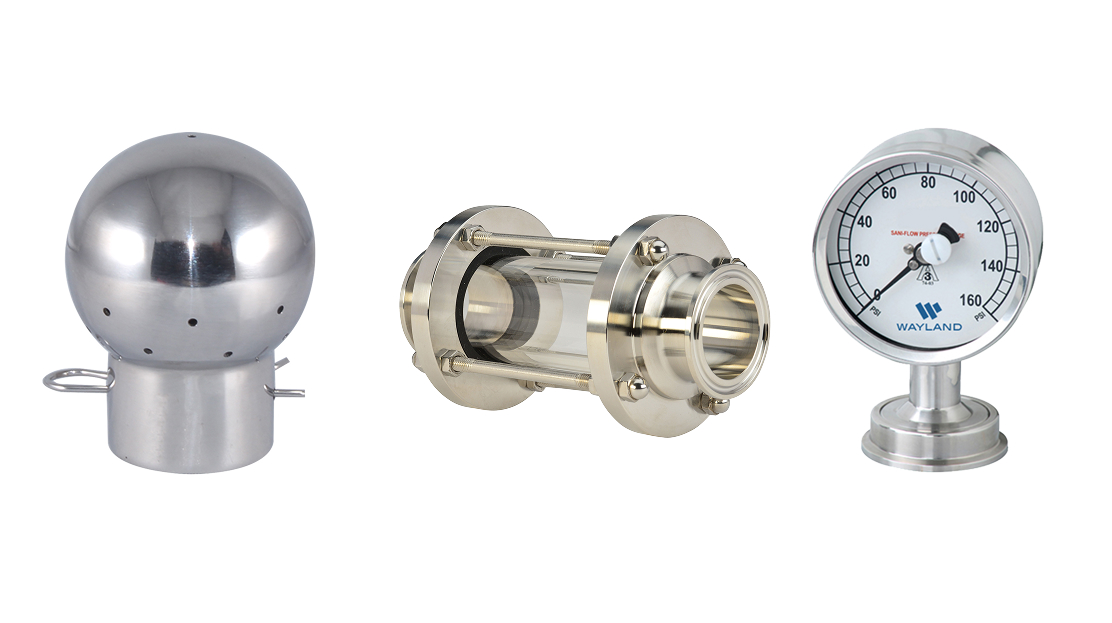

Accessories
Supporting components for complete process installations.
Resources
Catalogs, specifications, manuals and technical documents.

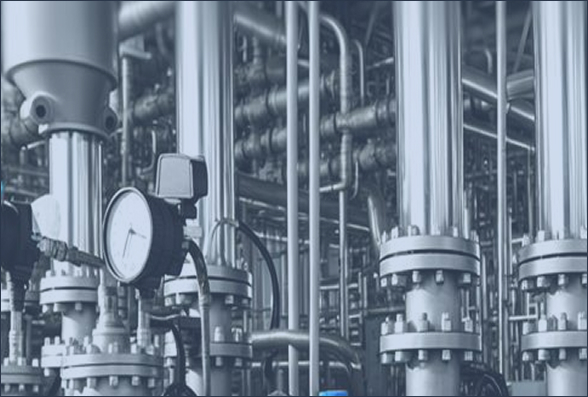

Industries Served
Processing, industrial and liquid-cooling applications.
Have a Custom Component in Mind?
Send Wayland your drawing, dimensions, material and quantity for review.
