Sanitary Fittings
Clamp, weld, pipe-size and specialty stainless steel fittings for hygienic process systems.
Core Sanitary Fitting Systems
Clamp Fittings
Common parent codes: 14WMP · 16AMP · 21MP
Sanitary clamp fittings for process lines requiring fast assembly, breakdown and cleaning access.
Polished Butt Weld Fittings
Common parent codes: 2WCL · 7W · 31W
Polished sanitary weld fittings for permanent process piping designed to be cleaned in place.

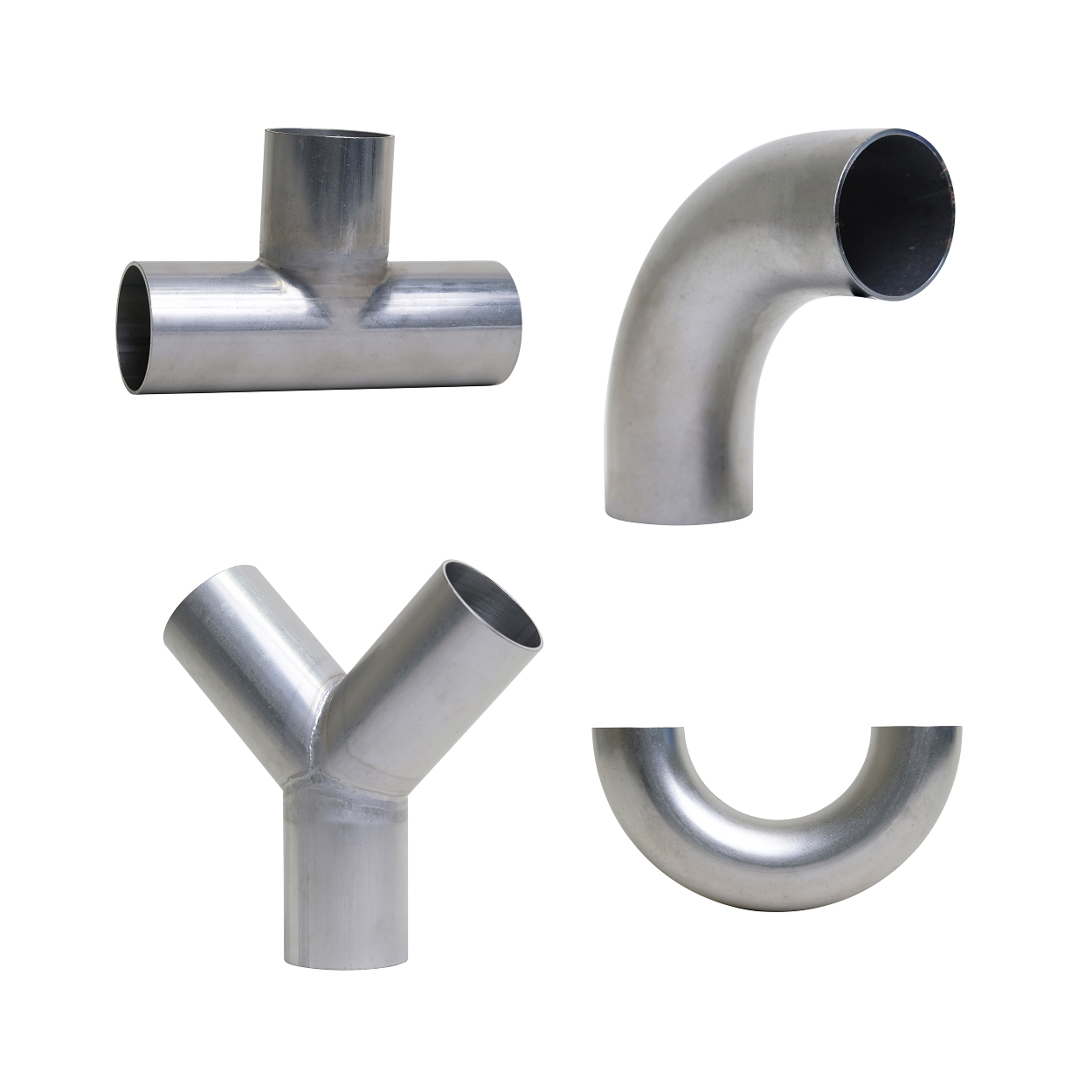

Unpolished Butt Weld Fittings
Common parent codes: 16W-U · 2WCL-U · 7W-U
Unpolished weld fittings for permanent installations where a sanitary polished surface finish is not required.
Specialty Sanitary Connection Systems

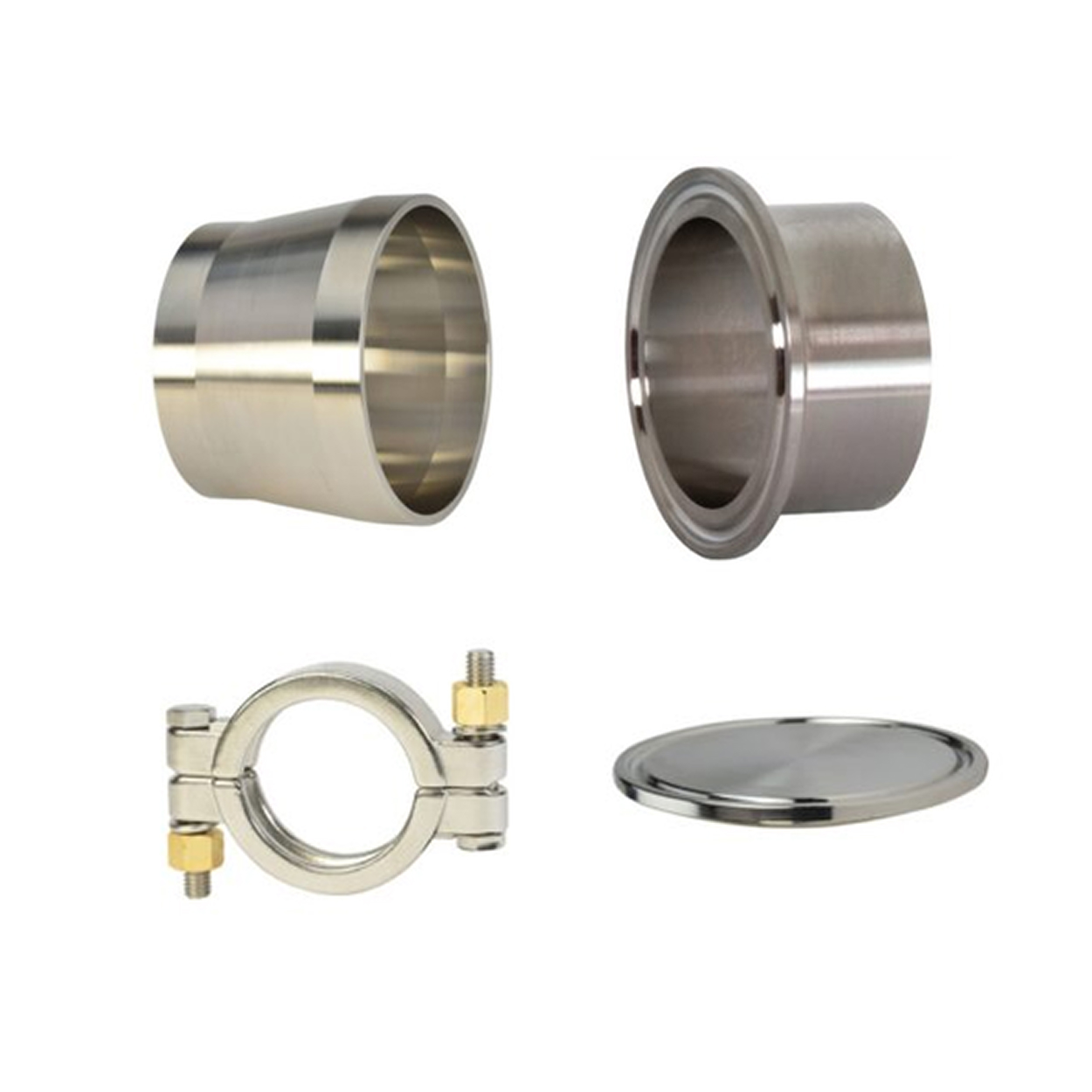

Pipe Size Fittings
Common parent codes: 14WMV · 19MPV · 19WX
Sanitary transition fittings for connecting schedule pipe systems to clamp connections or adapting between pipe-size and tube-size process lines.

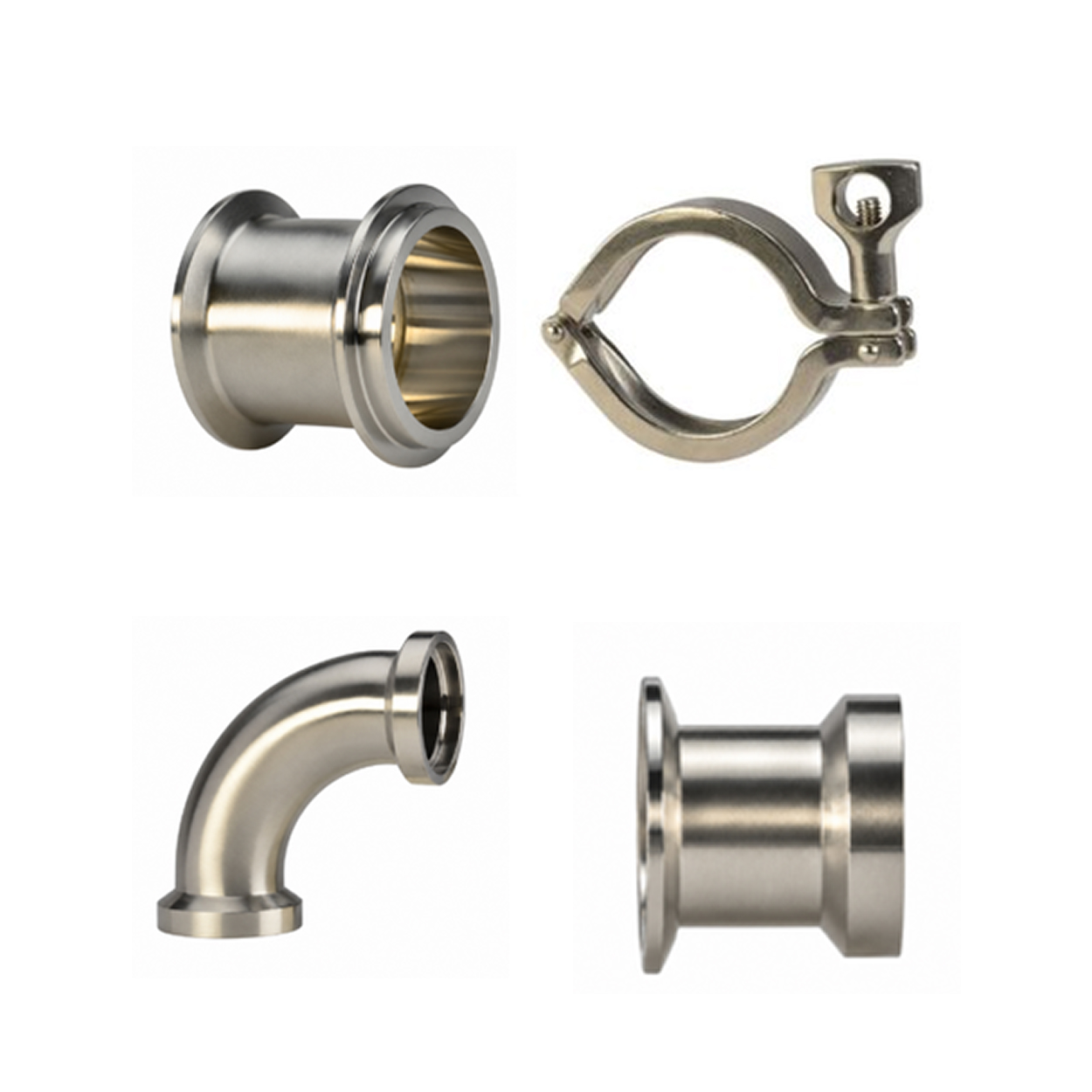

I-Line Fittings
Common parent codes: 13I · 14WI · 15WI
Interlocking flat-face sanitary fittings designed to resist gasket over-compression in demanding process environments.

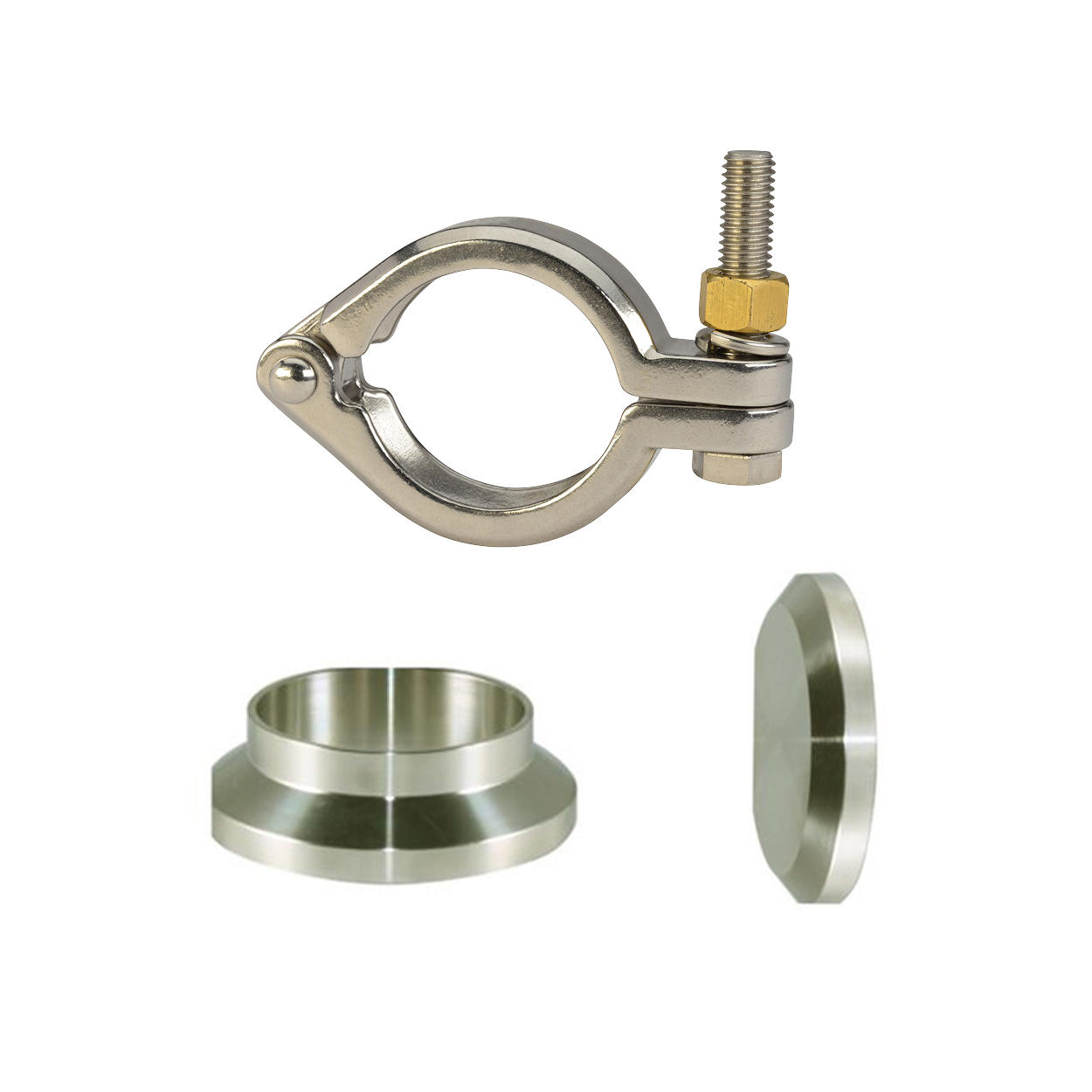

Q-Line Fittings
Common parent codes: 14WQ · 16AQ · 40QH
Quick-assembly sanitary connections with heavier construction for more challenging process environments.
Traditional & European Sanitary Connections

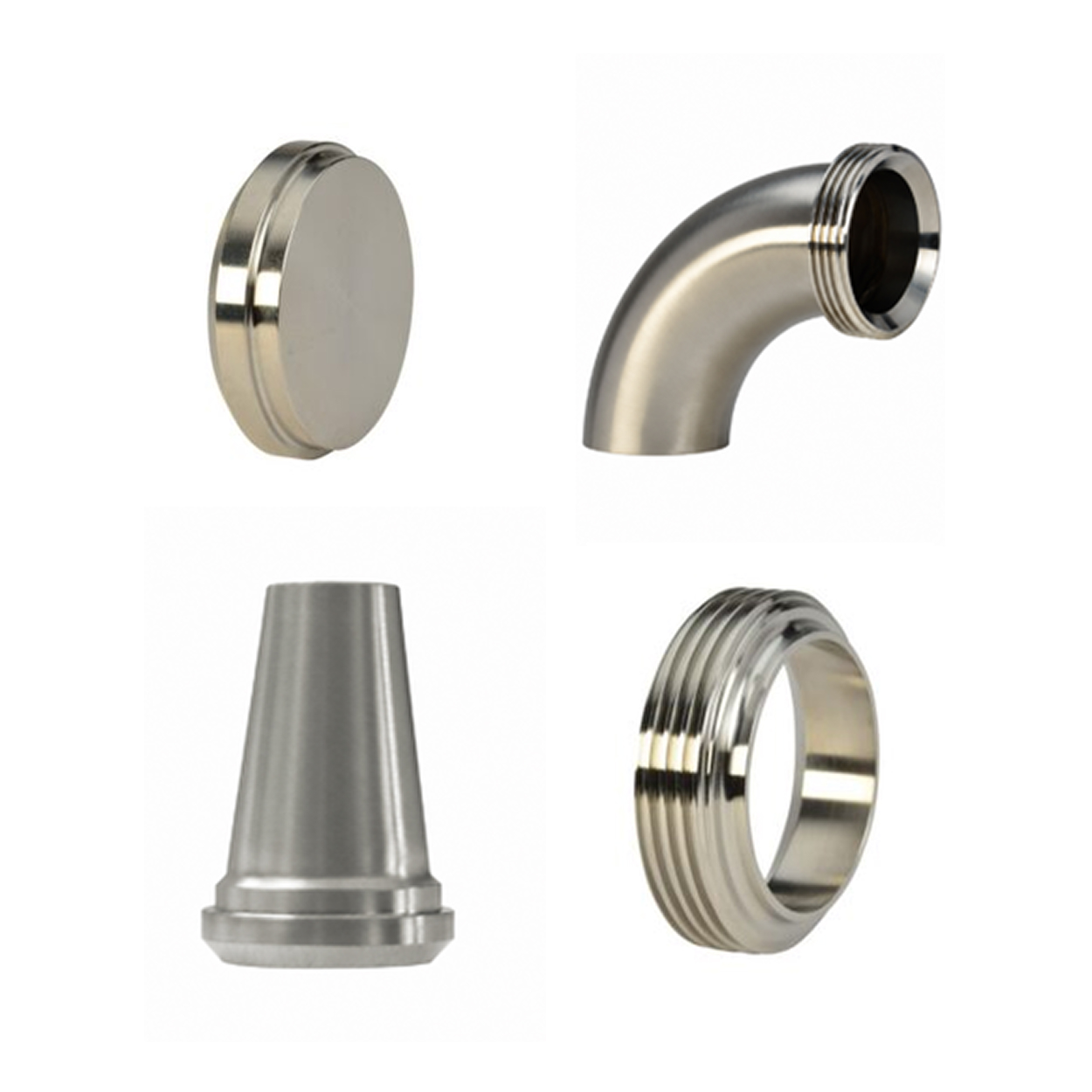

Bevel Seat Fittings
Common parent codes: 14A · 15A · 16A
Threaded and plain bevel ferrules joined with a union nut to create a secure sanitary process connection.

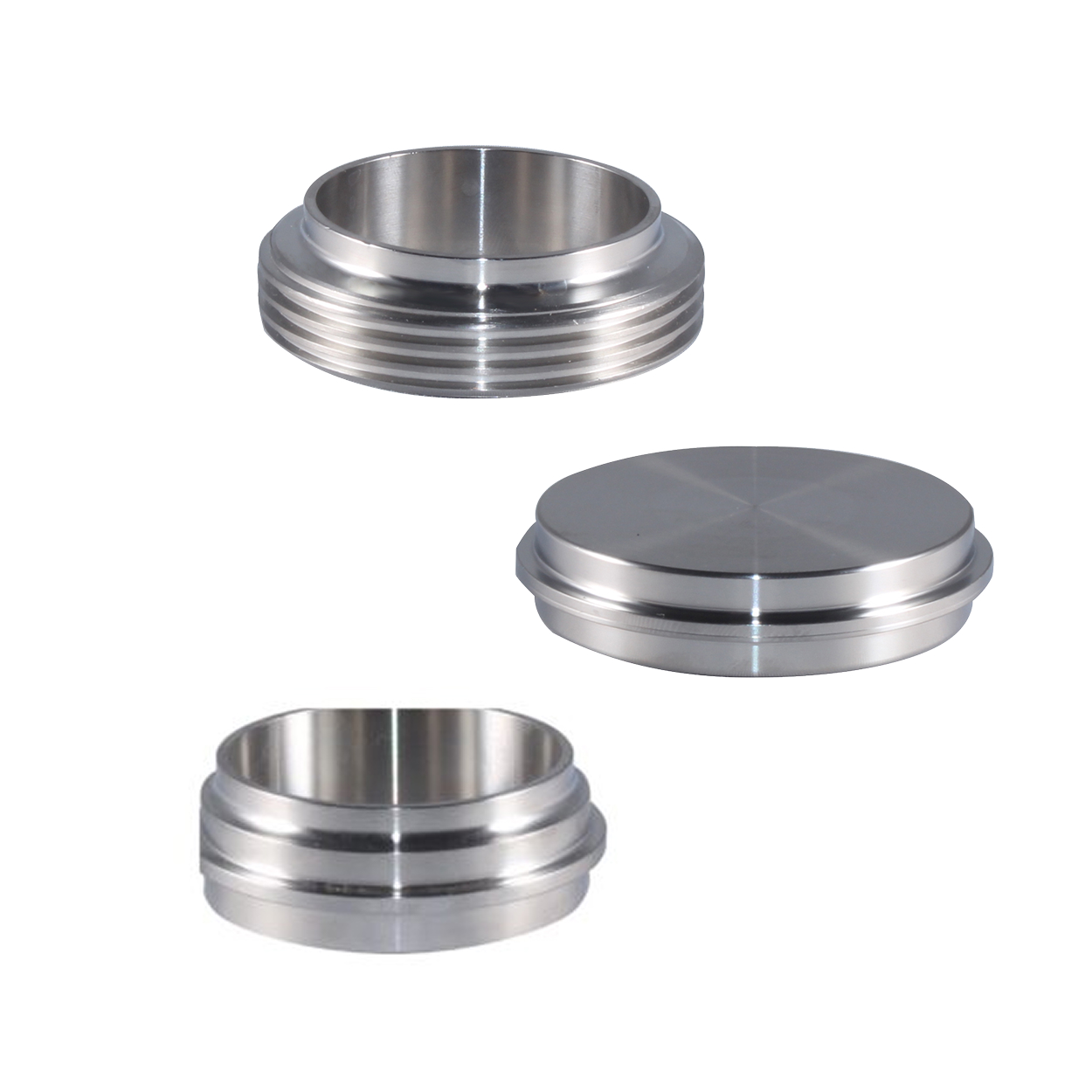

John Perry Fittings
Common parent codes: 14PRFJP · 15TRFJP · 16AJP
Sanitary connections using external Acme threads and a metal-to-metal seat, with gasket options for additional security.

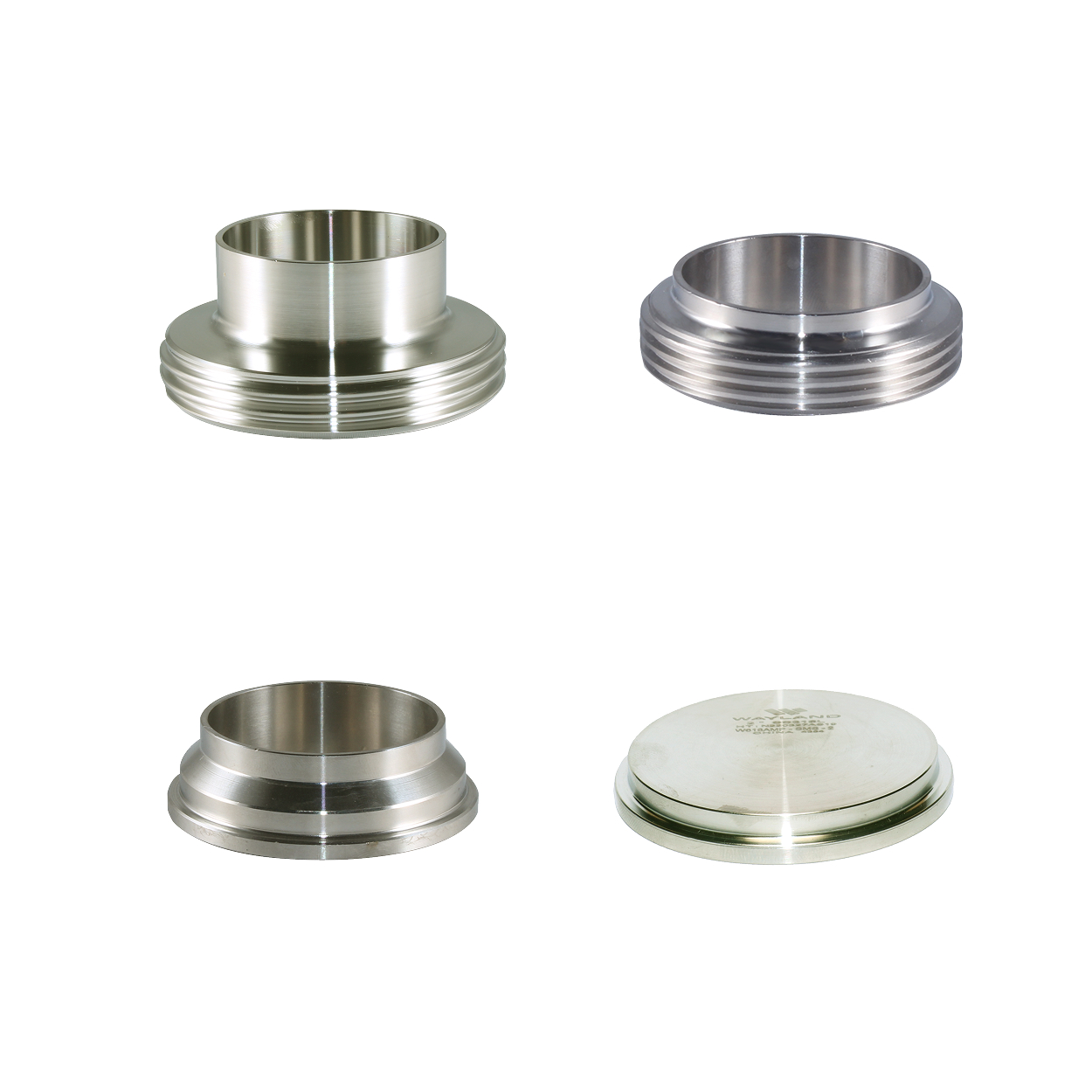

European DIN / SMS Fittings
Common parent codes: 14A-DIN · 15A-DIN · 14A-SMS
DIN and SMS sanitary connection systems for European process equipment and installations requiring compatible sanitary unions.
Need a Nonstandard Fitting?
Wayland supports custom stainless fittings, spools, manifolds and fabricated assemblies for process requirements outside standard catalog configurations.
- Custom fittings and spools
- Manual and orbital welding
- Mechanical polishing
- CNC machining and tee pulling
Fitting Specifications & Technical Resources
Product specifications, sizing information, material documentation and reference resources for sanitary process fittings.
Material Test Reports
Heat-number traceability and EN 10204-3.1 material documentation for applicable 304 and 316L products
Fitting Selection Support
Help with connection type, size, alloy and finish requirements
Sanitary Fittings FAQ
Common questions when selecting stainless steel sanitary fittings and connection systems.
Clamp or Weld Fittings?
Clamp fittings are designed for easy assembly and breakdown, making them useful where process lines require cleaning access or regular service. Weld fittings are intended for permanent process piping and are commonly used where the installed system can be cleaned in place.
Polished or Unpolished Weld?
Wayland polished weld fittings provide a 32Ra ID/OD finish for sanitary applications. Unpolished weld fittings have a tumbled mill finish for installations where a sanitary polished surface is not required.
304 or 316L Stainless Steel?
304 stainless steel is commonly selected for general sanitary processing because it provides dependable corrosion resistance for many food, beverage and clean-process applications. 316L contains molybdenum, which provides greater resistance to chlorides, acids and other corrosive process media. The appropriate alloy should be selected according to the process chemistry, cleaning method, operating environment and project specification.
What Are Pipe Size Fittings Used For?
Pipe size fittings are commonly used when a process line transitions from traditional schedule pipe but needs to maintain the pipe size while adding sanitary clamp connections. They can also adapt a traditional piping system to sanitary tube-size or clamp connections.
Does Wayland Offer European Fittings?
Yes. Wayland offers DIN and SMS sanitary fittings for European connection systems, including configurations designed to transition imported process equipment to imperial tube dimensions.
Are Material Test Reports Available?
Material documentation and traceability support are available for Wayland products. Contact Wayland with the product or project requirements when MTR documentation is needed.
Can Wayland Supply Custom Fittings?
Wayland offers custom fabricated parts including custom fittings, made-to-length spools, manifolds, special configurations, custom machined parts, jacketed fittings and sweep elbows.
PRODUCT & APPLICATION SUPPORT
Need Help Selecting or Specifying a Fitting?
Send Wayland your connection type, line size, alloy, surface finish and process requirements. Our team can help identify the appropriate fitting family, configuration and documentation for your project.
