HX High-Performance Butterfly Valves

Choose an HX Butterfly Valve

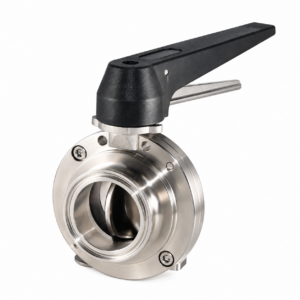

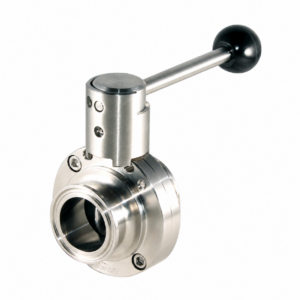

Wayland’s HX Series is a family of sanitary butterfly valves with clamp and butt-weld connections. Start with the connection family above, then use the product options to select the valve size, alloy, seat and operator.

The HX reference guide lists manual trigger and pull handles, a hand-wheel gear operator, and pneumatic spring-return and double-acting configurations. Available combinations depend on the selected product. Confirm the required fail position for an actuated assembly.

EPDM, silicone and FKM seat options are described in the HX specification. Use the specification’s pressure-temperature information for the selected size, seat and service conditions. Contact Wayland to confirm application requirements and HX replacement-part compatibility.

HX Series Specification (PDF) · HX Installation, Operation & Maintenance Manual (PDF) · HX Selection Support
