Sanitary Stainless Steel Tubing
Polished and unpolished 304L and 316L stainless steel tubing for sanitary and general process applications.
Choose the Tubing for Your Process
Start with the required surface finish, then select the size, alloy and project documentation.
Polished Sanitary Tubing
Polished stainless steel tubing for sanitary systems requiring smooth, cleanable product-contact surfaces.
- ½"–12"
- 304L
- 316L
- 3-A Certified

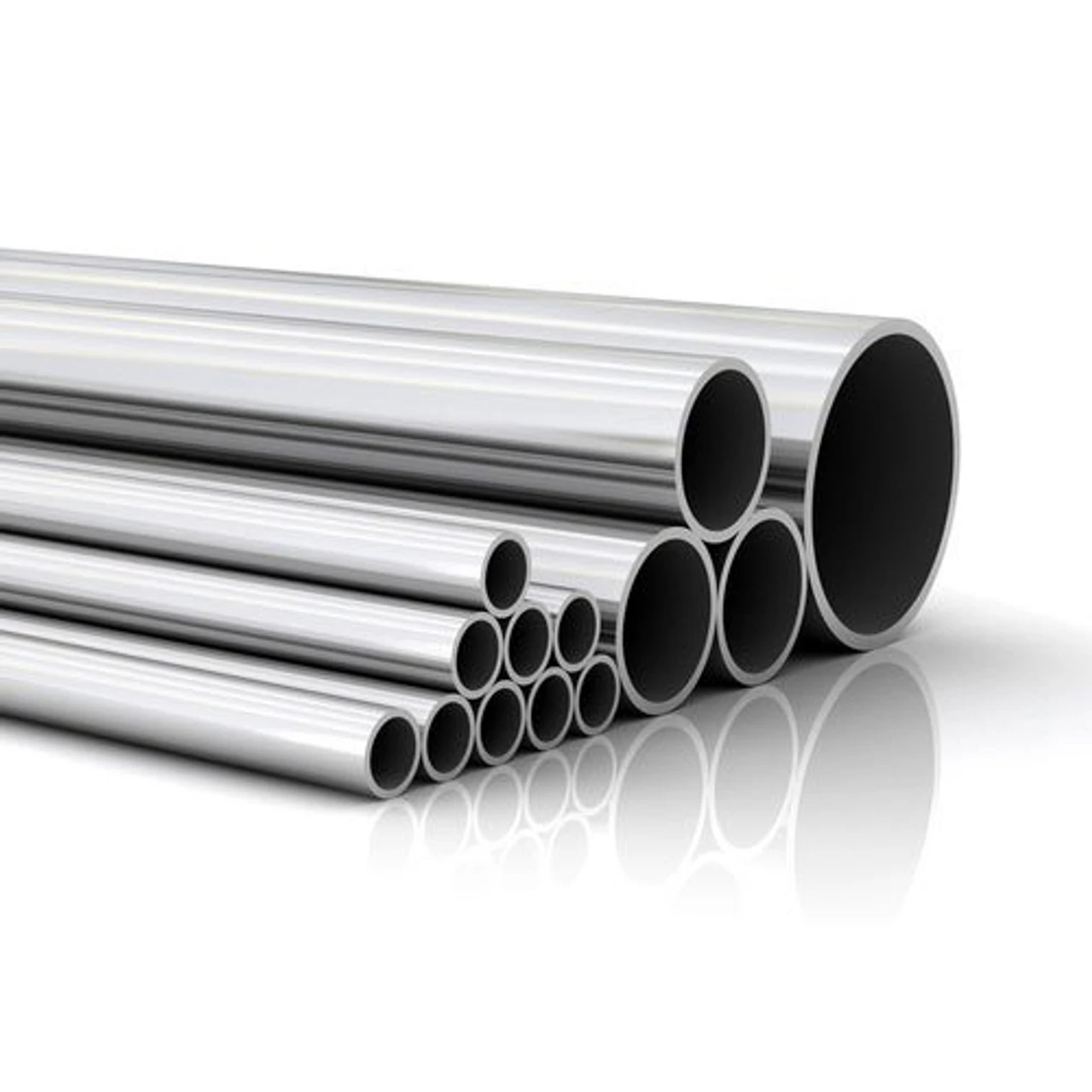

Unpolished Stainless Tubing
Unpolished stainless steel tubing for applications where a mechanically polished sanitary finish is not required. Available upon request.
- 1"–12"
- 304L
- 316L
- A249/A269 & A778
Tubing Specifications & Selection
Select Wayland tubing by size, alloy and finish for the requirements of the process line.
| Specification | Wayland Tubing |
|---|---|
| Tube sizes | ½"–12" |
| Grades | 304L / 316L stainless steel |
| ½"–8" polished | ASTM A249 / A269 / A270 · 3-A 33-03 #3845 · 20Ra ID / 32Ra OD |
| 10"–12" polished | ASTM A778 · 32Ra ID / 32Ra OD |
| Standard wall | ½"–3": .065 · 4"–5": .083 · 6"–12": .109 |
| Standard length | 20-ft lengths only |
| Unpolished tubing | 1"–8": ASTM A249/A269 · 10"–12": ASTM A778 · available upon request |
| Packaging | Protective poly sleeves and end caps · heavy-duty tri-wall boxes · wooden crates available |
Tubing Weights & Operating Pressures
Weights and pressure data by tube outside diameter.
Supporting Tubing Products
Support, connect and complete sanitary process tubing installations with related Wayland product families.

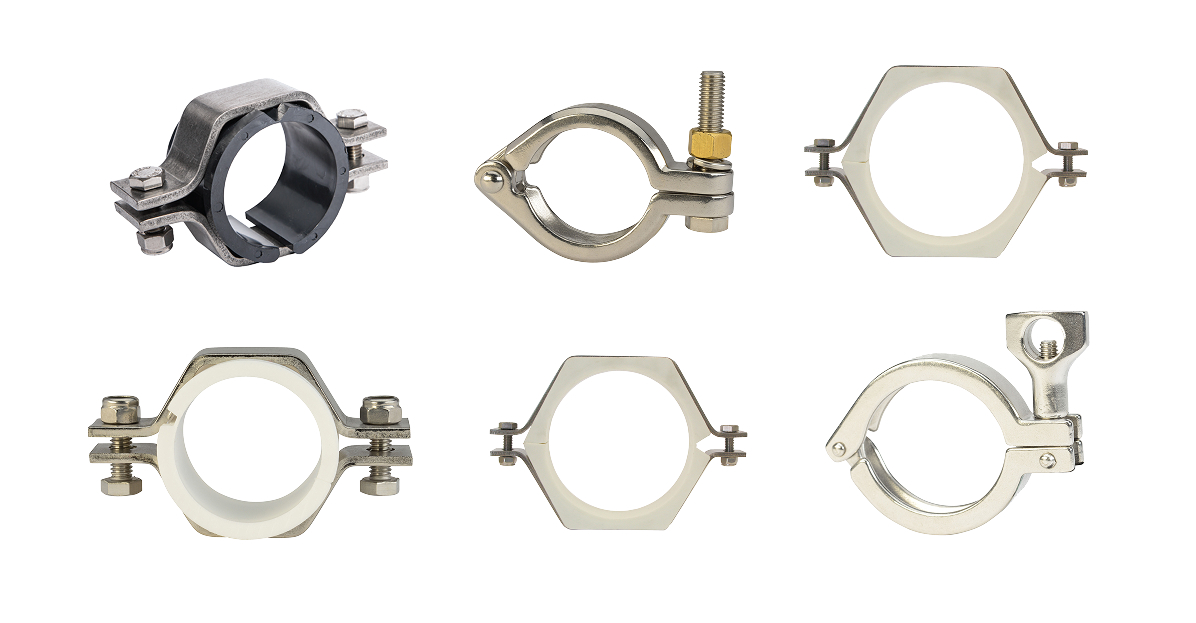

Tube & Pipe Hangers
Stainless support systems for horizontal and vertical tubing installations.

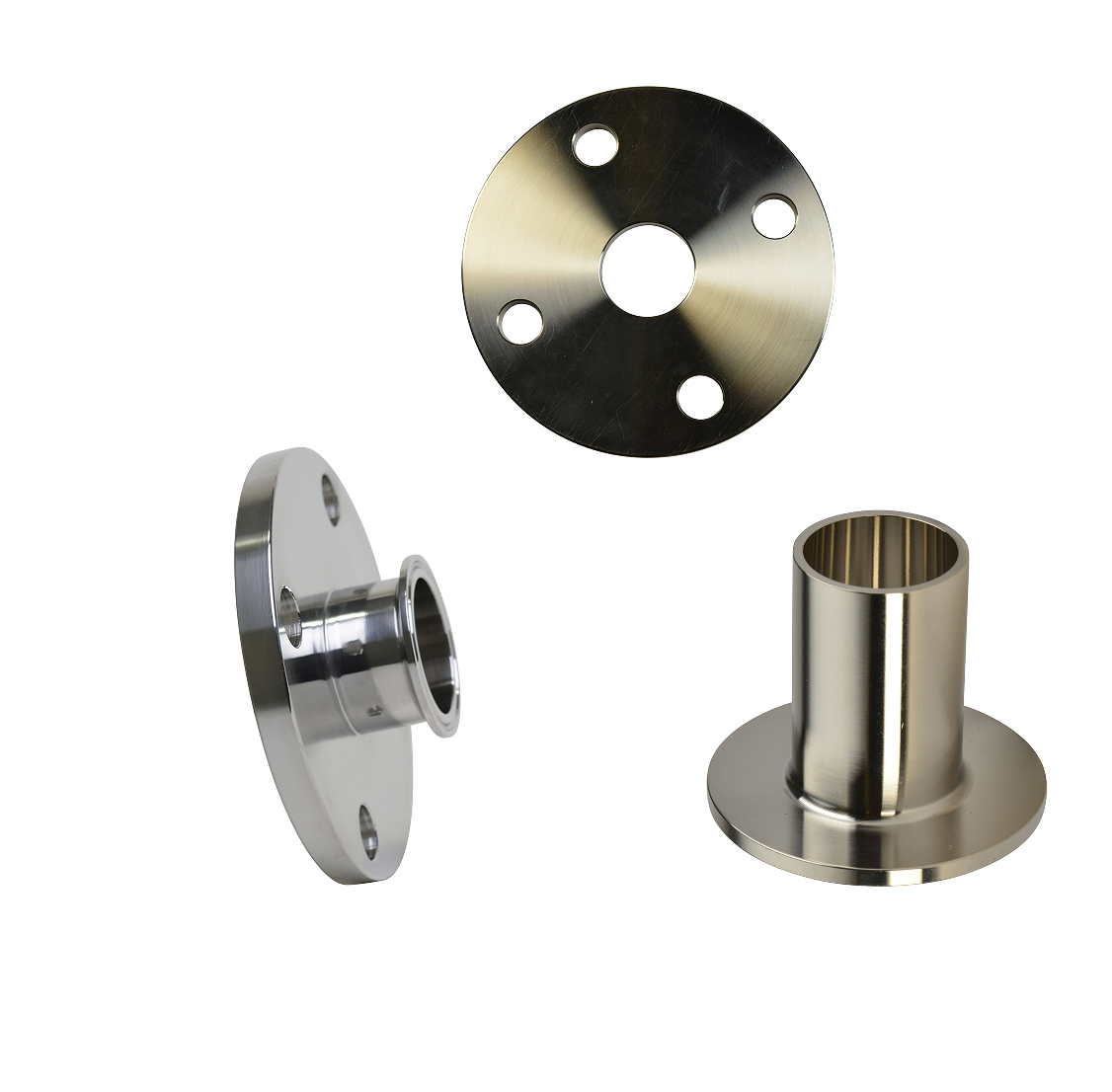

Flanges & Stub Ends
Connection options for integrating sanitary tubing with equipment and piping.
Spray Balls
Sanitary cleaning components for internal vessel wash coverage.

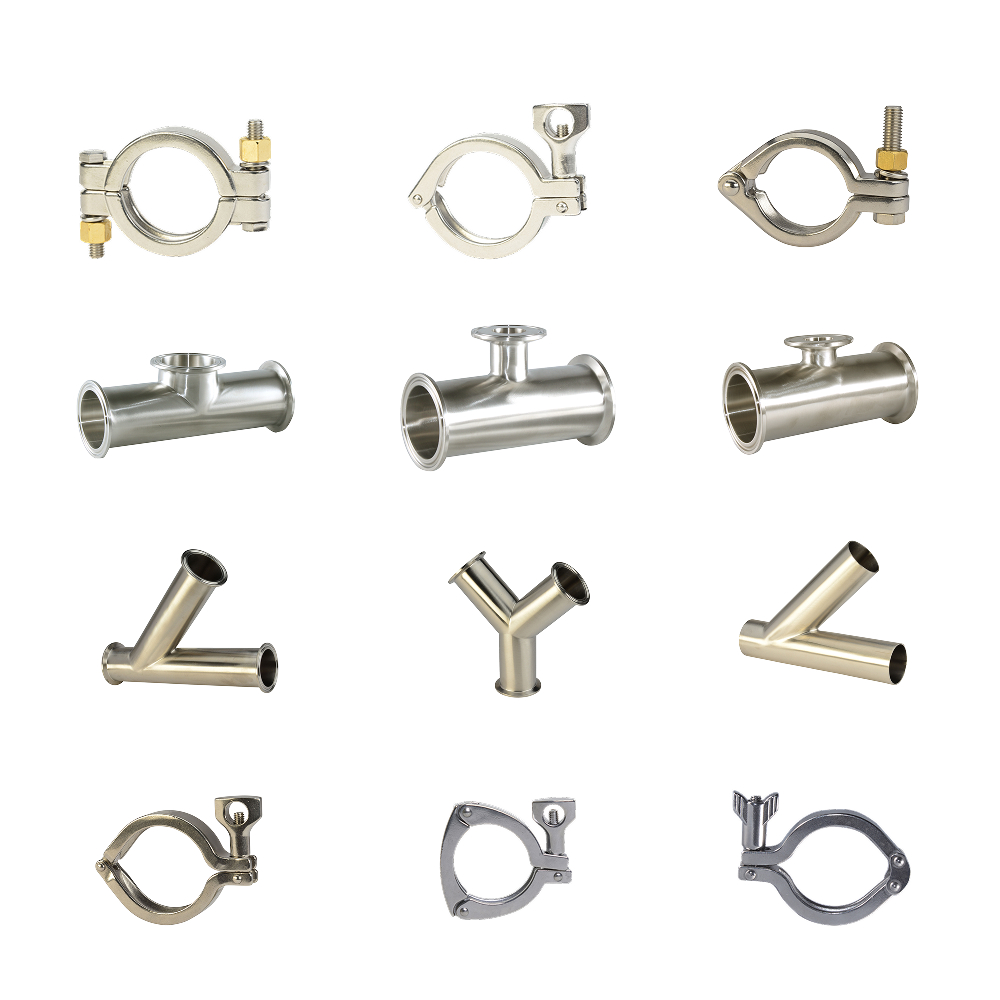

Clamps & Fittings
Removable connections for assembly, service and cleaning access.
Sanitary Tubing FAQ
Polished or unpolished tubing?
Polished tubing is intended for sanitary applications requiring a smooth, cleanable surface. Unpolished tubing is appropriate where a polished sanitary finish is not required.
What tubing sizes does Wayland offer?
Wayland tubing sizes cover ½ inch through 12 inches outside diameter (OD). Polished tubing is available from ½ inch through 12 inches OD, while unpolished tubing is available from 1 inch through 12 inches OD.
304L or 316L stainless steel?
Material selection should follow the process media, operating environment and project specification.
What is a 32Ra finish?
Ra means roughness average, a measurement expressed in microinches that indicates the smoothness of a stainless steel surface; a lower Ra value indicates a smoother finish. A 32Ra finish is a commonly specified 3-A sanitary surface-finish benchmark. Wayland polished tubing from ½ inch through 8 inches has a 20Ra ID and 32Ra OD finish, while 10-inch and 12-inch ASTM A778 tubing has a 32Ra ID/OD finish.
What lengths are available?
Wayland’s catalog specifies tubing in 20-foot lengths. Tubes are protected with poly sleeves and end caps and shipped in heavy-duty tri-wall boxes; wooden crates are available at additional cost.
Are tubing hangers available?
Yes. Wayland supplies tube and pipe hangers with stainless hardware and multiple insert and grommet options.
Are Material Test Reports available?
Yes. Material Test Reports are available for applicable Wayland tubing. Email info@waylandindustries.com with the product information or heat number to request an MTR.
