45° Weld x Plain Bevel Seat With Hex Nut (2KP)
- 45° Weld x Plain Bevel Seat With Hex Nut for sanitary process connections
- Stainless steel options: 304 and 316L
- Available sizes: 6 listed size options
- Selection reference: existing product graphic and linked size and part-number table below
Wayland offers the 2KP 45° weld to plain bevel seat elbow with hex nut in 304 or 316L stainless steel. Use the existing product graphic and linked part-number table to identify the required configuration.

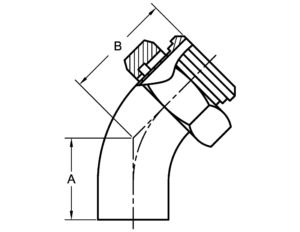

45° Bevel Seat Elbow Reference
Existing product drawing or sizing graphic. Click to view it at full size.

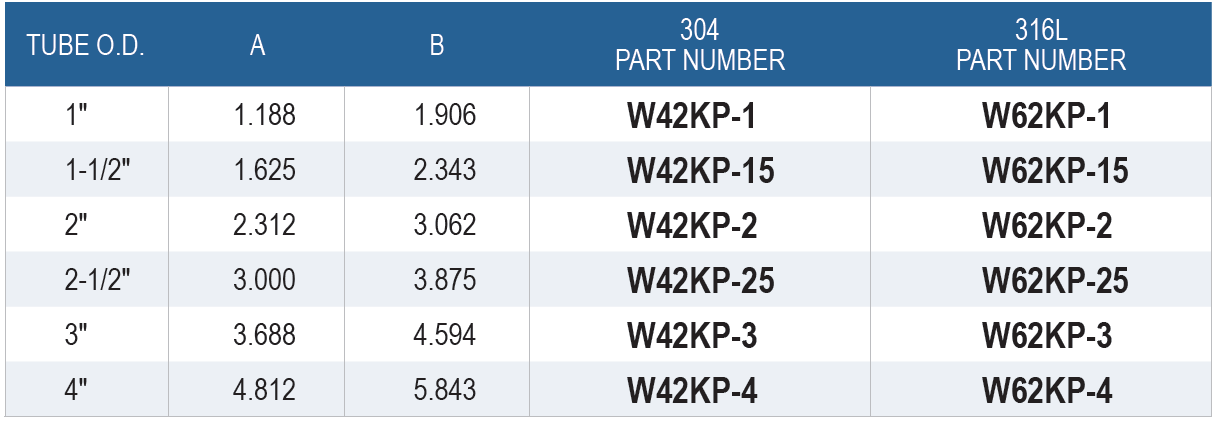

Size and Part Number Reference
Choose a size and alloy. Each part number opens the matching product variation.
| Size | Part Number |
|---|---|
| 1″ | 304: W42KP-1 316L: W62KP-1 |
| 1-1/2″ | 304: W42KP-15 316L: W62KP-15 |
| 2″ | 304: W42KP-2 316L: W62KP-2 |
| 2-1/2″ | 304: W42KP-25 316L: W62KP-25 |
| 3″ | 304: W42KP-3 316L: W62KP-3 |
| 4″ | 304: W42KP-4 316L: W62KP-4 |
Product Support & Distributor Inquiries
Confirm the connection style, size and alloy when planning your assembly. Explore bevel seat fittings and the sanitary fittings range, or contact Wayland for help identifying product documentation.
