Actuated 3-Piece Encapsulated Clamp Ball Valve (W6BVETC-A)

Rack-and-pinion pneumatic actuation
Clamp process connections
40-120 PSI air supply through 1/4" NPT ports
-40°F to +300°F operating range
Double-acting, normally closed and normally open options
ISO 5211 direct valve interface

Actuation Type

Actuator Configuration

Clear

Add to RFQ Cart

SKU: W6BVETC-A Category: Ball Valves

Actuated Clamp Encapsulated Ball Valve

Wayland W6BVETC-A combines a three-piece encapsulated sanitary ball valve with a rack-and-pinion pneumatic actuator for automated quarter-turn control. It features clamp process connections and is available in double-acting, normally closed and normally open configurations.

Features

304 and 316L stainless steel valve materials
Field-serviceable construction for quick maintenance
All wetted surfaces finished to 32 Ra or better
ISO 5211 direct valve interface for standard mounting
1/4" NPT air-supply ports
40-120 PSI air-supply pressure
Operating temperature range of -40°F to +300°F
Double-acting, normally closed and normally open configurations

Design Highlights

Compact, corrosion-resistant body construction
Double-acting pneumatic operation with spring-return options
Mechanical open/closed indicator
Standard or reverse rotation configuration
Modular, configurable design for accessory integration

Dimensions & Actuator Sizing

Use the drawing and valve dimensions below to compare process connection sizes. The actuator envelope chart lists standard actuator models and overall dimensions by valve size and actuation type.

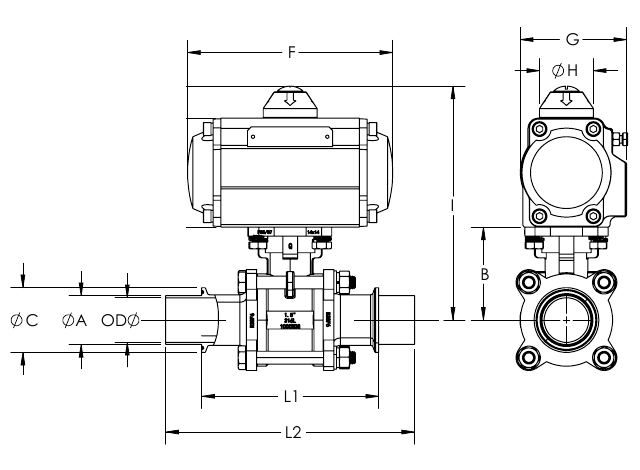

Dimensional line drawing of a Wayland actuated three-piece ball valve — Dimensions shown in inches. Drawing applies to clamp and butt-weld configurations.

Valve dimensions by size (inches)

Size	OD	A	B	C
1/2"	0.50	0.37	1.42	0.99
3/4"	0.75	0.62	1.67	0.99
1"	1.00	0.87	2.07	1.99
1-1/2"	1.50	1.37	2.85	1.99
2"	2.00	1.87	3.13	2.52
2-1/2"	2.50	2.37	3.74	3.05
3"	3.00	2.87	4.35	3.58
4"	4.00	3.83	5.04	4.68

Actuator dimensions by valve size and type (inches)

Valve size	Actuator type	Standard actuator	D	E	F	G	H	I	L1	L2
1/2"	Double acting	RPA050DA	2.68	3.58	5.83	2.75	1.57	5.00	3.54	4.72
1/2"	Spring return	RPA050SR11	2.68	3.58	5.83	2.75	1.57	5.00	3.54	4.72
3/4"	Double acting	RPA050DA	2.68	3.58	5.83	2.75	1.57	5.25	4.02	6.14
3/4"	Spring return	RPA050SR11	2.68	3.58	5.83	2.75	1.57	5.25	4.02	6.14
1"	Double acting	RPA050DA	2.68	3.58	5.83	2.75	1.57	5.65	4.53	6.46
1"	Spring return	RPA063SR11	3.30	4.21	6.26	3.27	1.57	6.28	4.53	6.46
1-1/2"	Double acting	RPA063DA	3.30	4.21	6.26	3.27	1.57	7.06	5.43	7.64
1-1/2"	Spring return	RPA075SR11	4.02	4.88	8.39	3.82	2.36	7.73	5.43	7.64
2"	Double acting	RPA075DA	4.02	4.88	8.39	3.82	1.57	8.01	6.14	8.74
2"	Spring return	RPA100SR11	5.04	5.87	10.67	4.80	2.36	9.00	6.14	8.74
2-1/2"	Double acting	RPA085DA	4.56	5.43	9.80	4.17	1.57	9.17	6.69	9.25
2-1/2"	Spring return	RPA115SR11	5.74	6.89	12.40	5.55	2.36	10.63	6.69	9.25
3"	Double acting	RPA100DA	5.04	5.87	10.67	4.80	1.57	10.22	7.76	9.76
3"	Spring return	RPA115SR11	5.74	6.89	12.40	5.55	2.36	11.24	7.76	9.76
4"	Double acting	RPA100DA	5.04	5.87	10.67	4.80	1.57	10.91	9.53	12.80
4"	Spring return	RPA125SR11	6.22	7.48	13.62	8.22	2.36	12.52	9.53	12.80

Actuator sizing is based on an 80 PSI air supply; valve torque at maximum ΔP; clean media; and ambient temperature.

Jump to the clickable valve configuration and part number chart ↓

Available Configurations

Select a part number to open this product with its valve size, actuation type and actuator configuration selected.

Valve size	Double acting	Spring return — standard	Spring return — oversized
1/2"	W6BVETC-P-.50-R2	NC: W6BVETC-P-.50-R1NC NO: W6BVETC-P-.50-R1NO	—
3/4"	W6BVETC-P-.75-R2	NC: W6BVETC-P-.75-R1NC NO: W6BVETC-P-.75-R1NO	—
1"	W6BVETC-P-1-R2	NC: W6BVETC-P-1-R1NC NO: W6BVETC-P-1-R1NO	—
1-1/2"	W6BVETC-P-15-R2	NC: W6BVETC-P-15-R1NC NO: W6BVETC-P-15-R1NO	—
2"	W6BVETC-P-2-R2	NC: W6BVETC-P-2-R1NC NO: W6BVETC-P-2-R1NO	—
2-1/2"	W6BVETC-P-25-R2	NC: W6BVETC-P-25-R1NC NO: W6BVETC-P-25-R1NO	NC: W6BVETC-P-25-R12NC NO: W6BVETC-P-25-R12NO
3"	W6BVETC-P-3-R2	NC: W6BVETC-P-3-R1NC NO: W6BVETC-P-3-R1NO	NC: W6BVETC-P-3-R12NC NO: W6BVETC-P-3-R12NO
4"	W6BVETC-P-4-R2	NC: W6BVETC-P-4-R1NC NO: W6BVETC-P-4-R1NO	NC: W6BVETC-P-4-R12NC NO: W6BVETC-P-4-R12NO

Oversized spring-return configurations are published for 2-1/2", 3" and 4" valves.

How to Specify

Wayland actuated-ball-valve part numbers combine the valve body, actuator family, optional actuator configuration and operating mode.

R1 identifies an RPA spring-return actuator.
R2 identifies an RPA double-acting actuator.
Option 1 identifies reverse (clockwise) rotation.
Option 2 identifies the next larger actuator size.
NC means normally closed; NO means normally open. Double-acting configurations do not use an operating-mode suffix.

Ordering example: W6BVETC-P-1-R1NC specifies a 1-inch 316L clamp encapsulated ball valve with PTFE seats and seals, an RPA063SR11 spring-return actuator and normally closed operation.

For reverse-rotation or oversized-actuator options, confirm the complete ordering suffix with Wayland.
