Clamp Cross (9MP)
- Clamp Cross for sanitary process connections
- Stainless steel alloy: 316L
- Available sizes: 9 listed size options
- Technical reference: Wayland dimensional drawing and linked size and part-number table below

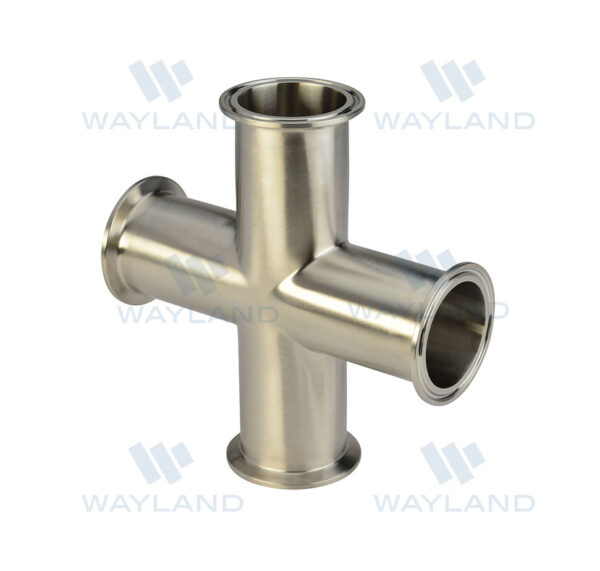

Wayland offers the 9MP clamp cross in 316L stainless steel.

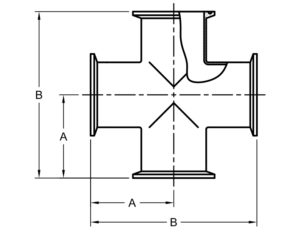

Clamp Cross CAD Drawing
Official Wayland dimensional drawing. Click the image to view it larger; use the drawing PDF button above to open the full sheet.
STEP File Reference
Choose a size and alloy from the product options below. Part numbers link to the matching product variation.
8 models
| Size | Part Number | STEP file |
|---|---|---|
| 1/2″ | W69MP-.50 | 9mp-.50.step |
| 1″ | W69MP-1 | 9mp-1.step |
| 1-1/2″ | W69MP-15 | 9mp-15.step |
| 2″ | W69MP-2 | 9mp-2.step |
| 2-1/2″ | W69MP-25 | 9mp-25.step |
| 3″ | W69MP-3 | 9mp-3.step |
| 4″ | W69MP-4 | 9mp-4.step |
| 6″ | W69MP-6 | 9mp-6.step |
Product Support & Distributor Inquiries
Confirm the connection style, size and alloy when planning your assembly. Explore clamp fittings and the sanitary fittings range, or contact Wayland for help identifying product documentation.
