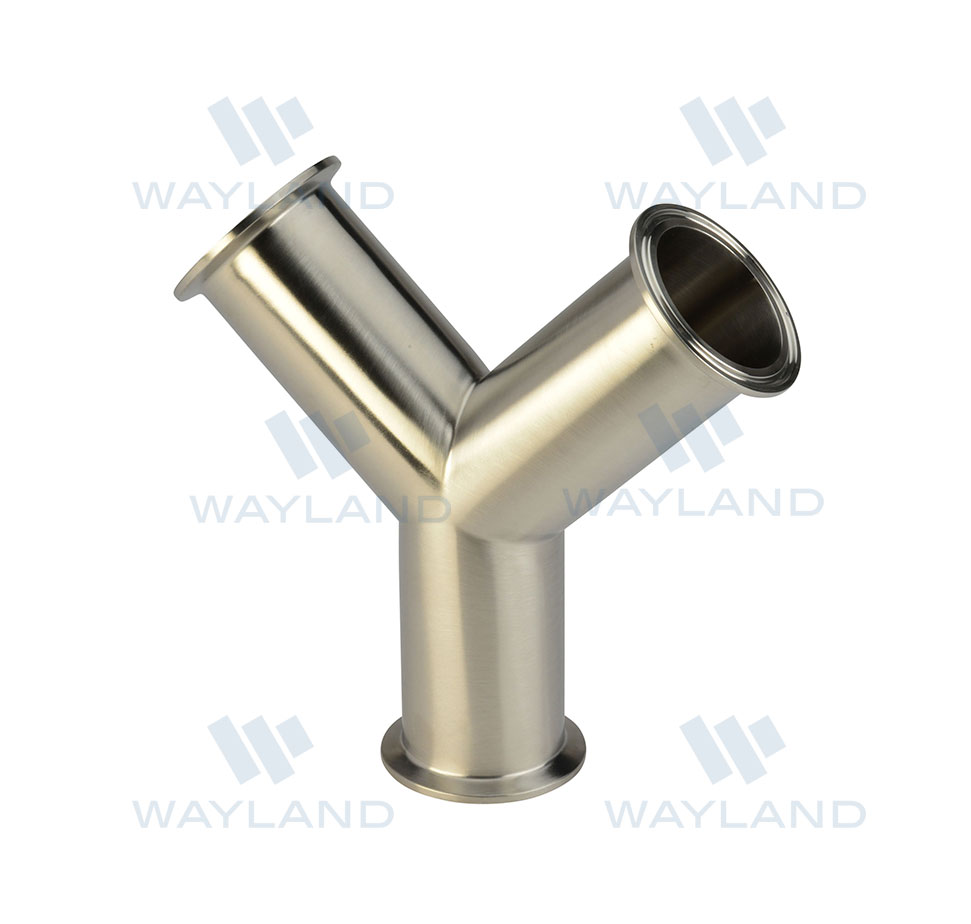

Clamp True Wye (28BMP)
Available in 316L
Surface Finish: 32Ra
3-A Sanitary Certified
Size
Choose an option
1"
1-1/2"
2"
2-1/2"
3"
4"
6"
Alloy
Choose an option
316L
Clear
Clamp True Wye (28BMP) quantity
Add to cart
Add to RFQ Cart
This product is already in quote request list
Browse the list
SKU:
28BMP
Categories:
Fittings
,
Tri-Clamp Fittings
,
True Wyes
Clamp True Wye (28BMP)

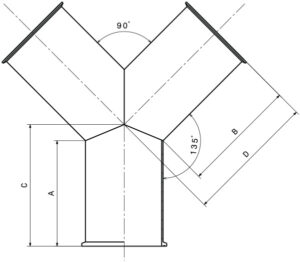

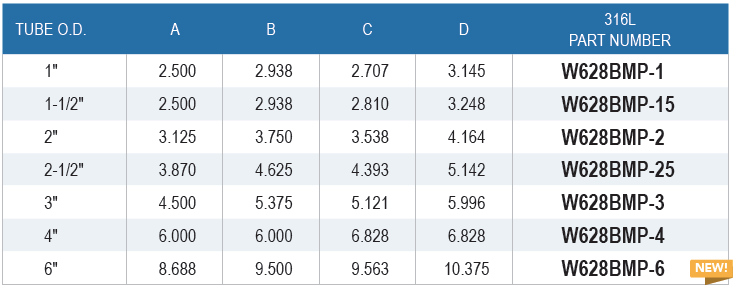

Product Data Table
Part Number Cross Reference
Wayland
Alfa Laval
Dixon
VNE
Topline
Sanitary Solutions
W28BMP
B28BMP
B28BMP
EG28B
28BMP
SS28BMP
