DIN Round Nut (13R-DIN)


  • 304 stainless steel DIN round nut
  • Six published size options
  • View the drawing and linked part-number reference below
  • Download Product Drawings






Wayland offers the 13R-DIN 304 stainless steel DIN round nut.

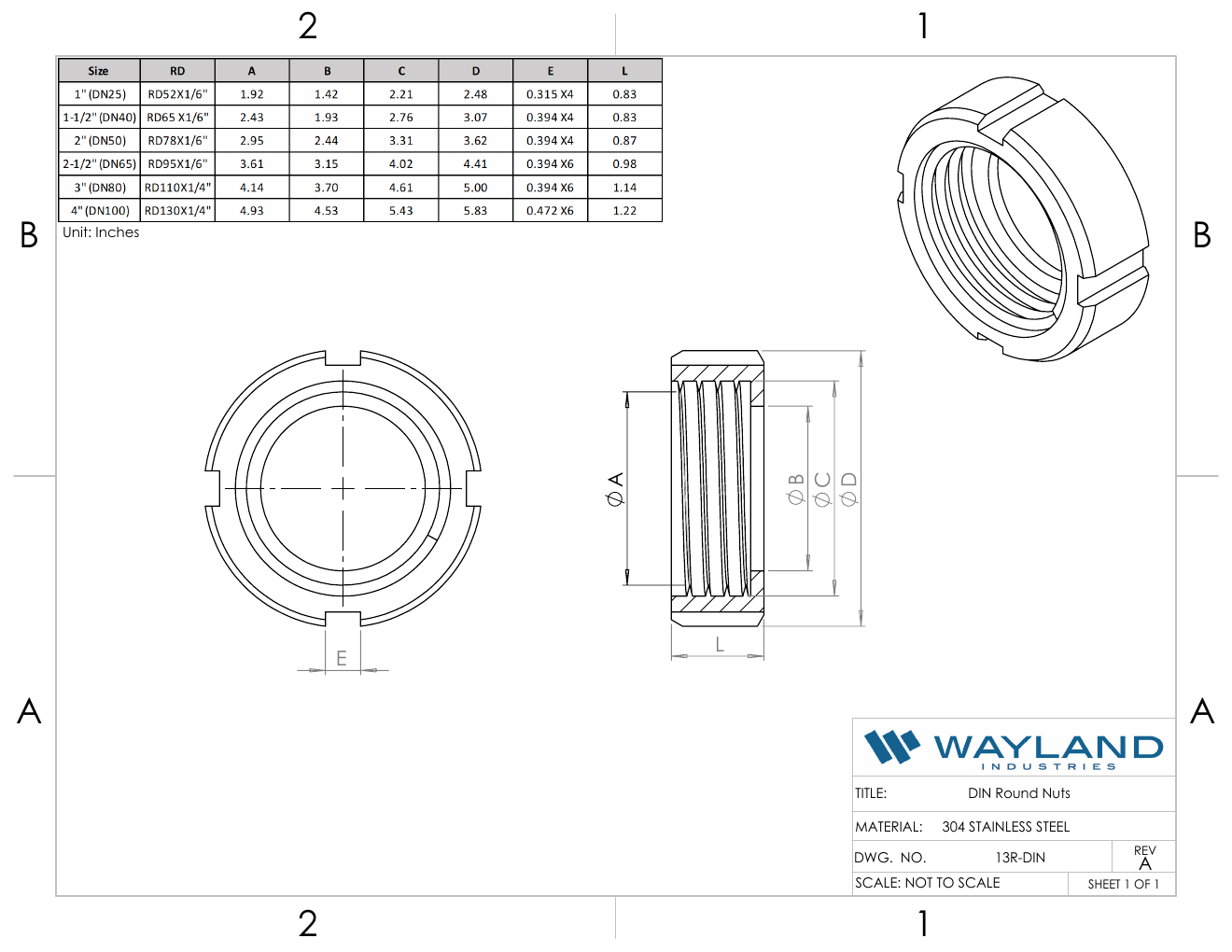

DIN Round Nut CAD Drawing

Official Wayland dimensional drawing. Click to view the full drawing sheet.

Wayland 13R-DIN DIN round nut CAD drawing

Size and Part Number Reference

Click a part number to open the matching product variation.

Size Part Number STEP file
1″ W413R-DIN-1 13R-DIN-1.STEP
1-1/2″ W413R-DIN-15 13R-DIN-1.5.STEP
2″ W413R-DIN-2 13R-DIN-2.STEP
2-1/2″ W413R-DIN-25 13R-DIN-2.5.STEP
3″ W413R-DIN-3 13R-DIN-3.STEP
4″ W413R-DIN-4 13R-DIN-4.STEP

Product Support & Distributor Inquiries

Match the hardware or tool to the fitting style, size and listed part number. Explore DIN Fittings and related sanitary fittings, or contact Wayland for help identifying product documentation.
