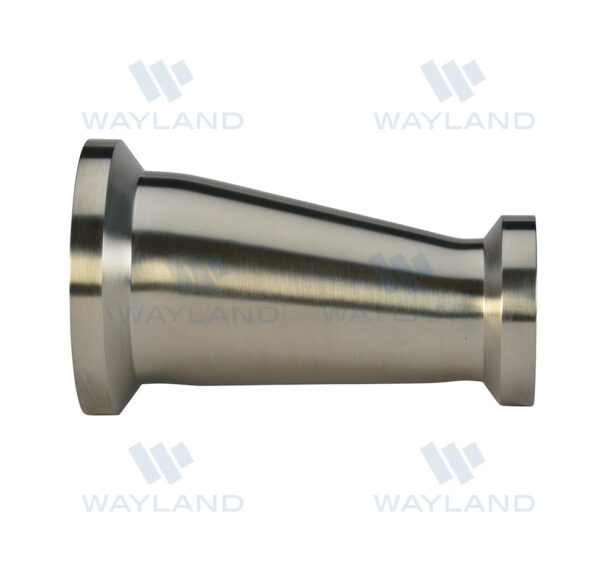

Female I-Line Eccentric Reducer (3215I-15I)
- Female I-Line Eccentric Reducer for sanitary process connections
- Stainless steel options: 304 and 316L
- Available sizes: 13 listed size options
- Selection reference: existing product graphic and linked size and part-number table below
The 3215I-15I female i-line eccentric reducer is available in the alloy and size options shown above. Use the existing product graphic and linked part-number table to identify the required configuration.
3215I-15I Product Reference

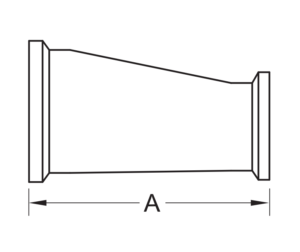

Existing product drawing or sizing graphic. Click to view it at full size.

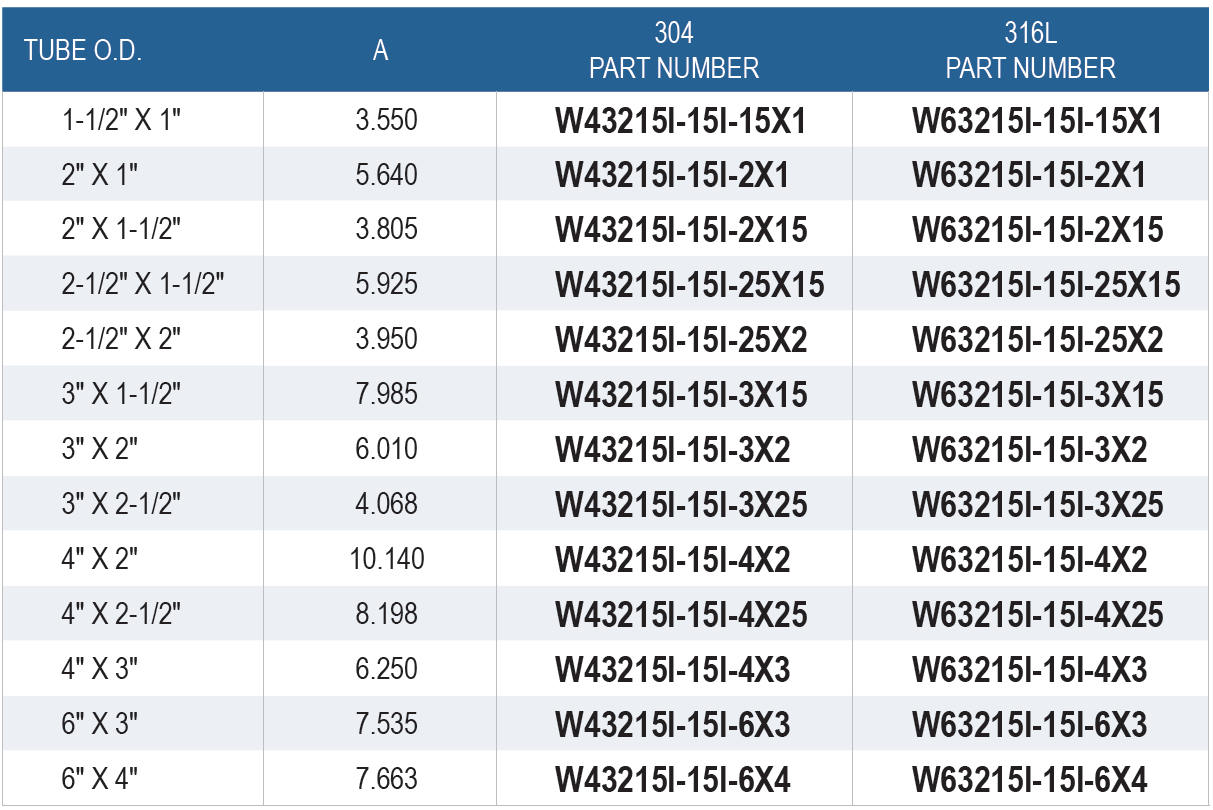

Size and Part Number Reference
Choose a size and alloy. Each part number opens the matching product variation.
| Size | Part Number |
|---|---|
| 1-1/2″ X 1″ | 304: W43215I-15I-15X1 316L: W63215I-15I-15X1 |
| 2″ X 1″ | 304: W43215I-15I-2X1 316L: W63215I-15I-2X1 |
| 2″ X 1-1/2″ | 304: W43215I-15I-2X15 316L: W63215I-15I-2X15 |
| 2-1/2″ X 1-1/2″ | 304: W43215I-15I-25X15 316L: W63215I-15I-25X15 |
| 2-1/2″ X 2″ | 304: W43215I-15I-25X2 316L: W63215I-15I-25X2 |
| 3″ X 1-1/2″ | 304: W43215I-15I-3X15 316L: W63215I-15I-3X15 |
| 3″ X 2″ | 304: W43215I-15I-3X2 316L: W63215I-15I-3X2 |
| 3″ X 2-1/2″ | 304: W43215I-15I-3X25 316L: W63215I-15I-3X25 |
| 4″ X 2″ | 304: W43215I-15I-4X2 316L: W63215I-15I-4X2 |
| 4″ X 2-1/2″ | 304: W43215I-15I-4X25 316L: W63215I-15I-4X25 |
| 4″ X 3″ | 304: W43215I-15I-4X3 316L: W63215I-15I-4X3 |
| 6″ X 3″ | 304: W43215I-15I-6X3 316L: W63215I-15I-6X3 |
| 6″ X 4″ | 304: W43215I-15I-6X4 316L: W63215I-15I-6X4 |
Product Support & Distributor Inquiries
Confirm the connection style, size and alloy when planning your assembly. Explore I-Line fittings and the sanitary fittings range, or contact Wayland for help identifying product documentation.
