Male Run x Female Outlet Tee (7EI)
- Male Run x Female Outlet Tee for sanitary process connections
- Stainless steel options: 304 and 316L
- Available sizes: 8 listed size options
- Selection reference: existing product graphic and linked size and part-number table below
Wayland offers the 7EI tee with male I-Line run and female outlet in 304 or 316L stainless steel. Use the existing product graphic and linked part-number table to identify the required configuration.

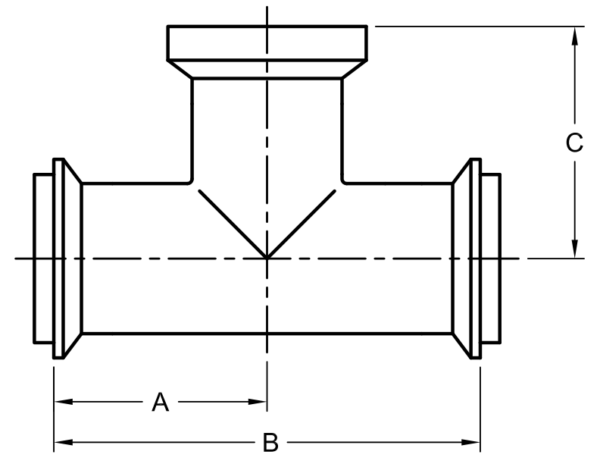

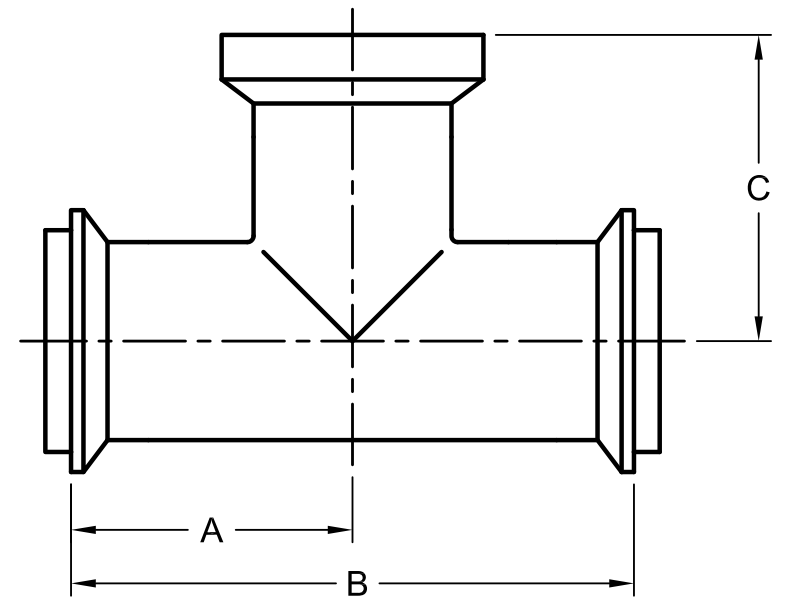

Male Run I-Line Tee Reference
Existing product drawing or sizing graphic. Click to view it at full size.
Size and Part Number Reference
Choose a size and alloy. Each part number opens the matching product variation.
| Size | Part Number |
|---|---|
| 1″ | 304: W47EI-1 316L: W67EI-1 |
| 1-1/2″ | 304: W47EI-15 316L: W67EI-15 |
| 2″ | 304: W47EI-2 316L: W67EI-2 |
| 2-1/2″ | 304: W47EI-25 316L: W67EI-25 |
| 3″ | 304: W47EI-3 316L: W67EI-3 |
| 4″ | 304: W47EI-4 316L: W67EI-4 |
| 6″ | 304: W47EI-6 316L: W67EI-6 |
| 8″ | 304: W47EI-8 316L: W67EI-8 |
Product Support & Distributor Inquiries
Confirm the connection style, size and alloy when planning your assembly. Explore I-Line fittings and the sanitary fittings range, or contact Wayland for help identifying product documentation.
