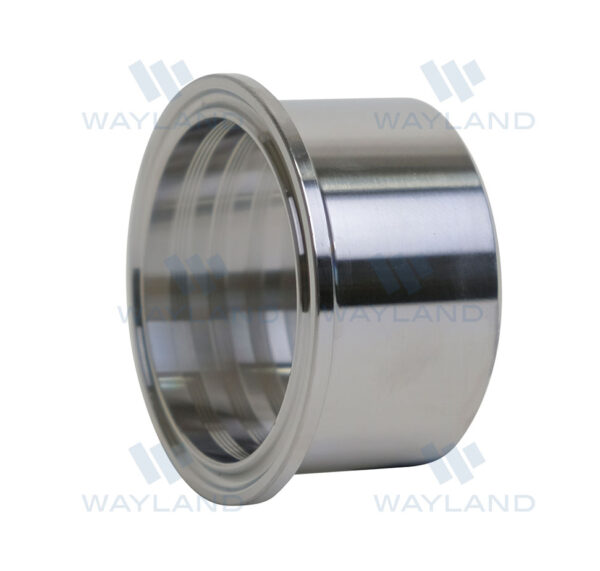

Roll-On Ferrule (14RMP)


The 14RMP roll-on ferrule connects a sanitary clamp end to a process line. Select alloy and size from the options below.

  • Roll-on ferrule configuration
  • Available 304 and 316L stainless steel options
  • 7 size-specific STEP models listed below
  • Download CAD/STEP Files






Wayland offers the 14RMP roll-on ferrule in available 304 and 316L stainless steel options.

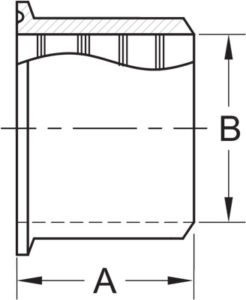

Roll-on Ferrule CAD Drawing

Official Wayland dimensional drawing. Click the image to view it larger; use the drawing PDF button above to open the full sheet.

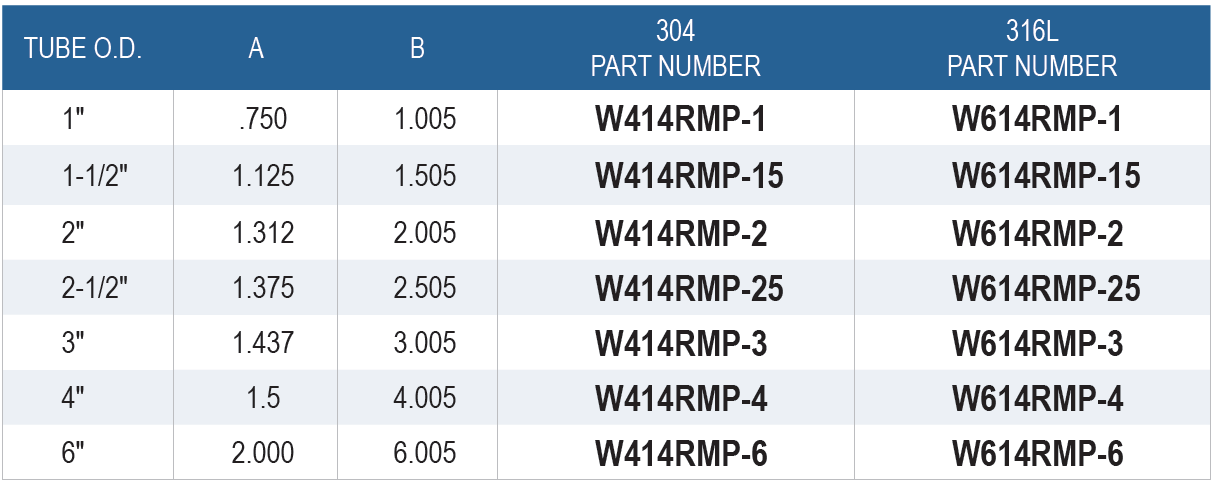

Official Wayland 14RMP dimensional drawing and size chart

STEP File Reference

Choose a size and alloy from the product options below. Part numbers link to the matching product variation.

7 models

Size Part Number STEP file
1" 304: W414RMP-1
316L: W614RMP-1
14rmp-1.step
1-1/2" 304: W414RMP-15
316L: W614RMP-15
14rmp-15.step
2" 304: W414RMP-2
316L: W614RMP-2
14rmp-2.step
2-1/2" 304: W414RMP-25
316L: W614RMP-25
14rmp-25.step
3" 304: W414RMP-3
316L: W614RMP-3
14rmp-3.step
4" 304: W414RMP-4
316L: W614RMP-4
14rmp-4.step
6" 304: W414RMP-6
316L: W614RMP-6
14rmp-6.step

Product Support & Distributor Inquiries

Confirm the connection style, size and alloy when planning your assembly. Explore clamp fittings and the sanitary fittings range, or contact Wayland for help identifying product documentation.
