Sight Glass End Caps (16AMP-SGL)


  • Sanitary sight glass end cap for clamp-end assemblies.
  • Choose acrylic plastic or polycarbonate.
  • Six size options cover 1" and 1-1/2" through 6" tube O.D.






Wayland 16AMP-SGL sight glass end caps are available in acrylic plastic or polycarbonate. Use the dimensional reference and linked part numbers to choose the matching size and material.

16AMP-SGL Dimensional Reference

The existing size chart identifies dimensions A and B. Click the image to view it at full size.

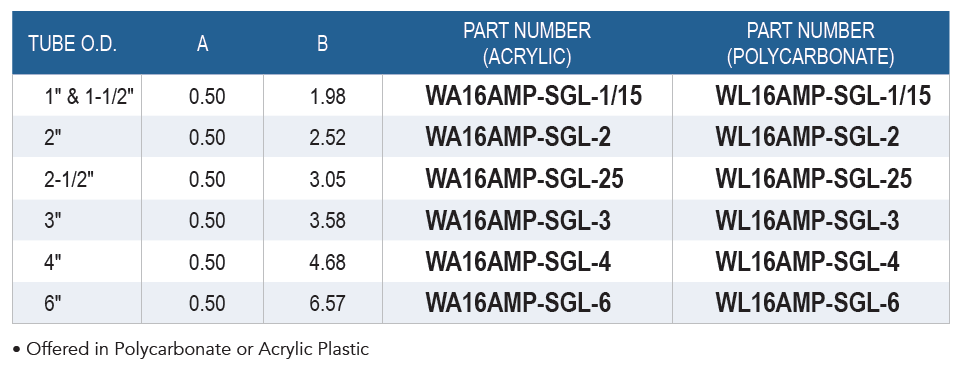

16AMP-SGL sight glass end cap dimension chart

Size and Part Number Reference

Dimensions A and B are in inches. Select a part number to open the matching product variation.

Tube O.D. A / B Part number
1″ & 1-1/2″ 0.50 / 1.98 Acrylic: WA16AMP-SGL-1/15
Polycarbonate: WL16AMP-SGL-1/15
2″ 0.50 / 2.52 Acrylic: WA16AMP-SGL-2
Polycarbonate: WL16AMP-SGL-2
2-1/2″ 0.50 / 3.05 Acrylic: WA16AMP-SGL-25
Polycarbonate: WL16AMP-SGL-25
3″ 0.50 / 3.58 Acrylic: WA16AMP-SGL-3
Polycarbonate: WL16AMP-SGL-3
4″ 0.50 / 4.68 Acrylic: WA16AMP-SGL-4
Polycarbonate: WL16AMP-SGL-4
6″ 0.50 / 6.57 Acrylic: WA16AMP-SGL-6
Polycarbonate: WL16AMP-SGL-6

Product Support & Distributor Inquiries

Compare the listed connection size, materials and dimensions when planning your assembly. Explore Accessories and related sanitary fittings, or contact Wayland for help identifying product documentation.
