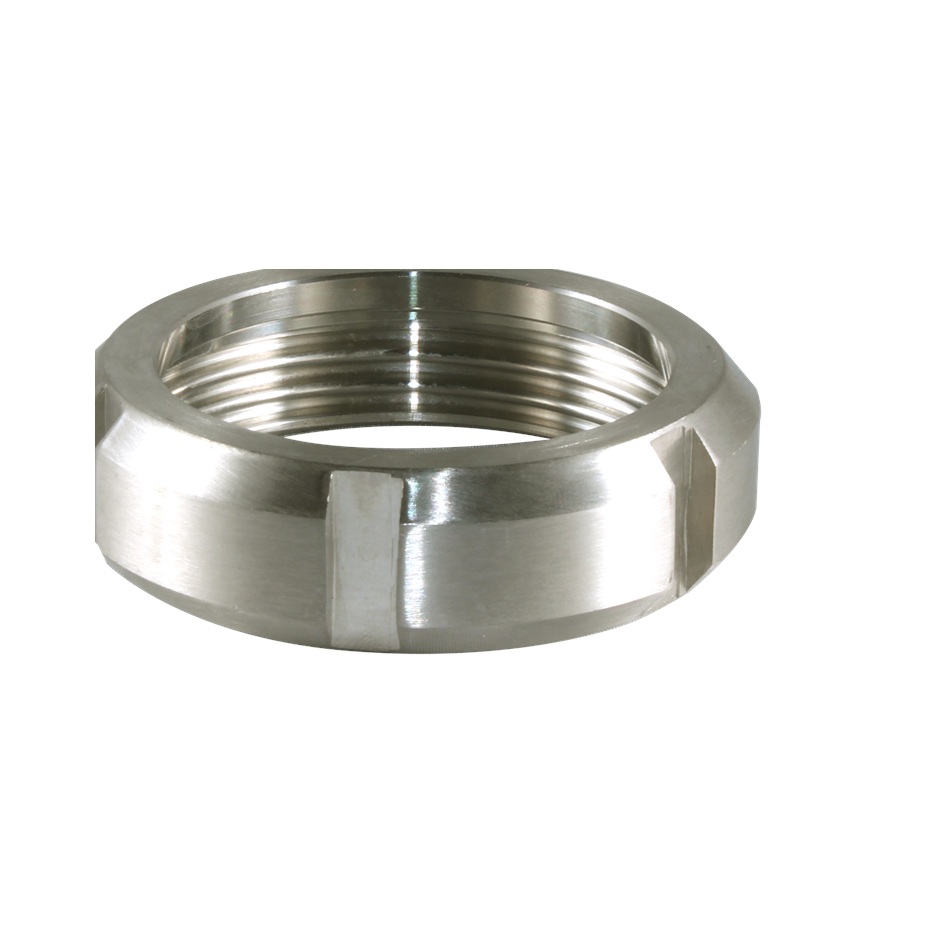

SMS Round Nut (13R-SMS)


  • 304 stainless steel SMS round nut
  • Six published size options
  • View the drawing and linked part-number reference below
  • Download Product Drawings






Wayland offers the 13R-SMS 304 stainless steel SMS round nut.

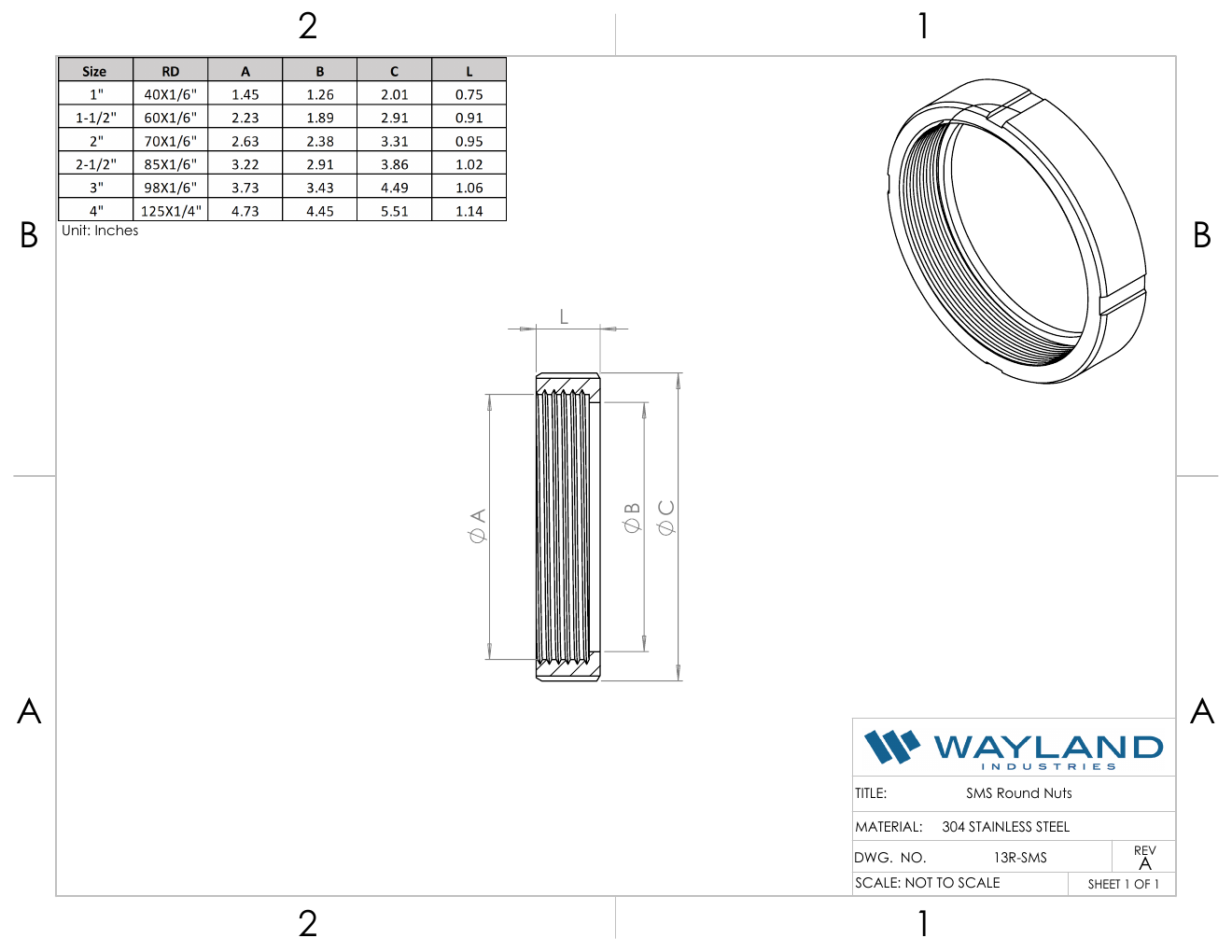

SMS Round Nut CAD Drawing

Official Wayland dimensional drawing. Click to view the full drawing sheet.

Wayland 13R-SMS SMS round nut CAD drawing

Size and Part Number Reference

Click a part number to open the matching product variation.

Size Part Number STEP file
1″ W413R-SMS-1 13R-SMS-1.STEP
1-1/2″ W413R-SMS-15 13R-SMS-1.5.STEP
2″ W413R-SMS-2 13R-SMS-2.STEP
2-1/2″ W413R-SMS-25 13R-SMS-2.5.STEP
3″ W413R-SMS-3 13R-SMS-3.STEP
4″ W413R-SMS-4 13R-SMS-4.STEP

Product Support & Distributor Inquiries

Match the hardware or tool to the fitting style, size and listed part number. Explore SMS Fittings and related sanitary fittings, or contact Wayland for help identifying product documentation.
