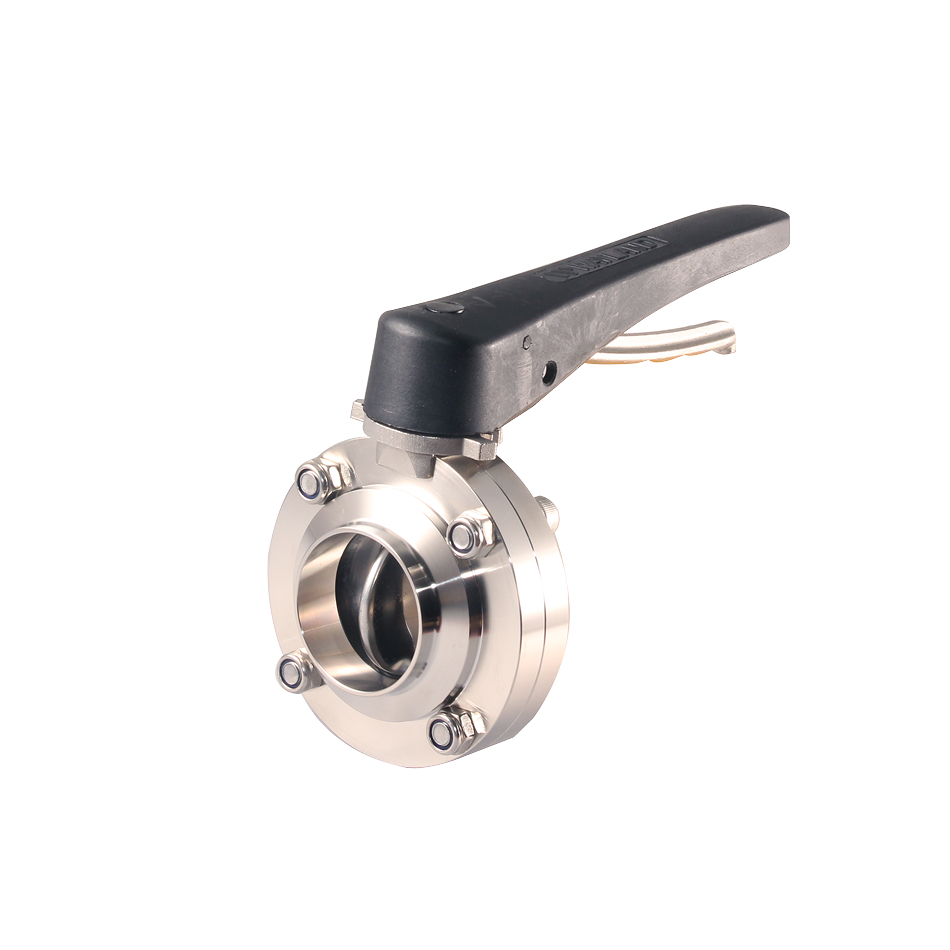

Standard Butt-Weld Butterfly Valve With Black Plastic Trigger Handle (BFVBW-TP)

Standard butt-weld sanitary butterfly valve with black plastic trigger handle
Field serviceable without special tools
Low-resistance, bi-directional flow
316L forged stainless steel body and disc
FDA-approved EPDM, silicone and FKM seats

Alloy

Handle Type

Clear

Add to RFQ Cart

Standard Butt-Weld Butterfly Valve

The Wayland BFVBW-TP is a manual sanitary butterfly valve for process flow control. It is field-serviceable, bi-directional and equipped with a black plastic trigger handle and FDA-approved EPDM, FKM or silicone seats. Choose a size and seat configuration above; this listing is configured in 316L stainless steel.

Features

Field serviceable without special tools
Vacuum rating: 0.4 in. Hg at 68°F
Low resistance to flow and bi-directional operation
Polyacetal disc bushings reduce friction
Wetted surfaces: 32 Ra or better
Trigger-handle lockout/tagout feature

Construction: 316L forged stainless-steel body and disc; FDA-approved EPDM, FKM or silicone seat; black plastic trigger handle.

Butt-Weld Dimensions

Use the dimension letters shown on the manufacturer drawing. Values are in inches.

Dimensioned line drawing for the BFVBW-TP butt-weld butterfly valve

Key dimensions by size

Size	A (in.)	B (in.)	C (in.)
1″	0.87	1.00	0.91
1-1/2″	1.37	1.50	1.38
2″	1.87	2.00	1.90
2-1/2″	2.37	2.50	2.36
3″	2.87	3.00	2.83
4″	3.83	4.00	3.94
6″	5.78	6.00	5.91

Complete butt-weld dimensional table

All listed drawing dimensions are in inches; the letter labels correspond to the drawing above.

Size	A	B	C	K	L	L1	L2	H1	H2	W
1″	0.87	1.00	0.91	0.87	1.97	6.30	5.51	3.58	3.03	3.11
1-1/2″	1.37	1.50	1.38	0.87	1.97	6.30	5.51	3.78	3.15	3.35
2″	1.87	2.00	1.90	0.87	2.05	6.30	5.51	3.86	3.46	3.94
2-1/2″	2.37	2.50	2.36	0.87	2.20	6.30	5.91	4.21	3.74	4.33
3″	2.87	3.00	2.83	0.87	2.20	6.30	5.91	4.53	4.02	4.92
4″	3.83	4.00	3.94	0.87	2.36	6.30	6.30	4.92	4.68	6.10
6″	5.78	6.00	5.91	1.02	3.54	7.48	8.46	6.30	6.30	8.46

Dimensions transcribed from the Wayland Standard Butterfly Valve specification sheet; verify fit and process requirements against the current manufacturer documentation.

Seat Temperature Ratings

Use the published ranges as a material-selection reference and confirm suitability for the intended process conditions.

Seat material	Published min.–max.	Recommended operating range
EPDM	-40°F to 266°F	-4°F to 230°F
FKM	-4°F to 392°F	-4°F to 302°F
Silicone	-76°F to 392°F	-13°F to 284°F
