Stationary Spray Ball (SSB)
- 316L stainless steel stationary spray ball for tank cleaning.
- Choose 180° bottom, 180° top, or 360° spray coverage.
- Available in 1" and 1-1/2" tube OD sizes; see the dimensional and performance chart below.

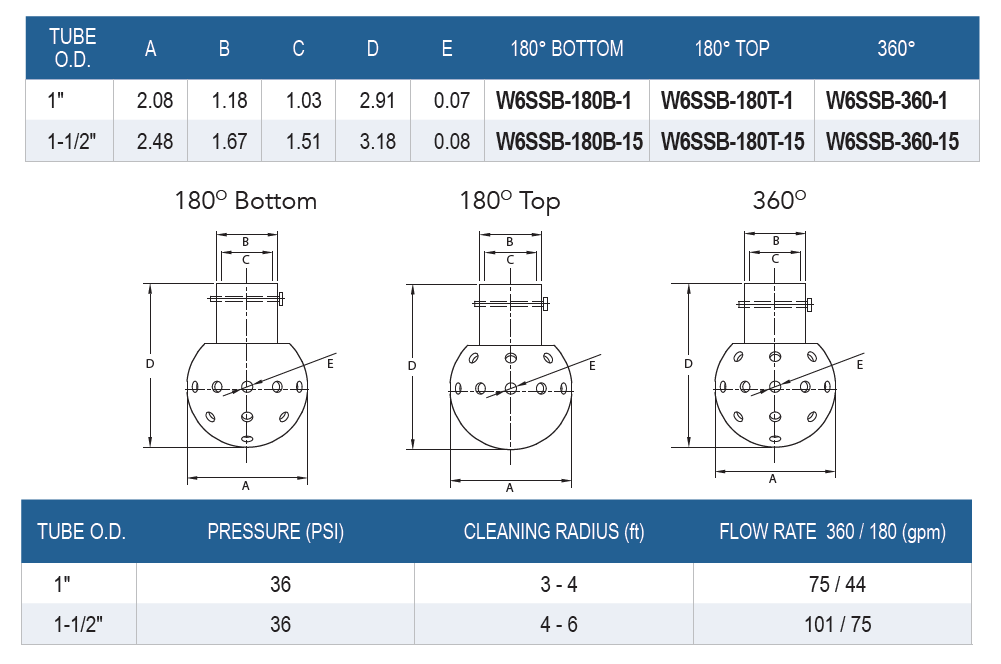

The SSB stationary spray ball is available in three spray patterns and two tube sizes. The Wayland reference chart below shows the dimensional callouts and operating data for each size.
Stationary Spray Ball
Click the chart to view the drawings, dimensions, flow rates, and cleaning radius at full size.
Size and Part Number Reference
Choose a spray pattern and tube size. Part numbers open the matching product variation above.
| Spray pattern | 1" tube OD | 1-1/2" tube OD |
|---|---|---|
| 180° bottom | W6SSB-180B-1 | W6SSB-180B-15 |
| 180° top | W6SSB-180T-1 | W6SSB-180T-15 |
| 360° | W6SSB-360-1 | W6SSB-360-15 |
Product Support & Distributor Inquiries
Review the listed connection size, dimensions and cleaning specifications for your tank assembly. Explore Spray Balls and related accessories, or contact Wayland for help identifying product documentation.
