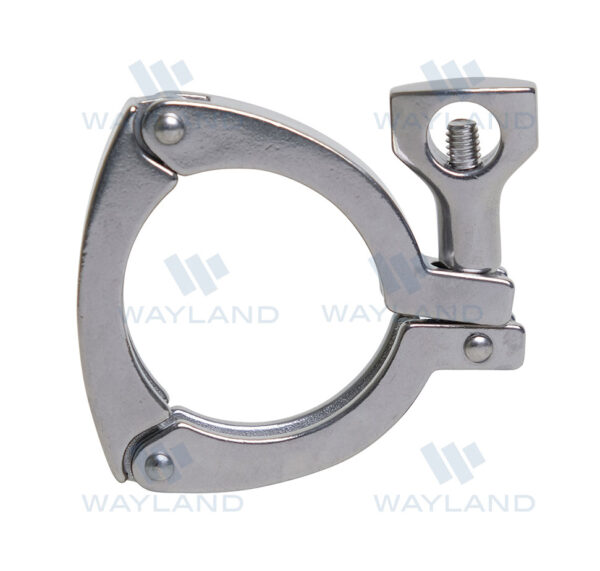

Three Segment Clamp (13MHM3P)
- Three-segment clamp configuration
- Designed for sanitary clamp connections
- Review the available product options above

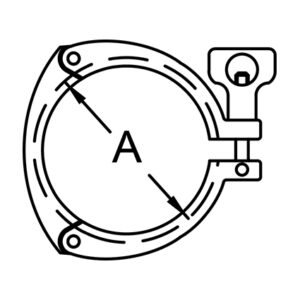

The 13MHM3P is a three-segment sanitary clamp. Review the existing product details and dimensional reference below when selecting the required configuration.
Three-segment Sanitary Clamp

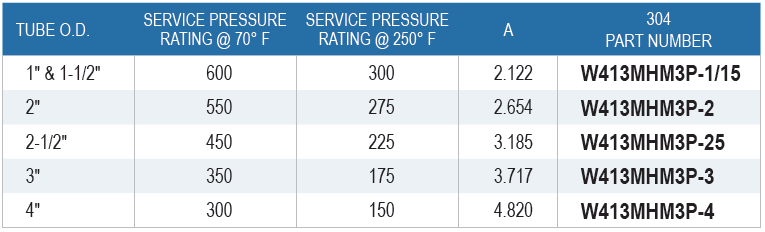

Size and Part Number Reference
Select a size. Each part number opens its matching product variation.
| Size | Part Number |
|---|---|
| 1" & 1-1/2" | W413MHM3P-1/15 |
| 2" | W413MHM3P-2 |
| 2-1/2" | W413MHM3P-25 |
| 3" | W413MHM3P-3 |
| 4" | W413MHM3P-4 |
Product Support & Distributor Inquiries
Confirm the connection style, size and alloy when planning your assembly. Explore clamp fittings and the sanitary fittings range, or contact Wayland for help identifying product documentation.
