Weld Hose Adapter (14WHR)

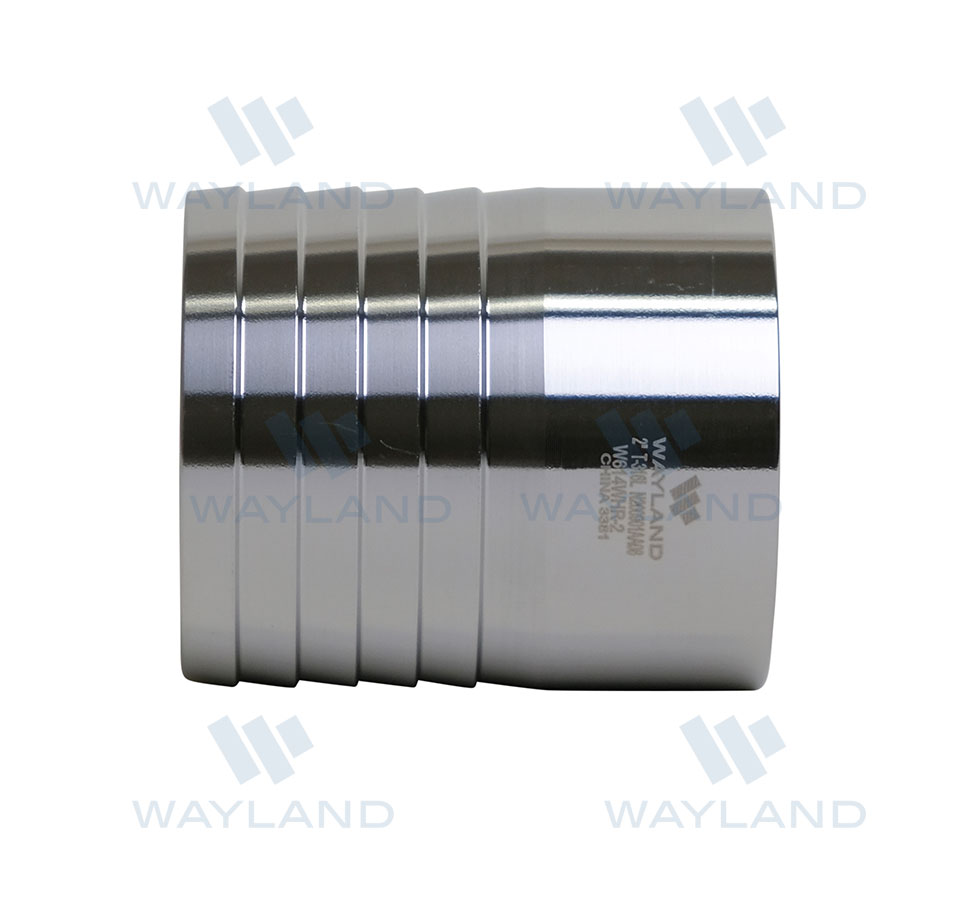

The 14WHR weld hose adapter connects a sanitary process line to a hose line. Select size below.
- Weld-end hose adapter configuration
- 316L stainless steel construction
- Eight size-specific STEP models listed below
- Download CAD/STEP Files
Wayland offers the 14WHR weld-end hose adapter in 316L stainless steel.

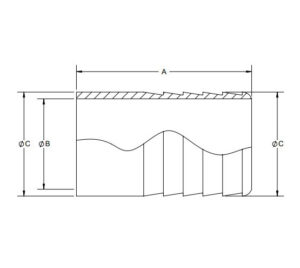

Weld-end Hose Adapter CAD Drawing
Official Wayland dimensional drawing. Click the image to view it larger; use the drawing PDF button above to open the full sheet.
STEP File Reference
Choose a size and alloy from the product options below. Part numbers link to the matching product variation.
8 models

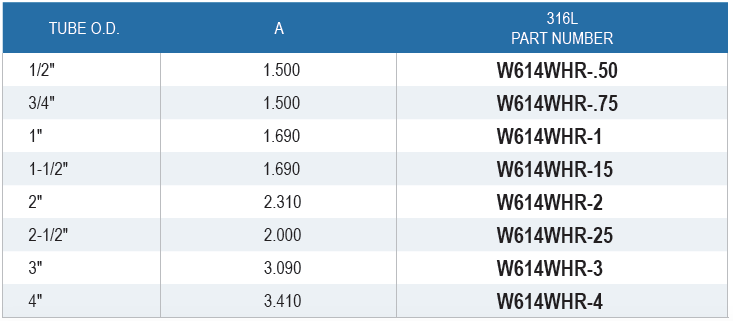

| Size | Part Number | STEP file |
|---|---|---|
| 1/2" | W614WHR-.50 | 14whr-.50.step |
| 3/4" | W614WHR-.75 | 14whr-.75.step |
| 1" | W614WHR-1 | 14whr-1.step |
| 1-1/2" | W614WHR-15 | 14whr-15 v1.step |
| 2" | W614WHR-2 | 14whr-2.step |
| 2-1/2" | W614WHR-25 | 14whr-25.step |
| 3" | W614WHR-3 | 14whr-3.step |
| 4" | W614WHR-4 | 14whr-4.step |
Product Support & Distributor Inquiries
Compare tube size, wall thickness and finish when planning a welded connection. Explore polished butt weld fittings and the sanitary fittings range, or contact Wayland for help identifying product documentation.
