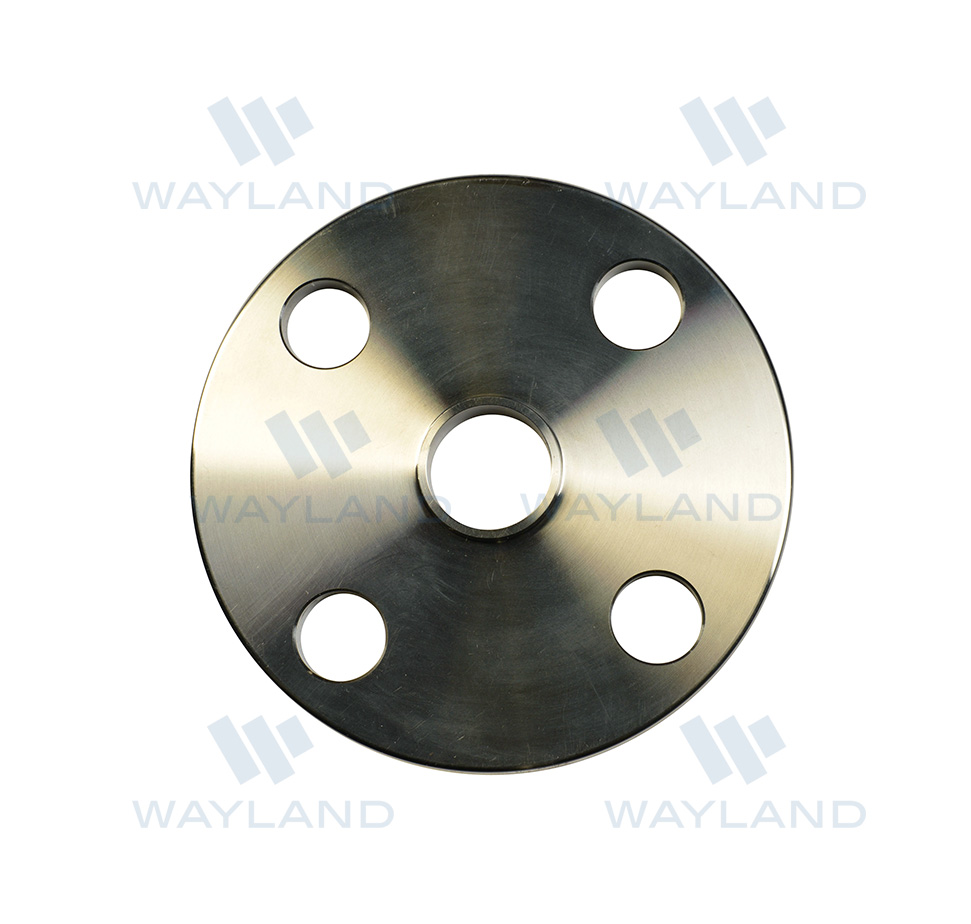

Weld Neck Flange (38W)
- Weld-neck flange for sanitary tubing.
- Available in 316L stainless steel.
- Choose a linked size and part number below.
- Download Product Drawings
The 38W weld-neck flange is available in 316L stainless steel. Compare the Wayland drawing with the size and part number reference to identify the variation you need.

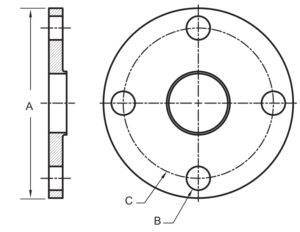

Weld-neck Flange CAD Drawing
Official Wayland dimensional drawing. Click the image to view the full sheet.
Open the full drawing PDF · View the original size chart · View the basic line drawing

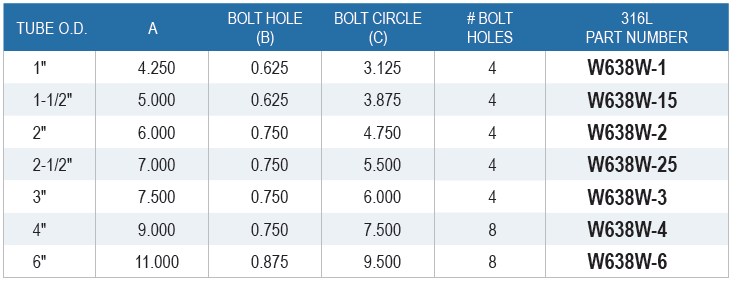

Size and Part Number Reference
Select a part number to open its matching product variation.
| Size | 316L part number | STEP file |
|---|---|---|
| 1″ | W638W-1 | 38W-1.STEP |
| 1-1/2″ | W638W-15 | 38W-15.STEP |
| 2″ | W638W-2 | 38W-2.STEP |
| 2-1/2″ | W638W-25 | 38W-25.STEP |
| 3″ | W638W-3 | 38W-3.STEP |
| 4″ | W638W-4 | 38W-4.STEP |
| 6″ | W638W-6 | 38W-6.STEP |
Product Support & Distributor Inquiries
Compare flange dimensions, connection size and alloy when planning your assembly. Explore Flanges and Stub Ends and related sanitary fittings, or contact Wayland for help identifying product documentation.
