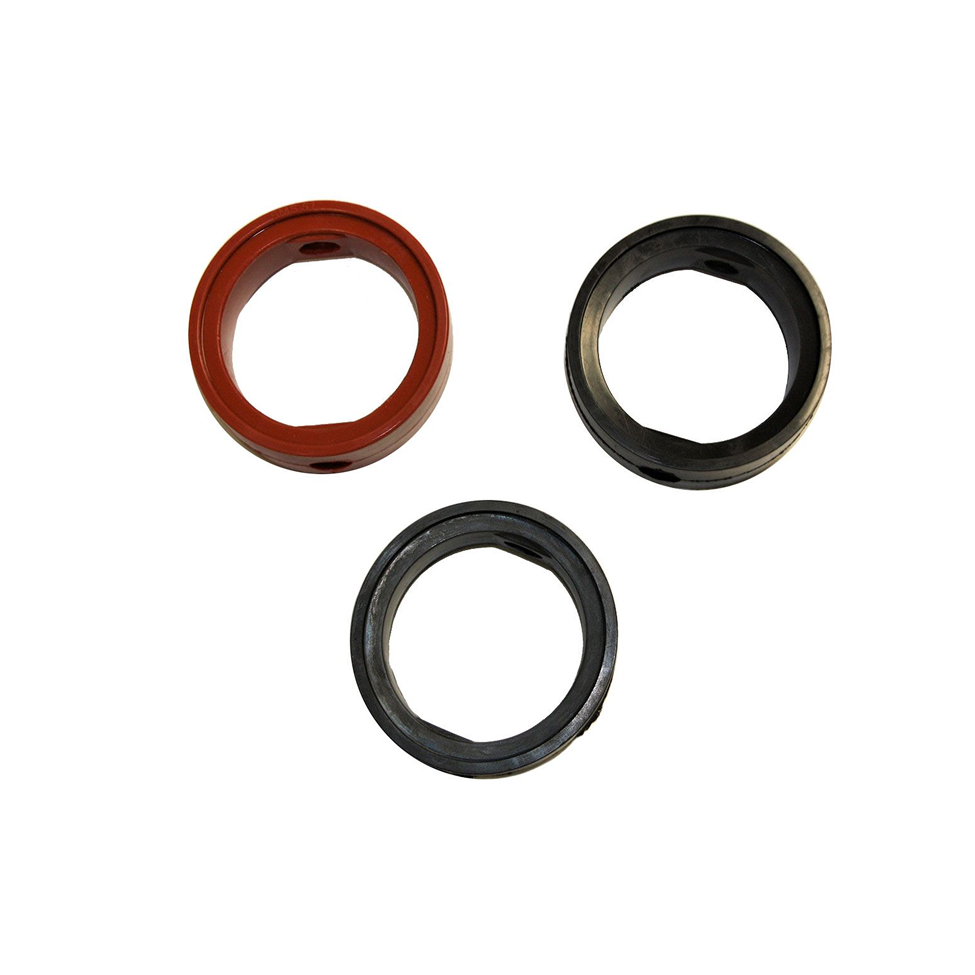

HX Series Butterfly Valve Replacement Seats (BFVHX-ST)

Replacement seats for Wayland HX Series butterfly valves
FDA-approved seat material options
EPDM in black for standard service
Silicone in red
FKM in brown
Size and material part numbers are cross-referenced in the HX specification sheet

View HX Series Replacement Seat Part Numbers (PDF) →

Clear

Add to RFQ Cart

HX Series Butterfly Valve Replacement Seats

Wayland BFVHX-ST replacement seats are available for HX Series butterfly valves in FDA-approved EPDM, silicone and FKM. Match the valve size and selected seat material to the application and valve configuration.

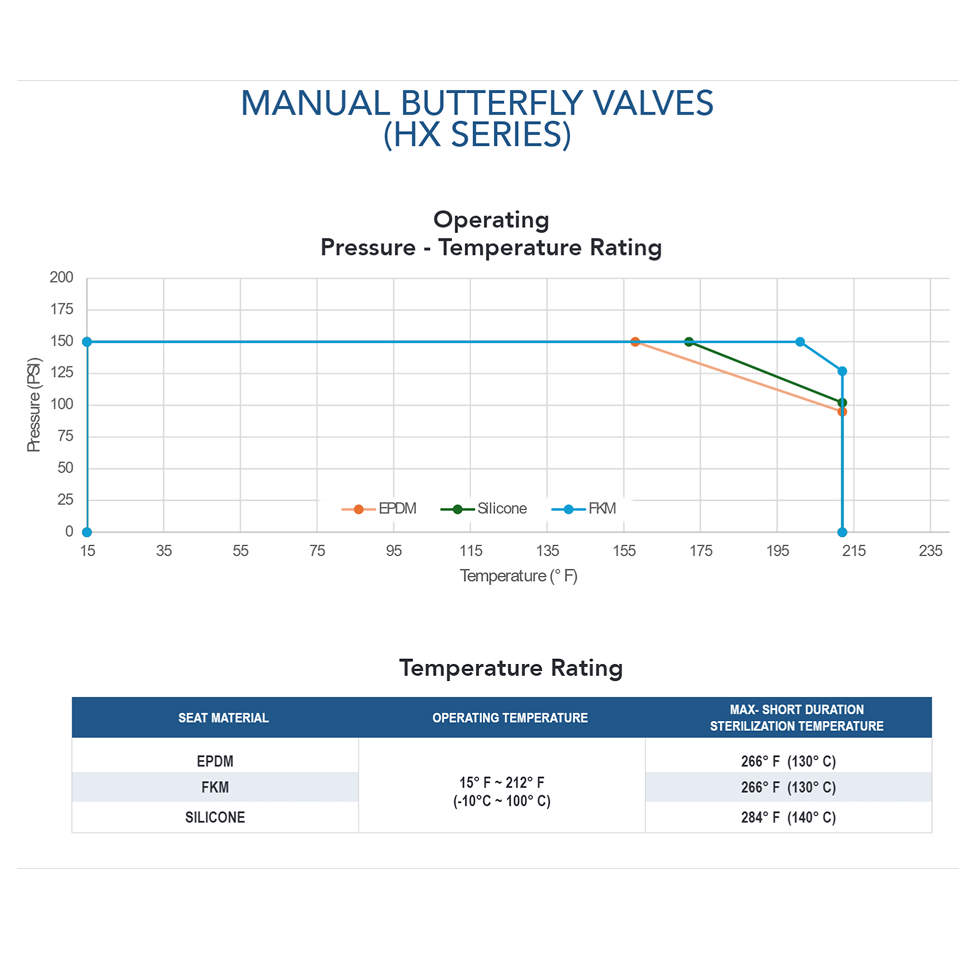

Seat Temperature Ratings

Seat material	Operating temperature	Maximum short-duration sterilization temperature
EPDM	15°F to 212°F (-10°C to 100°C)	266°F (130°C)
FKM	15°F to 212°F (-10°C to 100°C)	266°F (130°C)
Silicone	15°F to 212°F (-10°C to 100°C)	284°F (140°C)

Replacement Seat Part Numbers

HX Series replacement seat part numbers
Valve size	EPDM (black)	Silicone (red)	FKM (brown)
1/2″	WBFVHX-ST-E-.50	WBFVHX-ST-S-.50	WBFVHX-ST-V-.50
3/4″	WBFVHX-ST-E-.75	WBFVHX-ST-S-.75	WBFVHX-ST-V-.75
1″	WBFVHX-ST-E-1	WBFVHX-ST-S-1	WBFVHX-ST-V-1
1-1/2″	WBFVHX-ST-E-15	WBFVHX-ST-S-15	WBFVHX-ST-V-15
2″	WBFVHX-ST-E-2	WBFVHX-ST-S-2	WBFVHX-ST-V-2
2-1/2″	WBFVHX-ST-E-25	WBFVHX-ST-S-25	WBFVHX-ST-V-25
3″	WBFVHX-ST-E-3	WBFVHX-ST-S-3	WBFVHX-ST-V-3
4″	WBFVHX-ST-E-4	WBFVHX-ST-S-4	WBFVHX-ST-V-4
6″	WBFVHX-ST-E-6	WBFVHX-ST-S-6	WBFVHX-ST-V-6

Product Support & Distributor Inquiries

Match the valve series, size and listed part number before selecting replacement parts. Explore Butterfly Valves and the sanitary valve range, or contact Wayland for help identifying product documentation.
