Repair Kits

Repair kits for Wayland standard butterfly valves
Each kit contains one 316L disc, one seat and two bushings
Compatible with 304 stainless steel valves
EPDM, silicone and FKM seat options
Size-specific ordering references are listed in the specification sheet

Alloy

Clear

Add to RFQ Cart

Standard Butterfly Valve Repair Kits

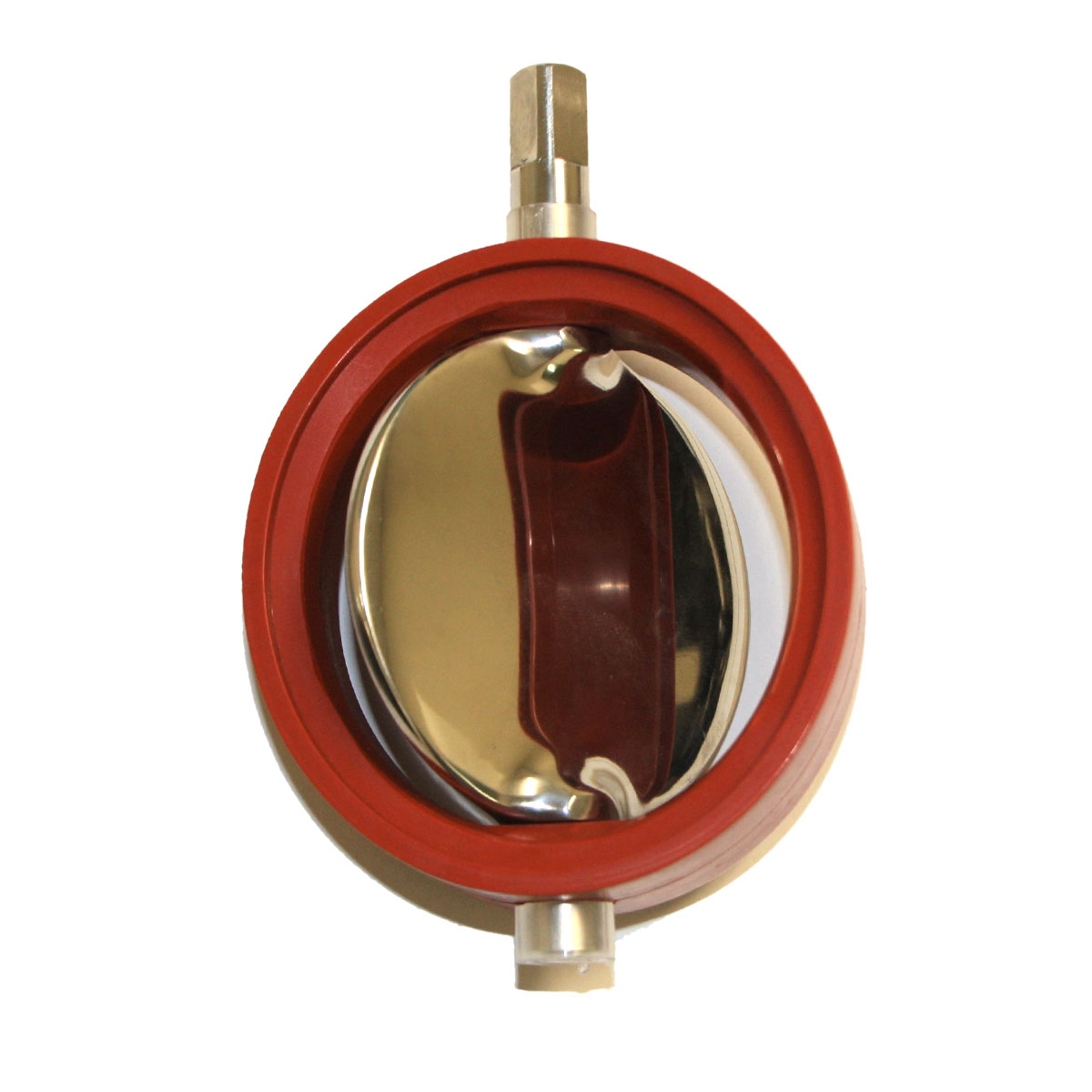

Wayland BFV-RK kits provide the principal replacement components used to service standard sanitary butterfly valves. Each kit includes one 316L stainless steel disc, one seat and two bushings. The 316L disc is compatible with Wayland 304 stainless steel valves.

Kit Contents

One 316L stainless steel valve disc
One EPDM, silicone or FKM seat
Two replacement bushings
Size-specific kit for the matching valve

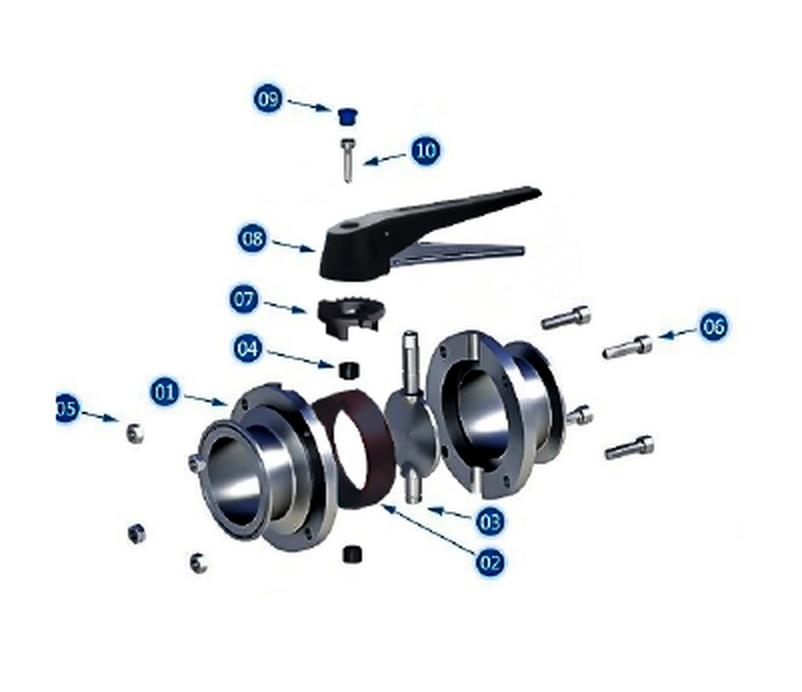

Exploded parts diagram for a Wayland standard butterfly valve

Repair Kit Part Numbers

Valve size	EPDM	Silicone	FKM
1/2″	W6BFV-RK-E-.50	W6BFV-RK-S-.50	W6BFV-RK-V-.50
3/4″	W6BFV-RK-E-.75	W6BFV-RK-S-.75	W6BFV-RK-V-.75
1″	W6BFV-RK-E-1	W6BFV-RK-S-1	W6BFV-RK-V-1
1-1/2″	W6BFV-RK-E-15	W6BFV-RK-S-15	W6BFV-RK-V-15
2″	W6BFV-RK-E-2	W6BFV-RK-S-2	W6BFV-RK-V-2
2-1/2″	W6BFV-RK-E-25	W6BFV-RK-S-25	W6BFV-RK-V-25
3″	W6BFV-RK-E-3	W6BFV-RK-S-3	W6BFV-RK-V-3
4″	W6BFV-RK-E-4	W6BFV-RK-S-4	W6BFV-RK-V-4
6″	W6BFV-RK-E-6	W6BFV-RK-S-6	W6BFV-RK-V-6
8″	W6BFV-RK-E-8	W6BFV-RK-S-8	W6BFV-RK-V-8

Product Support & Distributor Inquiries

Match the valve series, size and listed part number before selecting replacement parts. Explore Butterfly Valves and the sanitary valve range, or contact Wayland for help identifying product documentation.
