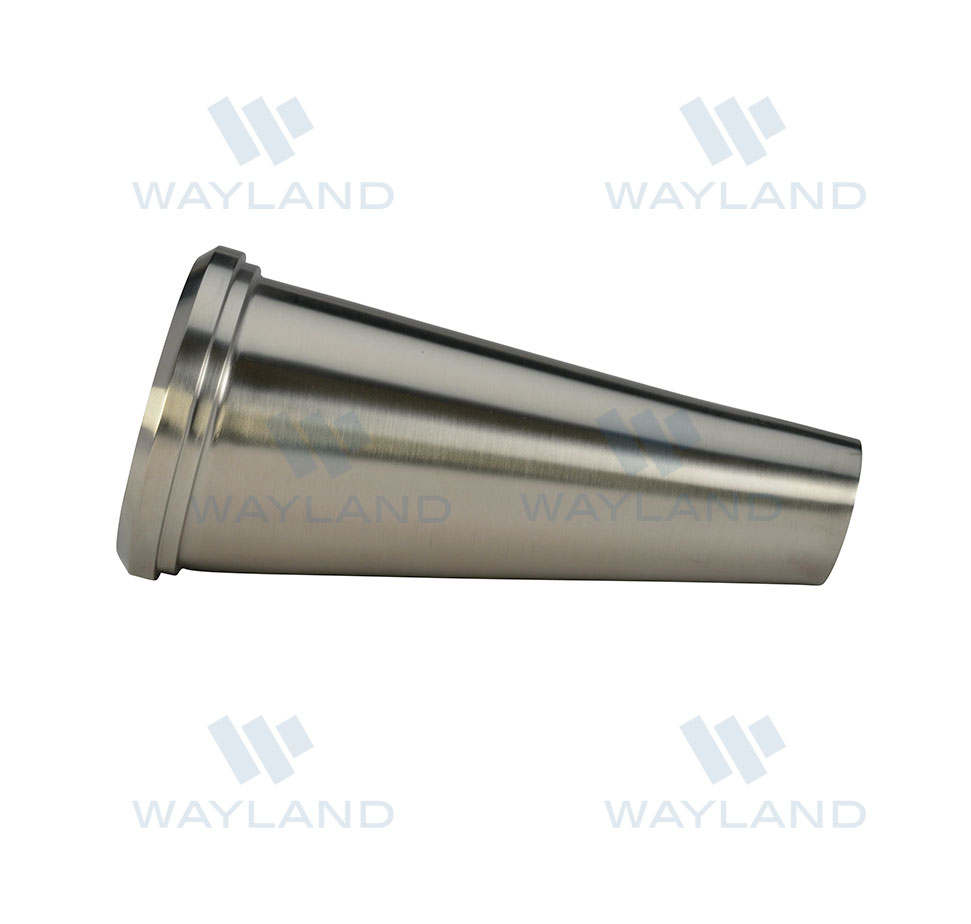

Plain Bevel Seat x Weld Eccentric Reducer (32P)
- Plain Bevel Seat x Weld Eccentric Reducer for sanitary process connections
- Stainless steel options: 304 and 316L
- Available sizes: 12 listed size options
- Selection reference: existing product graphic and linked size and part-number table below
Wayland offers the 32P plain bevel seat to weld eccentric reducer in 304 or 316L stainless steel. Use the existing product graphic and linked part-number table to identify the required configuration.

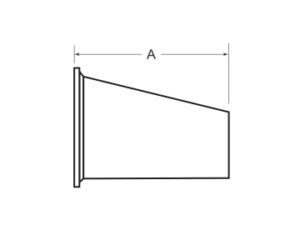

Plain Bevel Seat Reducer Reference
Existing product drawing or sizing graphic. Click to view it at full size.

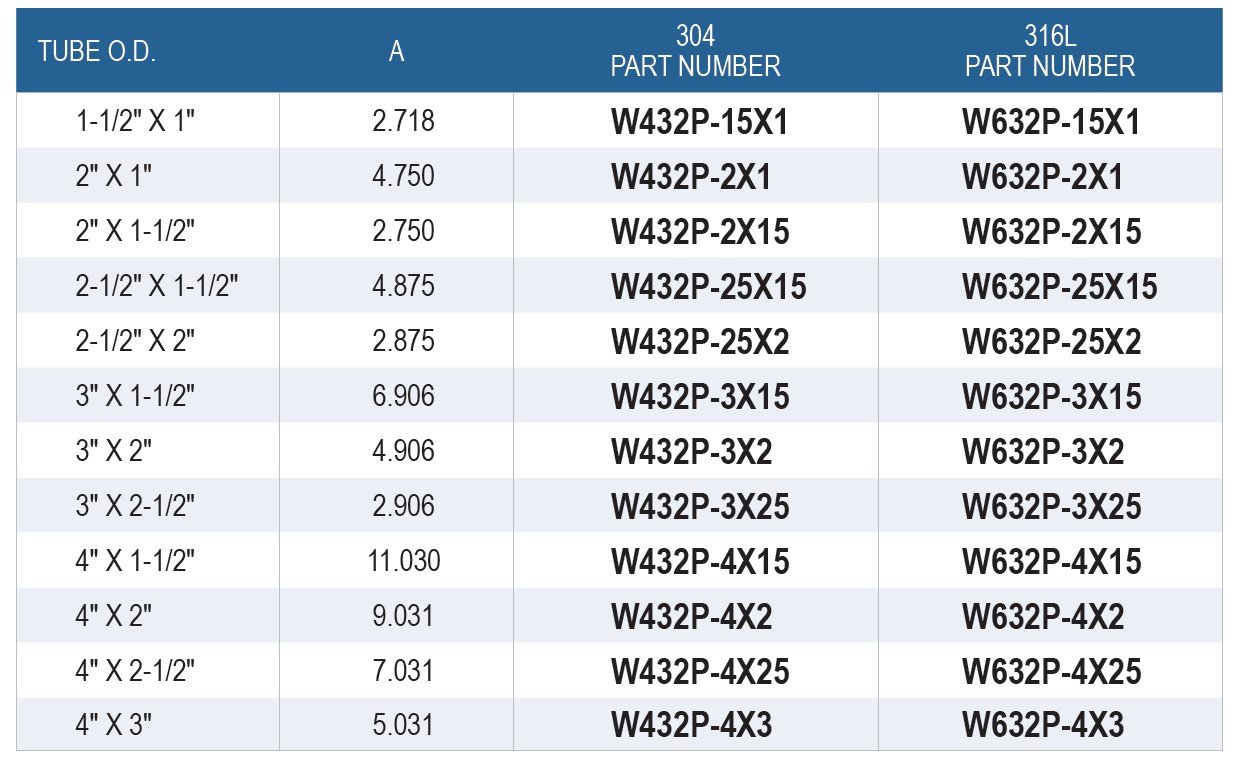

Size and Part Number Reference
Choose a size and alloy. Each part number opens the matching product variation.
| Size | Part Number |
|---|---|
| 1-1/2″ X 1″ | 304: W432P-15X1 316L: W632P-15X1 |
| 2″ X 1″ | 304: W432P-2X1 316L: W632P-2X1 |
| 2″ X 1-1/2″ | 304: W432P-2X15 316L: W632P-2X15 |
| 2-1/2″ X 1-1/2″ | 304: W432P-25X15 316L: W632P-25X15 |
| 2-1/2″ X 2″ | 304: W432P-25X2 316L: W632P-25X2 |
| 3″ X 1-1/2″ | 304: W432P-3X15 316L: W632P-3X15 |
| 3″ X 2″ | 304: W432P-3X2 316L: W632P-3X2 |
| 3″ X 2-1/2″ | 304: W432P-3X25 316L: W632P-3X25 |
| 4″ X 1-1/2″ | 304: W432P-4X15 316L: W632P-4X15 |
| 4″ X 2″ | 304: W432P-4X2 316L: W632P-4X2 |
| 4″ X 2-1/2″ | 304: W432P-4X25 316L: W632P-4X25 |
| 4″ X 3″ | 304: W432P-4X3 316L: W632P-4X3 |
Product Support & Distributor Inquiries
Confirm the connection style, size and alloy when planning your assembly. Explore bevel seat fittings and the sanitary fittings range, or contact Wayland for help identifying product documentation.
