Threaded Bevel Seat x Plain Bevel With Hex Nut Concentric Reducer (31TP)
- Threaded Bevel Seat x Plain Bevel With Hex Nut Concentric Reducer for sanitary process connections
- Stainless steel options: 304 and 316L
- Available sizes: 6 listed size options
- Selection reference: existing product graphic and linked size and part-number table below
Wayland offers the 31TP threaded to plain bevel seat concentric reducer with hex nut in 304 or 316L stainless steel. Use the existing product graphic and linked part-number table to identify the required configuration.

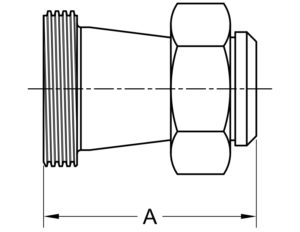

Bevel Seat Concentric Reducer Reference
Existing product drawing or sizing graphic. Click to view it at full size.

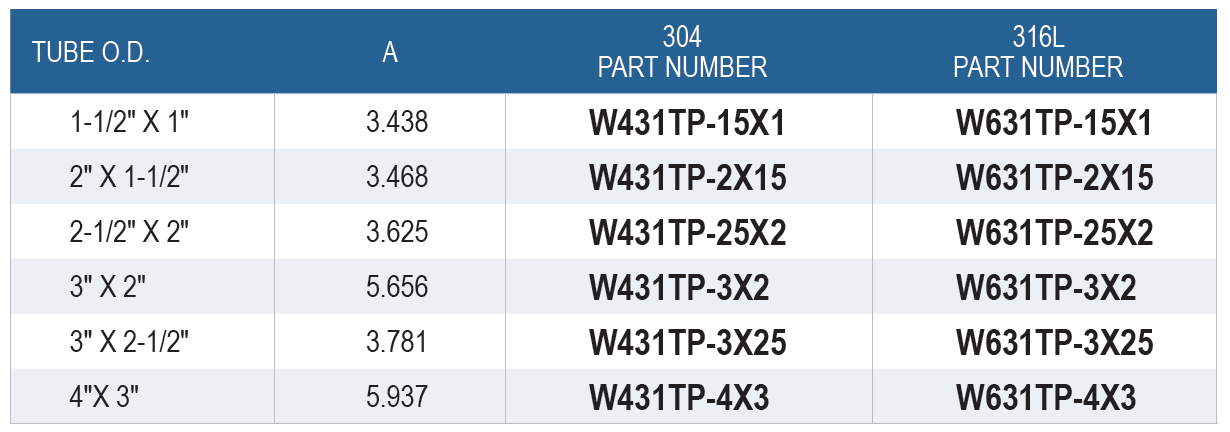

Size and Part Number Reference
Choose a size and alloy. Each part number opens the matching product variation.
| Size | Part Number |
|---|---|
| 1-1/2″ X 1″ | 304: W431TP-15X1 316L: W631TP-15X1 |
| 2″ X 1-1/2″ | 304: W431TP-2X15 316L: W631TP-2X15 |
| 2-1/2″ X 2″ | 304: W431TP-25X2 316L: W631TP-25X2 |
| 3″ X 2″ | 304: W431TP-3X2 316L: W631TP-3X2 |
| 3″ X 2-1/2″ | 304: W431TP-3X25 316L: W631TP-3X25 |
| 4″ X 3″ | 304: W431TP-4X3 316L: W631TP-4X3 |
Product Support & Distributor Inquiries
Confirm the connection style, size and alloy when planning your assembly. Explore bevel seat fittings and the sanitary fittings range, or contact Wayland for help identifying product documentation.
