Solid End Cap (16AMP)


  • Solid End Cap for sanitary process connections
  • Stainless steel alloy: 304, 316L
  • Available sizes: 11 listed size options
  • Technical reference: Wayland dimensional drawing and linked size and part-number table below
  • Download CAD/STEP Files

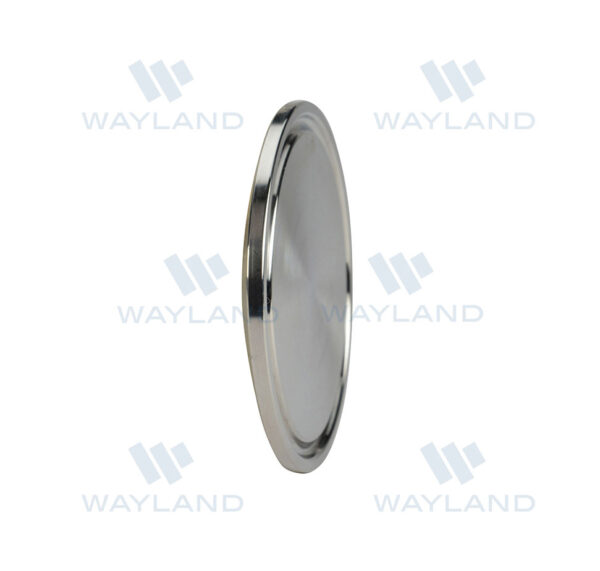

Wayland offers the 16AMP solid end cap in 304 or 316L stainless steel for sanitary process connections.

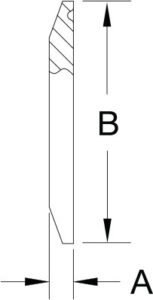

Solid End Cap CAD Drawing

Official Wayland dimensional drawing. Click the image to view it larger; use the drawing PDF button above to open the full sheet.

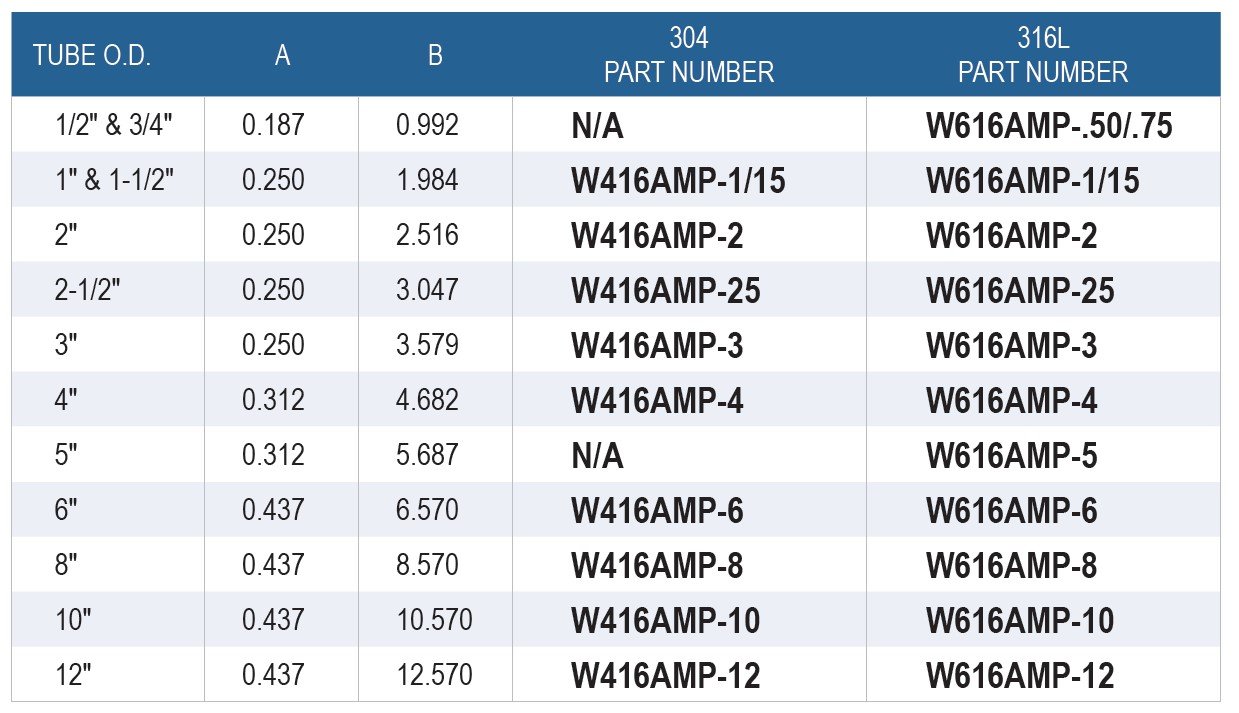

Official Wayland 16AMP dimensional drawing and size chart

STEP File Reference

Choose a size and alloy from the product options below. Part numbers link to the matching product variation.

11 models

Size / connection Part Number STEP file
1/2″ & 3/4″ W616AMP-.50/.75 16amp-0.5&0.75.step
1″ & 1-1/2″ 304: W416AMP-1/15
316L: W616AMP-1/15
16amp-1×15.step
2″ 304: W416AMP-2
316L: W616AMP-2
16amp-2.step
2-1/2″ 304: W416AMP-25
316L: W616AMP-25
16amp-25.step
3″ 304: W416AMP-3
316L: W616AMP-3
16amp-3.step
4″ 304: W416AMP-4
316L: W616AMP-4
16amp-4.step
5″ W616AMP-5 16amp-5.step
6″ 304: W416AMP-6
316L: W616AMP-6
16amp-6.step
8″ 304: W416AMP-8
316L: W616AMP-8
16amp-8.step
10″ 304: W416AMP-10
316L: W616AMP-10
16amp-10.step
12″ 304: W416AMP-12
316L: W616AMP-12
16amp-12.step

Product Support & Distributor Inquiries

Confirm the connection style, size and alloy when planning your assembly. Explore clamp fittings and the sanitary fittings range, or contact Wayland for help identifying product documentation.
