Thermometer Cap (23BMP)
- Thermometer Cap for sanitary process connections
- Stainless steel alloy: 304, 316L
- Available sizes: 13 listed size options

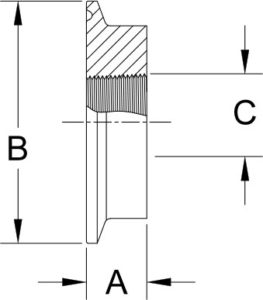

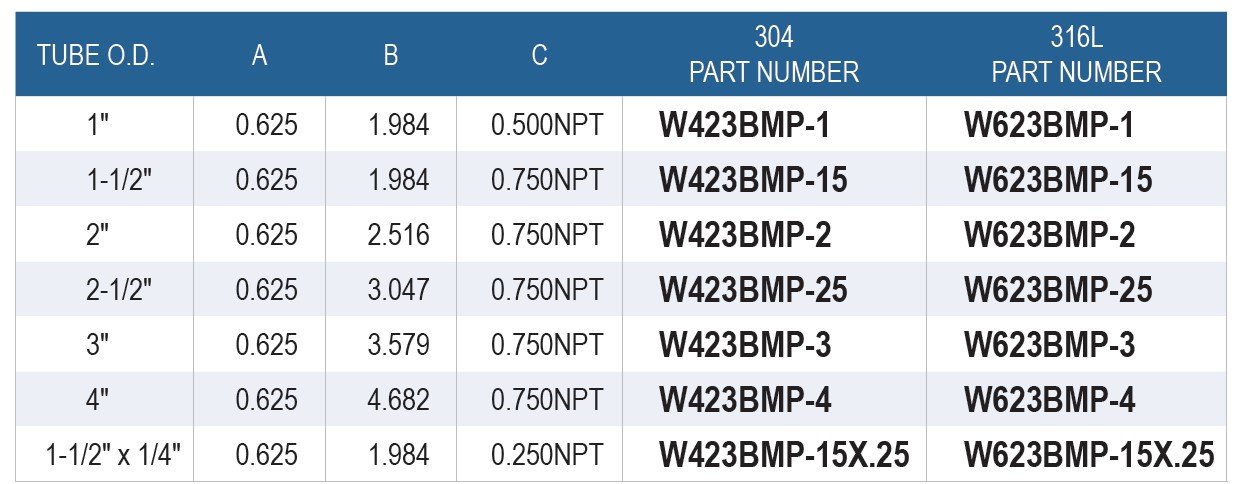

- Technical reference: Wayland dimensional drawing and linked size and part-number table below
- Download CAD/STEP Files

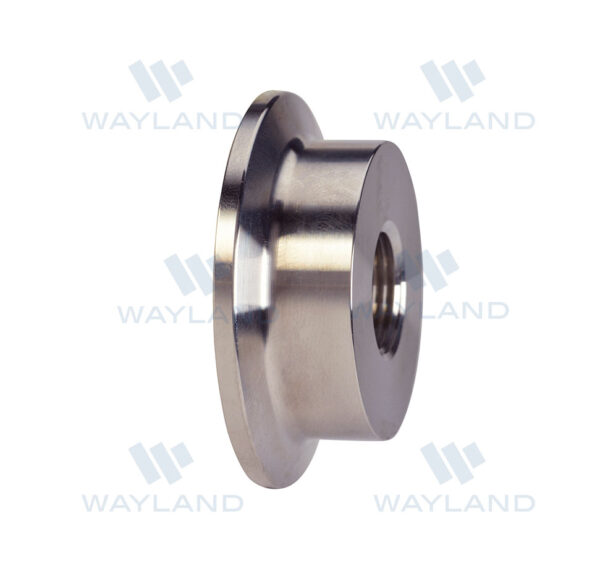

Wayland offers the 23BMP thermometer cap in 304 or 316L stainless steel.
STEP File Reference
Choose a size and alloy from the product options below. Part numbers link to the matching product variation.
11 models
| Size / connection | Part Number | STEP file |
|---|---|---|
| 1/2″ X 1/4″ | 304: W423BMP-.50X.25 316L: W623BMP-.50X.25 |
23bmp-.50x.25.step |
| 3/4″ X 1/4″ | 304: W423BMP-.75X.25 316L: W623BMP-.75X.25 |
23bmp-.75x.25.step |
| 1″ X 1/2″ | 304: W423BMP-1X.50 316L: W623BMP-1X.50 |
23bmp-1x.50.step |
| 1-1/2″ X 1/4″ | 304: W423BMP-15X.25 316L: W623BMP-15X.25 |
23bmp-15x.25.step |
| 1-1/2″ X 3/8″ | W423BMP-15X.375 | 23bmp-15x.375.step |
| 1-1/2″ X 1/2″ | W423BMP-15X.50 | 23bmp-15x.50.step |
| 1-1/2″ X 3/4″ | 304: W423BMP-15X.75 316L: W623BMP-15X.75 |
23bmp-15x.75.step |
| 2″ X 3/4″ | 304: W423BMP-2X.75 316L: W623BMP-2X.75 |
23bmp-2x.75.step |
| 2-1/2″ X 3/4″ | 304: W423BMP-25X.75 316L: W623BMP-25X.75 |
23bmp-25x.75.step |
| 3″ X 3/4″ | 304: W423BMP-3X.75 316L: W623BMP-3X.75 |
23bmp-3x.75.step |
| 4″ X 3/4″ | 304: W423BMP-4X.75 316L: W623BMP-4X.75 |
23bmp-4x.75.step |
Product Support & Distributor Inquiries
Confirm the connection style, size and alloy when planning your assembly. Explore clamp fittings and the sanitary fittings range, or contact Wayland for help identifying product documentation.
