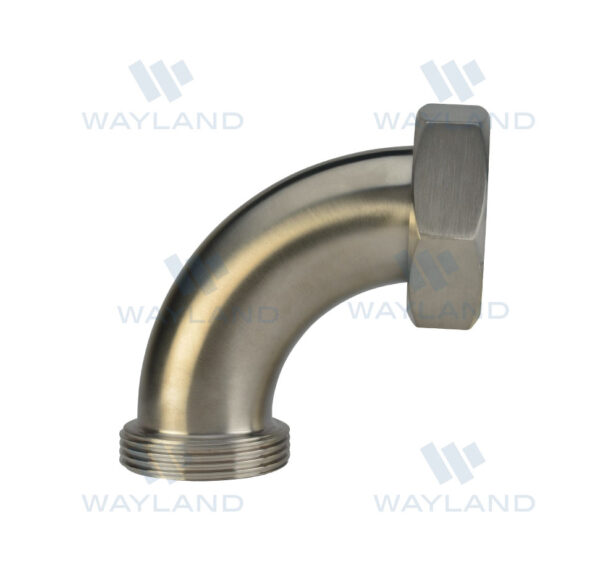

Threaded Bevel Seat x Plain Bevel Seat With Hex Nut 90° Elbow (2F)


  • Threaded Bevel Seat x Plain Bevel Seat With Hex Nut 90° Elbow for sanitary process connections
  • Stainless steel options: 304 and 316L
  • Available sizes: 6 listed size options
  • Selection reference: existing product graphic and linked size and part-number table below






Wayland offers the 2F 90° elbow joins a threaded bevel seat to a plain bevel seat with hex nut. Use the existing product graphic and linked part-number table to identify the required configuration.

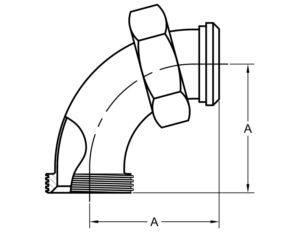

Bevel Seat Elbow Reference

Existing product drawing or sizing graphic. Click to view it at full size.

2F existing product drawing or sizing reference

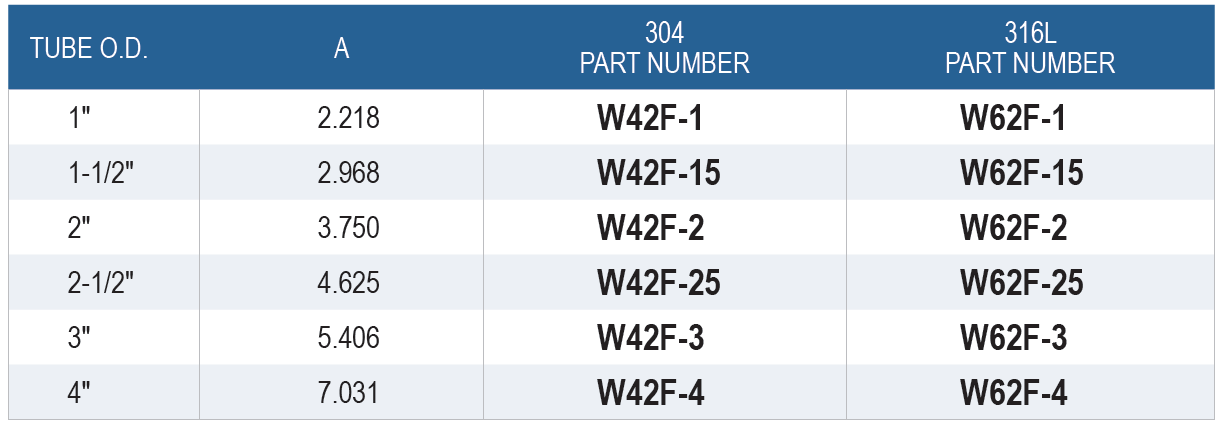

Size and Part Number Reference

Choose a size and alloy. Each part number opens the matching product variation.

Size Part Number
1″ 304: W42F-1
316L: W62F-1
1-1/2″ 304: W42F-15
316L: W62F-15
2″ 304: W42F-2
316L: W62F-2
2-1/2″ 304: W42F-25
316L: W62F-25
3″ 304: W42F-3
316L: W62F-3
4″ 304: W42F-4
316L: W62F-4

Product Support & Distributor Inquiries

Confirm the connection style, size and alloy when planning your assembly. Explore bevel seat fittings and the sanitary fittings range, or contact Wayland for help identifying product documentation.
