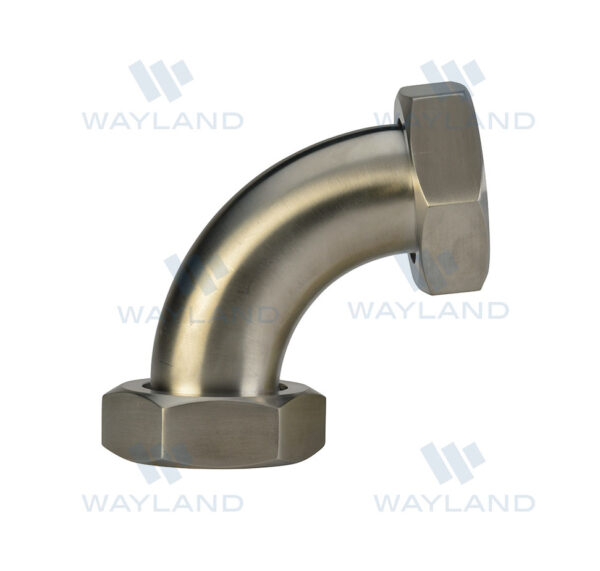

Plain Bevel Seat With Hex Nut x Plain Bevel Seat With Hex Nut 90° Elbow (2E)
- Plain Bevel Seat With Hex Nut x Plain Bevel Seat With Hex Nut 90° Elbow for sanitary process connections
- Stainless steel options: 304 and 316L
- Available sizes: 6 listed size options
- Selection reference: existing product graphic and linked size and part-number table below
Wayland offers the 2E 90° plain bevel seat elbow with hex nuts in 304 or 316L stainless steel. Use the existing product graphic and linked part-number table to identify the required configuration.

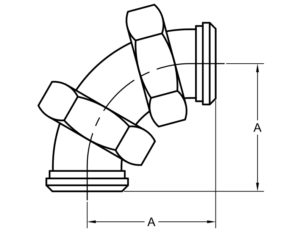

Plain Bevel Seat Elbow Reference
Existing product drawing or sizing graphic. Click to view it at full size.

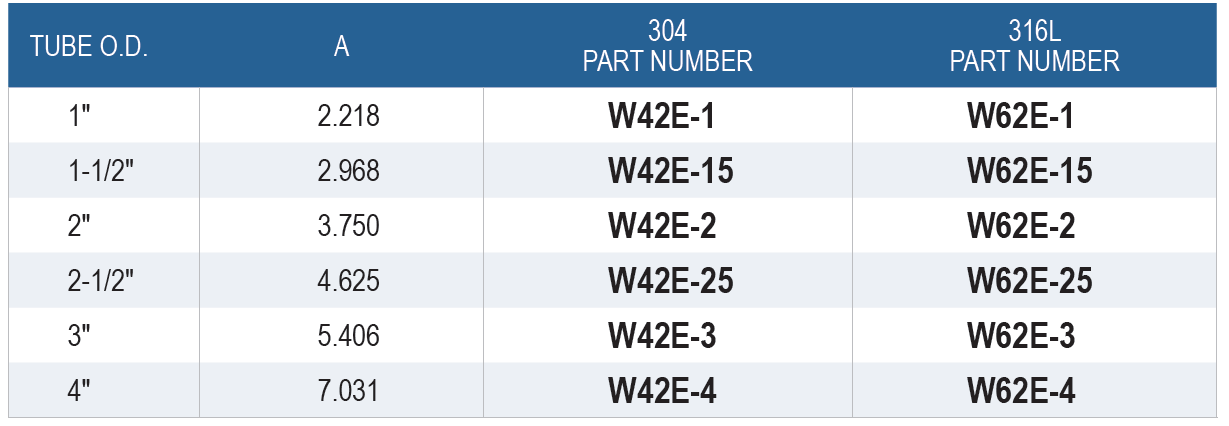

Size and Part Number Reference
Choose a size and alloy. Each part number opens the matching product variation.
| Size | Part Number |
|---|---|
| 1″ | 304: W42E-1 316L: W62E-1 |
| 1-1/2″ | 304: W42E-15 316L: W62E-15 |
| 2″ | 304: W42E-2 316L: W62E-2 |
| 2-1/2″ | 304: W42E-25 316L: W62E-25 |
| 3″ | 304: W42E-3 316L: W62E-3 |
| 4″ | 304: W42E-4 316L: W62E-4 |
Product Support & Distributor Inquiries
Confirm the connection style, size and alloy when planning your assembly. Explore bevel seat fittings and the sanitary fittings range, or contact Wayland for help identifying product documentation.
