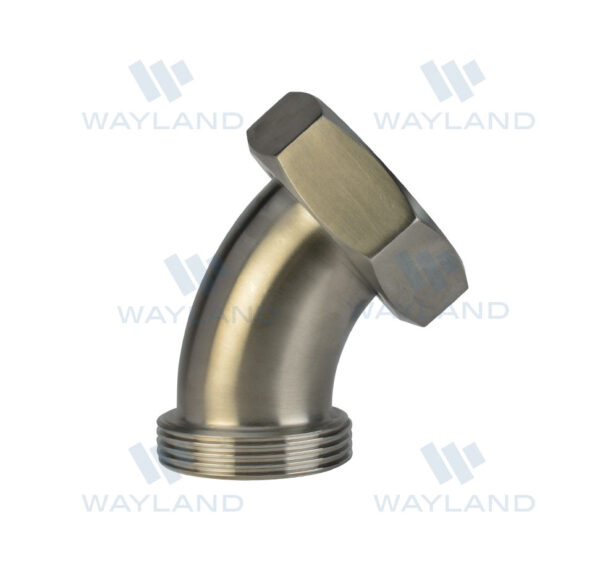

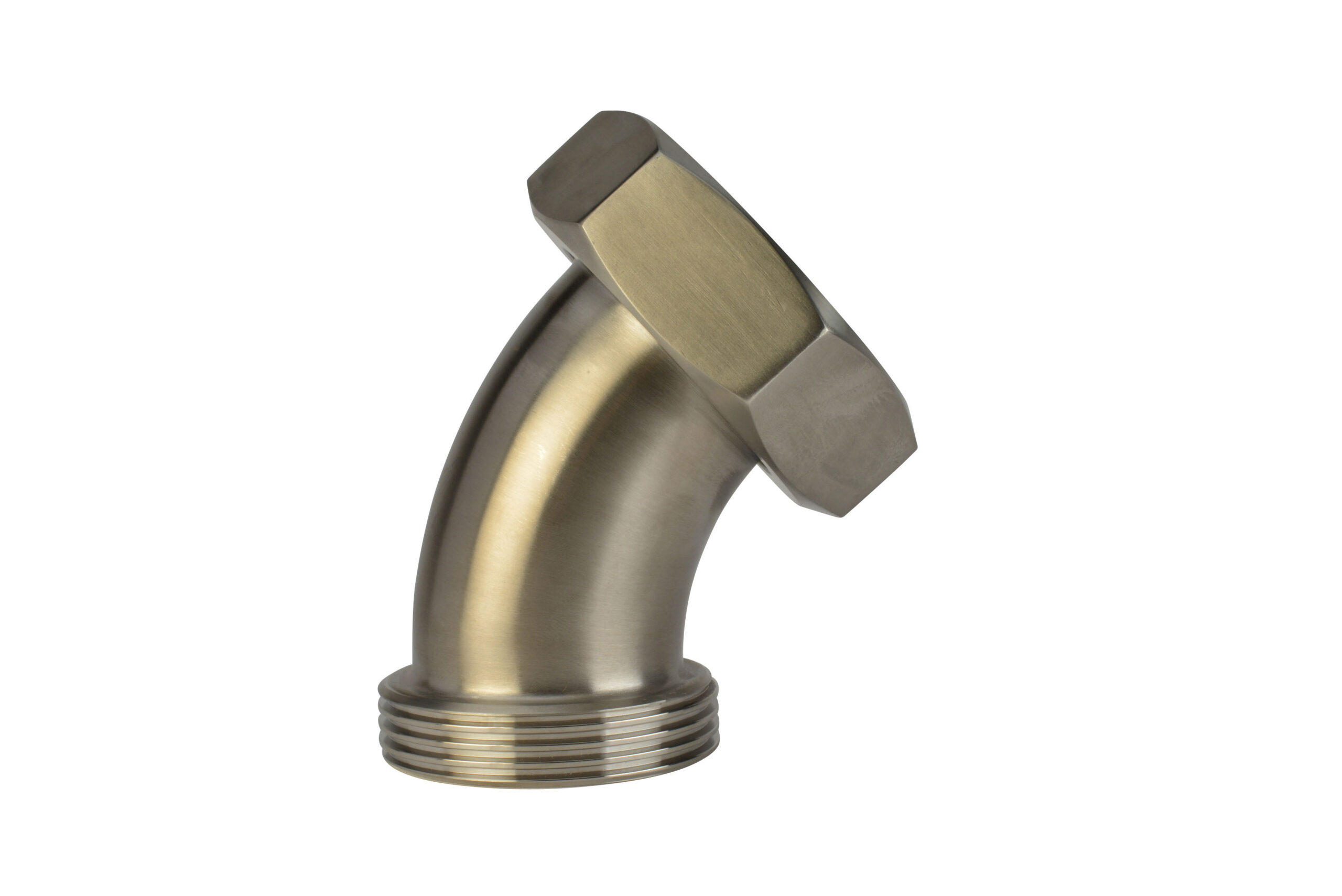

Plain Bevel Seat With Hex Nut x Threaded Bevel Seat 45° Elbow (2P)
- Plain Bevel Seat With Hex Nut x Threaded Bevel Seat 45° Elbow for sanitary process connections
- Stainless steel options: 304 and 316L
- Available sizes: 6 listed size options
- Selection reference: existing product graphic and linked size and part-number table below
Wayland offers the 2P 45° elbow joins a plain bevel seat with hex nut to a threaded bevel seat. Use the existing product graphic and linked part-number table to identify the required configuration.

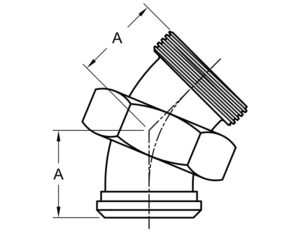

45° Bevel Seat Elbow Reference
Existing product drawing or sizing graphic. Click to view it at full size.

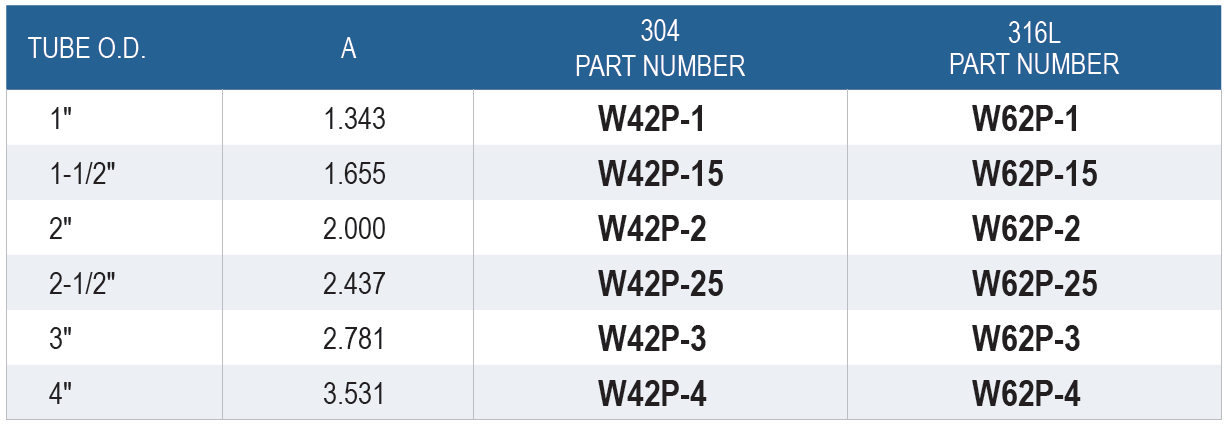

Size and Part Number Reference
Choose a size and alloy. Each part number opens the matching product variation.
| Size | Part Number |
|---|---|
| 1″ | 304: W42P-1 316L: W62P-1 |
| 1-1/2″ | 304: W42P-15 316L: W62P-15 |
| 2″ | 304: W42P-2 316L: W62P-2 |
| 2-1/2″ | 304: W42P-25 316L: W62P-25 |
| 3″ | 304: W42P-3 316L: W62P-3 |
| 4″ | 304: W42P-4 316L: W62P-4 |
Product Support & Distributor Inquiries
Confirm the connection style, size and alloy when planning your assembly. Explore bevel seat fittings and the sanitary fittings range, or contact Wayland for help identifying product documentation.
Related products
-

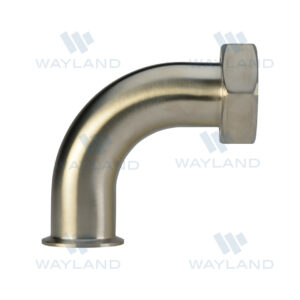

Clamp x Plain Bevel Seat 90 Elbow With Hex Nut (2FMP-14)
Select options This product has multiple variants. The options may be chosen on the product page -
Clamp x Threaded Bevel Seat 90 Elbow (2FMP-15)
Select options This product has multiple variants. The options may be chosen on the product page -

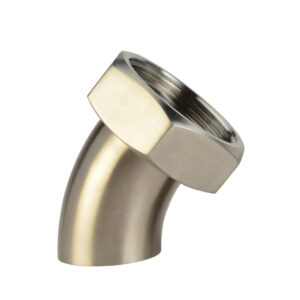

45° Weld x Plain Bevel Seat With Hex Nut (2KP)
