Sample Valve (SVW)



  • 304 stainless steel construction
  • Clamp, butt-weld and NPT configurations
  • PTFE seat and double silicone O-rings
  • 200 PSI pressure rating
  • 300°F temperature rating
  • Hose-barb sample port


SKU: SVW Categories: ,






Sanitary Sample Valve

Wayland SVW sample valves provide a compact, manually operated sampling point for sanitary process systems. The family includes 1-inch clamp and butt-weld styles plus a 3/8-inch NPT style, each with a hose-barb sample port.

Features

  • 304 stainless steel construction
  • PTFE seat with double silicone O-rings
  • 200 PSI maximum pressure rating
  • 300°F maximum temperature rating
  • Hose-barb sample port for process sampling

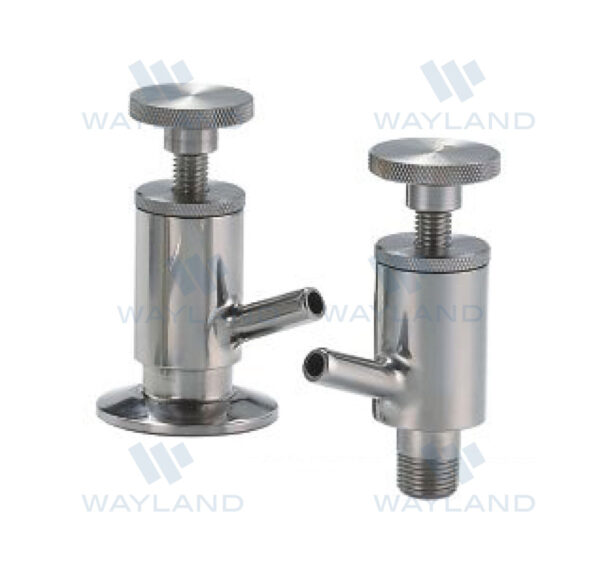

Connection Styles

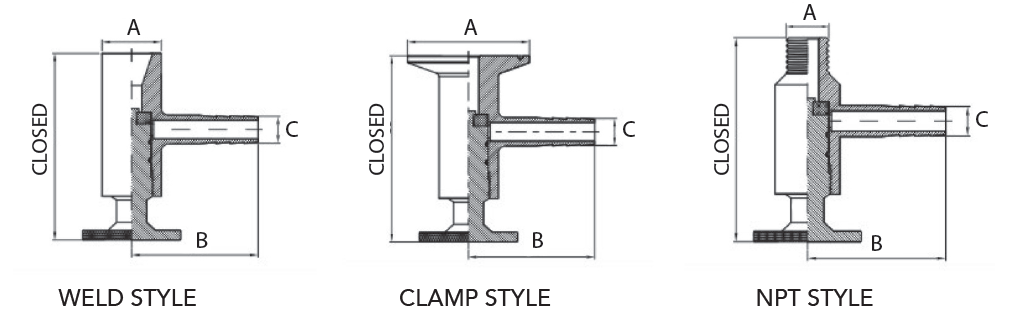

Sample valve dimension drawings and product views for butt-weld, clamp, and NPT styles

Dimensions & Configurations

All listed configurations use 304 stainless steel and a PTFE seat. Dimensions are in inches; weight is in pounds.

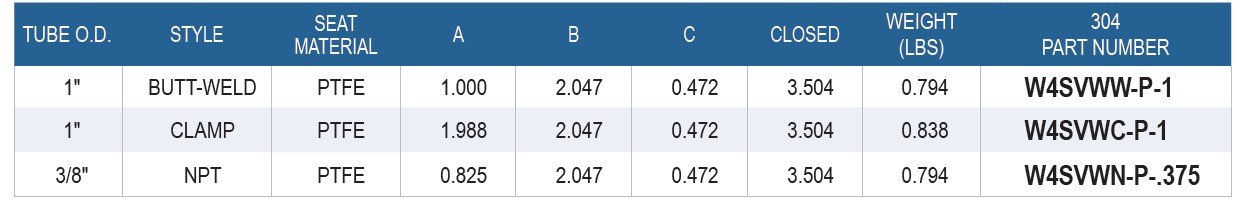

Size Connection Dimensions (in.) Weight (lb.) Part no.
1" Butt-weld A 1.00 / B 2.05
C 0.47 / Closed 3.50
0.794 W4SVWW-P-1
1" Clamp A 1.99 / B 2.05
C 0.47 / Closed 3.50
0.838 W4SVWC-P-1
3/8" NPT A 0.67 / B 2.05
C 0.47 / Closed 3.50
0.794 W4SVWN-P-.375

STEP Files

Available STEP model for the 1-inch clamp configuration.

Size / connection Part Number STEP file
1" / Clamp W4SVWC-P-1 W4SVWC-P-1.STEP

How to Order

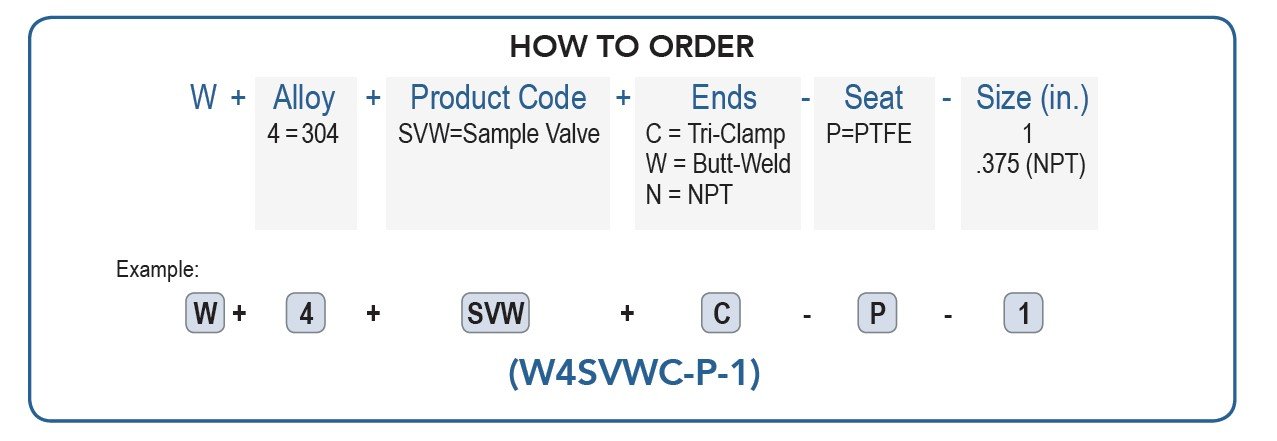

Part number format: W + alloy code (4 = 304) + product code (SVW) + connection (C = Tri-Clamp, W = Butt-Weld, N = NPT) + seat (P = PTFE) + nominal size.

Example: W4SVWC-P-1 is a 1-inch, 304 stainless steel, Tri-Clamp sample valve with a PTFE seat.

Product Support & Distributor Inquiries

Compare connection type, size, alloy and operating requirements when selecting a valve. Explore Sample Valve and the sanitary valve range, or contact Wayland for help identifying product documentation.
